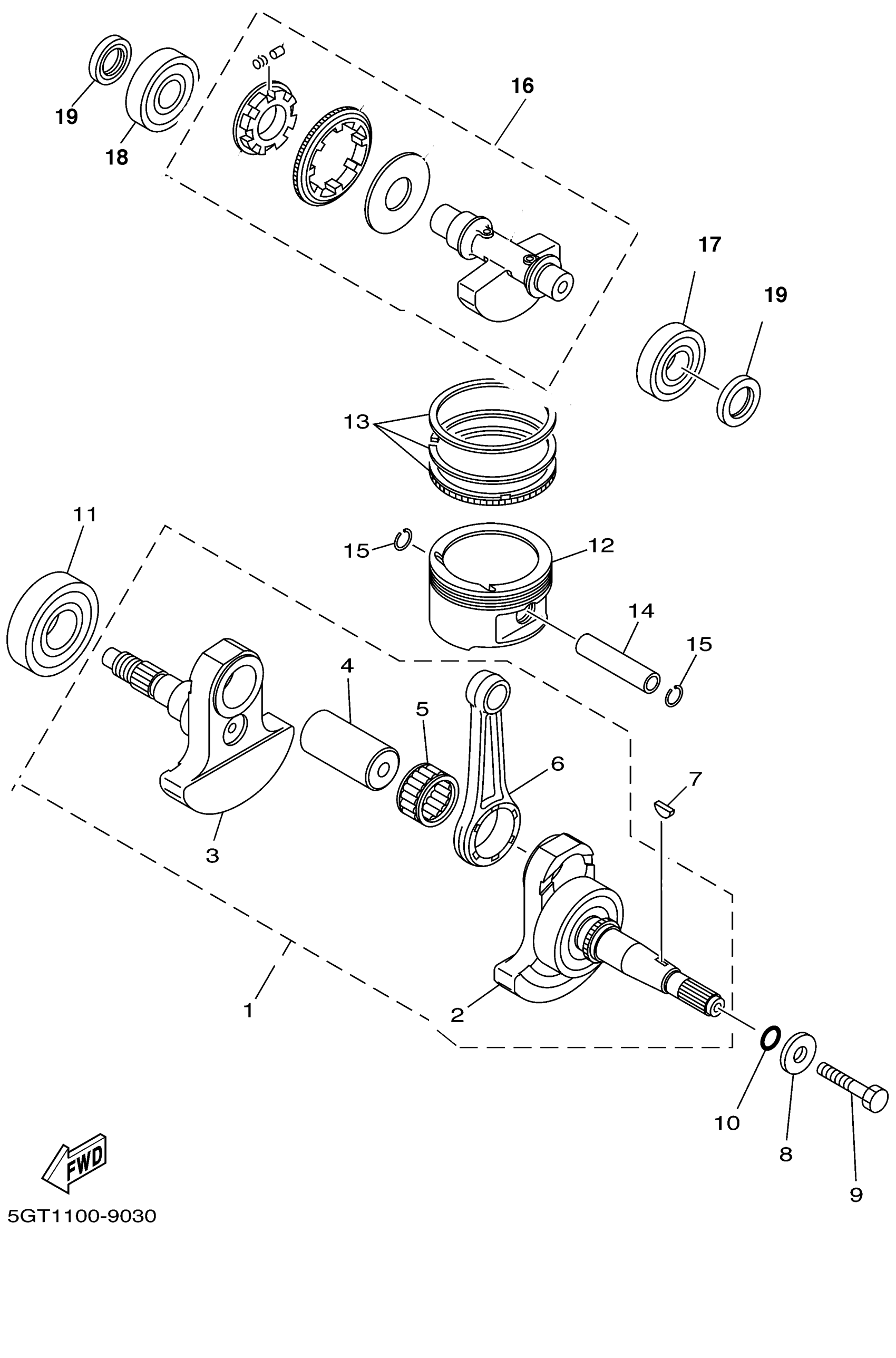

Yamaha YFM600FWALC (GRIZZLY) 5GT2 1999 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
5GT-11400-00-00
Unavailable
2
CRANK SUB ASSY 1
5GT-11401-09-00
Unavailable
3
. CRANK 2
5GT-W1142-00-00
Unavailable
4
PIN, CRANK 1
4WV-11681-10-00
Unavailable
6
. ROD, CONNECTING
5GT-11651-00-00
Unavailable
10
O-RING (538)
93210-16290-00
Unavailable
12
PISTON (STD)
3TB-11631-00-Y0
Unavailable
12
PISTON (0.50MM O/S)
3TB-11636-00-00
Unavailable
12
PISTON (1.00MM O/S)
3TB-11638-00-00
Unavailable
13
PISTON RING SET (0.50MM O/S)
34L-11610-20-00
Unavailable
13
PISTON RING SET
34L-11610-40-00
Unavailable
14
PIN, PISTON
1JK-11633-01-00
Unavailable
15
CIRCLIP 256116340000
93450-24028-00
Unavailable
16
BALANCER ASSY
5GT-11500-00-00
Unavailable
17
BEARING (3Y1)
93306-30525-00
Unavailable
18
BEARING(3RR)
93306-30560-00
Unavailable
19
OIL SEAL (5Y1)
93101-25106-00
Unavailable
