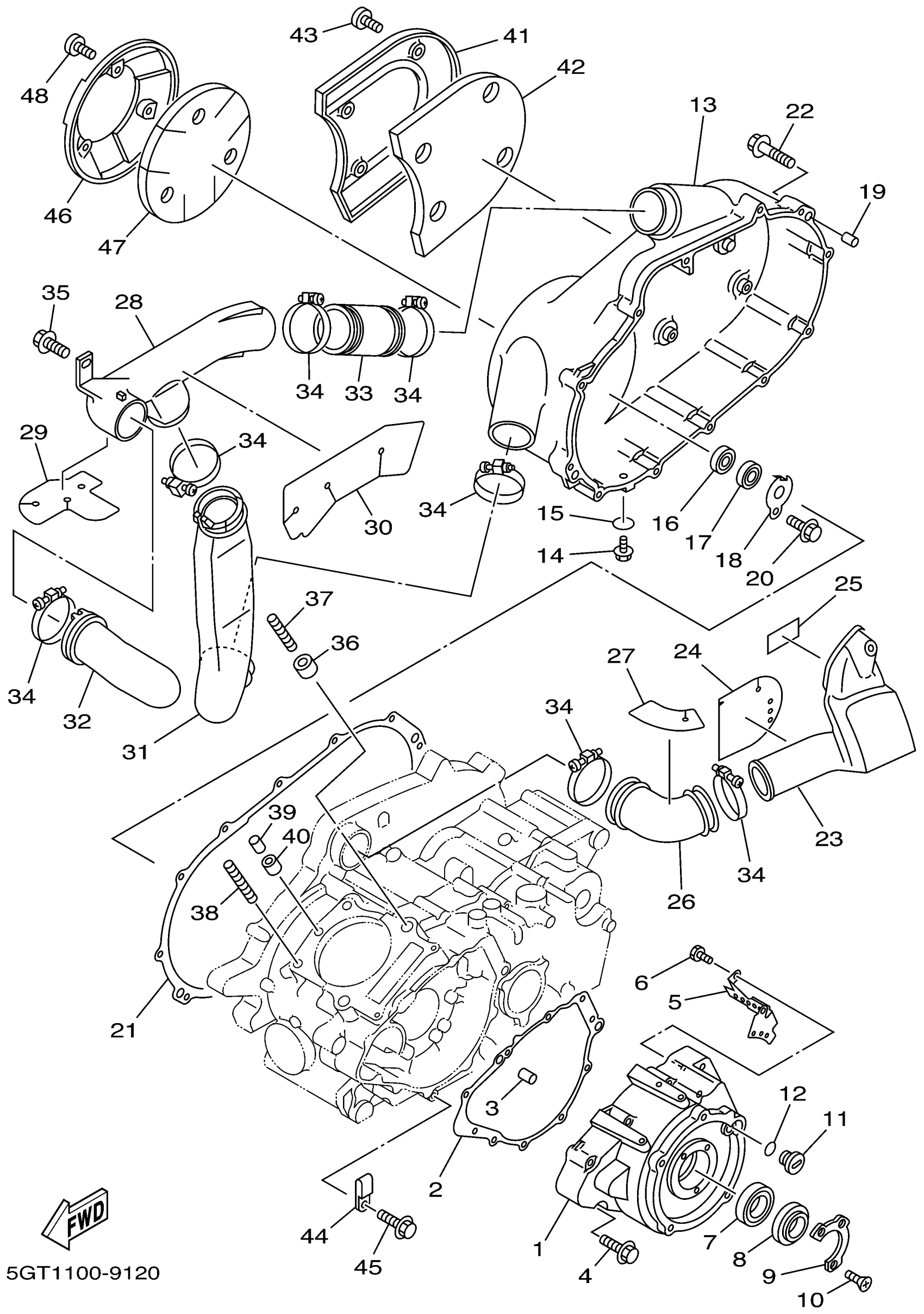

Yamaha YFM600FWALC (GRIZZLY) 5GT2 1999 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4WV-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4WV-15451-00-00

$24.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SMALL FLANGE

95027-06045-00

$3.28

5

PLATE

4WV-15113-00-00

Unavailable

6

BOLT,SOCKET

91317-06012-00

$8.49

7

BEARING(55X)

93306-07801-00

$55.99

8

OIL SEAL

93102-28476-00

$22.99

9

WASHER, THRUST

1UY-15719-00-00

$24.99

10

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

11

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

12

O-RING (2H9)

93210-14369-00

$7.49

13

COVER, CRANKCASE 3

4WV-15431-02-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

GASKET

90430-08119-00

$6.62

16

BEARING(82M)

93306-20117-00

Unavailable

17

OIL SEAL

93101-12168-00

Unavailable

18

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

$2.55

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

GASKET, CRANKCASE COVER 3

4WV-15462-00-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

23

DUCT, AIR

4WV-15471-00-00

Unavailable

24

SEAL, PROTECTOR 2

4WV-15496-00-00

Unavailable

25

DAMPER 3

4WV-15335-00-00

Unavailable

26

SEAL, AIR DUCT

4WV-15474-00-00

Unavailable

27

SEAL, PROTECTOR 1

4WV-15495-00-00

Unavailable

28

DUCT, AIR

4WV-15473-01-00

Unavailable

29

SEAL, PROTECTOR

4WV-15494-01-00

Unavailable

30

TAPE, DAMPER

4WV-15498-01-00

Unavailable

31

DUCT, AIR

4WV-15475-02-00

Unavailable

32

DUCT, AIR

4WV-15477-00-00

Unavailable

33

SEAL, AIR DUCT

4WV-15472-00-00

Unavailable

34

HOSE CLAMP ASSY

90450-64004-00

Unavailable

35

BOLT, FLANGE

95817-06014-00

Unavailable

36

PIN, DOWEL

99530-14016-00

Unavailable

37

BOLT, STUD(1JK)

90116-10506-00

Unavailable

38

BOLT, STUD (1W4)

90116-10263-00

Unavailable

39

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

40

GASKET (5Y1)

90430-08178-00

Unavailable

41

PROTECTOR, COVER

4WV-15499-00-00

Unavailable

42

DAMPER, ENGINE MOUNT 2

4WV-15326-00-00

Unavailable

43

SCREW, BINDING

98907-06014-00

Unavailable

44

CLAMP(83R)

90461-08113-00

Unavailable

45

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

46

PROTECTOR

4WV-15491-00-00

Unavailable

47

DAMPER, ENGINE MOUNT 1

4WV-15316-00-00

Unavailable

48

SCREW, BINDING

98907-06014-00

Unavailable
