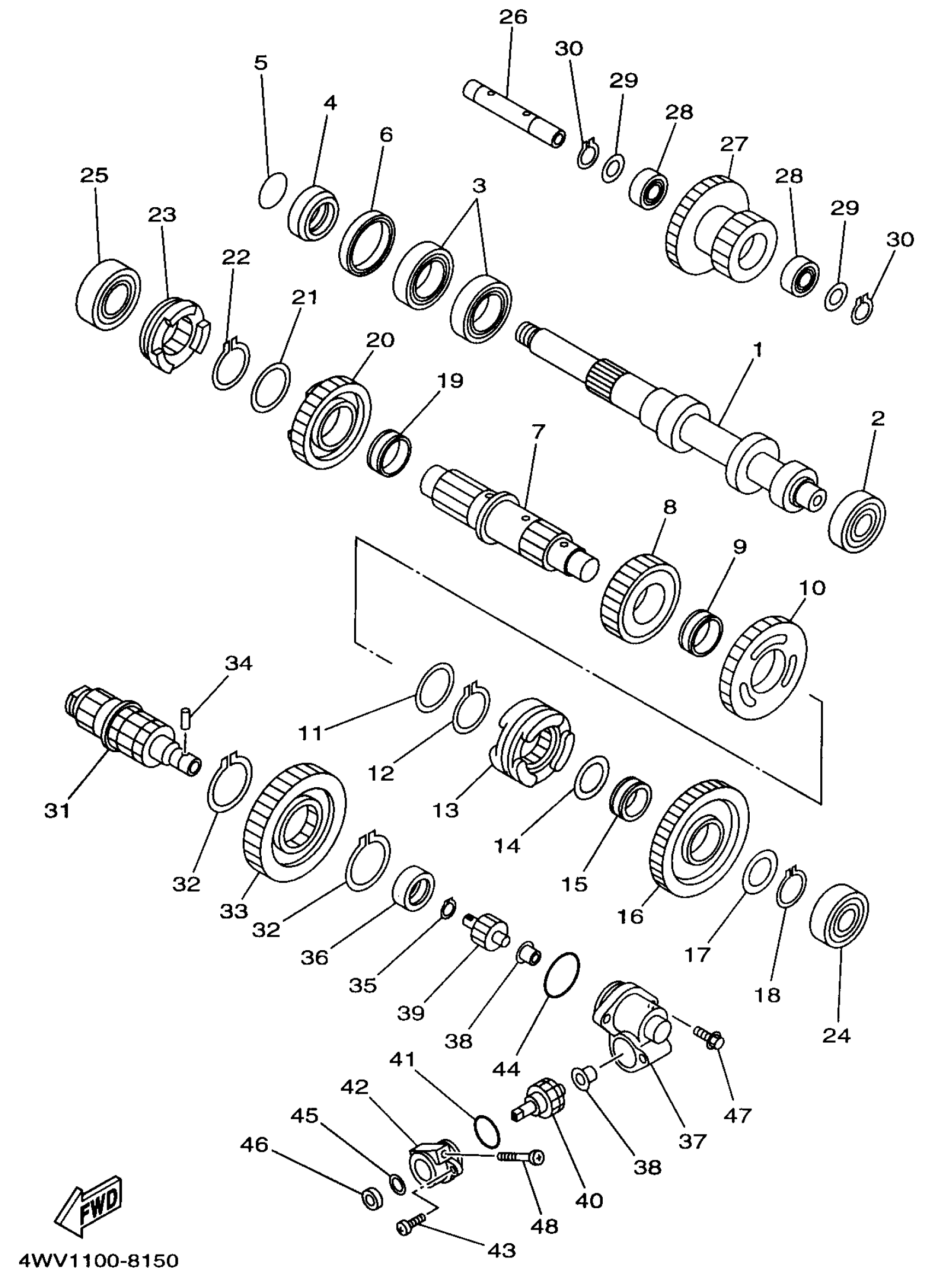

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 TRANSMISSION Diagram
#
1
SHAFT, SECONDARY
4WV-17681-00-00
Unavailable
7
AXLE, DRIVE
4WV-17421-00-00
Unavailable
8
GEAR, MIDDLE DRIVE
4WV-17582-00-00
Unavailable
9
BEARING
93310-330S2-00
Unavailable
10
GEAR, HIGH WHEEL
4WV-17223-00-00
Unavailable
11
WASHER, PLATE
90201-301U7-00
Unavailable
13
CLUTCH, DOG
4WV-17285-00-00
Unavailable
14
WASHER, PLATE(36Y)
90201-257H0-00
Unavailable
16
GEAR, LOW WHEEL
4WV-17233-00-00
Unavailable
17
WASHER, PLATE(8BB)
90201-250R9-00
Unavailable
18
CIRCLIP(JF7)
99009-25400-00
Unavailable
19
BEARING
93310-330S2-00
Unavailable
20
GEAR, REVERSE WHEEL 2
4WV-17253-00-00
Unavailable
21
WASHER, PLATE
90201-301U7-00
Unavailable
23
CLUTCH DOG 2
4WV-17286-00-00
Unavailable
25
BRG,R-B 6205DU8 52MM NK
93306-20550-00
Unavailable
26
AXLE, IDLE
4WV-17432-00-00
Unavailable
27
GEAR, REVERSE WHEEL 1
4WV-17243-00-00
Unavailable
28
BEARING, CYLINDRICAL(37F)
93311-51554-00
Unavailable
29
WASHER, PLATE(3GD)
90201-150U6-00
Unavailable
30
CIRCLIP(1AR)
99009-15400-00
Unavailable
31
SHAFT
4WV-17523-00-00
Unavailable
32
CIRCLIP (371)
93440-34025-00
Unavailable
33
GEAR, MIDDLE DRIVEN
4WV-17583-00-00
Unavailable
34
PIN, DOWEL(3HN)
93603-14240-00
Unavailable
35
CIRCLIP(59V)
93440-14155-00
Unavailable
36
BEARING
93311-42077-00
Unavailable
37
HOUSING, TACHOMETER GEAR
4WV-17811-00-00
Unavailable
38
BUSH (214-17843-00)
90381-08002-00
Unavailable
39
GEAR, DRIVE
4WV-17831-00-00
Unavailable
40
GEAR, DRIVEN
4WV-17841-00-00
Unavailable
41
O-RING(59V)
93210-24253-00
Unavailable
42
HOUSING, TACHOMETER GEAR
59V-17811-00-00
Unavailable
43
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
44
O-RING (341)
93210-32172-00
Unavailable
45
WASHER (692)
90201-12M34-00
Unavailable
46
OIL SEAL (30X)
93102-08307-00
Unavailable
47
. BOLT, FLANGE
95027-06020-00
Unavailable
48
SCREW, PAN
98517-06030-00
Unavailable
