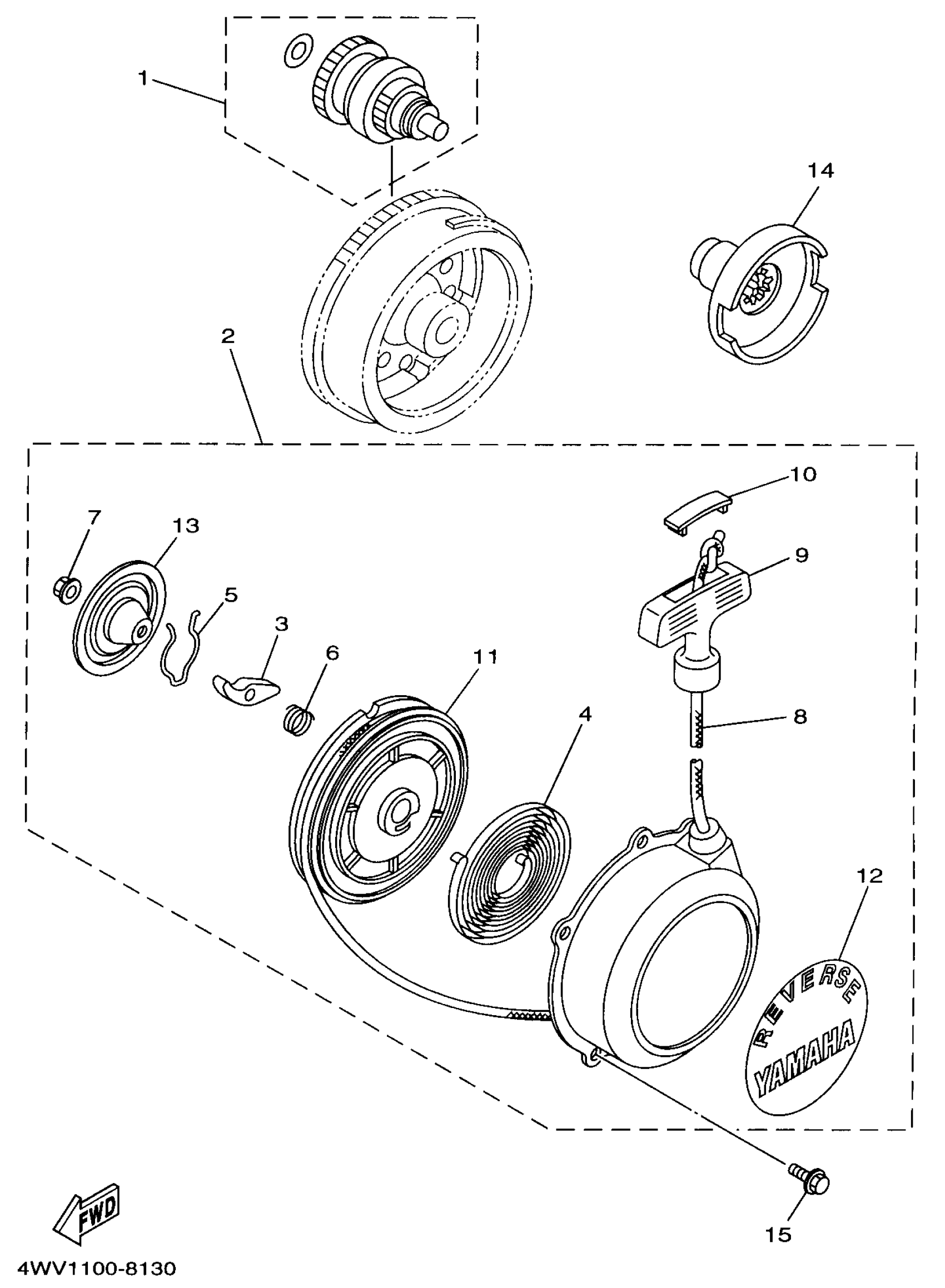

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 STARTER Diagram

#

Description
Price

1

IDLER GEAR ASSY

4WV-15570-01-00

Unavailable

2

STARTER ASSY

5GT-15710-00-00

Unavailable

3

PAWL, DRIVE

21V-15741-00-00

$17.98

4

SPRING, STARTER

21V-15713-00-00

$18.80

5

SPRING, DRIVE PLATE

21V-15715-00-00

$24.01

6

SPRING

21V-15767-00-00

$5.90

7

NUT, FLANGE(7NB)

95780-06500-00

$1.88

8

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

9

HANDLE, STARTER

3X3-15755-00-00

$23.09

10

CAP, KNOB

21V-15779-00-00

$6.03

11

DRUM, SHEAVE

24W-15714-00-00

$46.67

12

. EMBLEM

1UY-15443-00-00

Unavailable

13

PLATE, DRIVE

21V-15716-00-00

$23.14

14

PULLEY, STARTER

1UY-15723-00-00

$119.44

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.05
