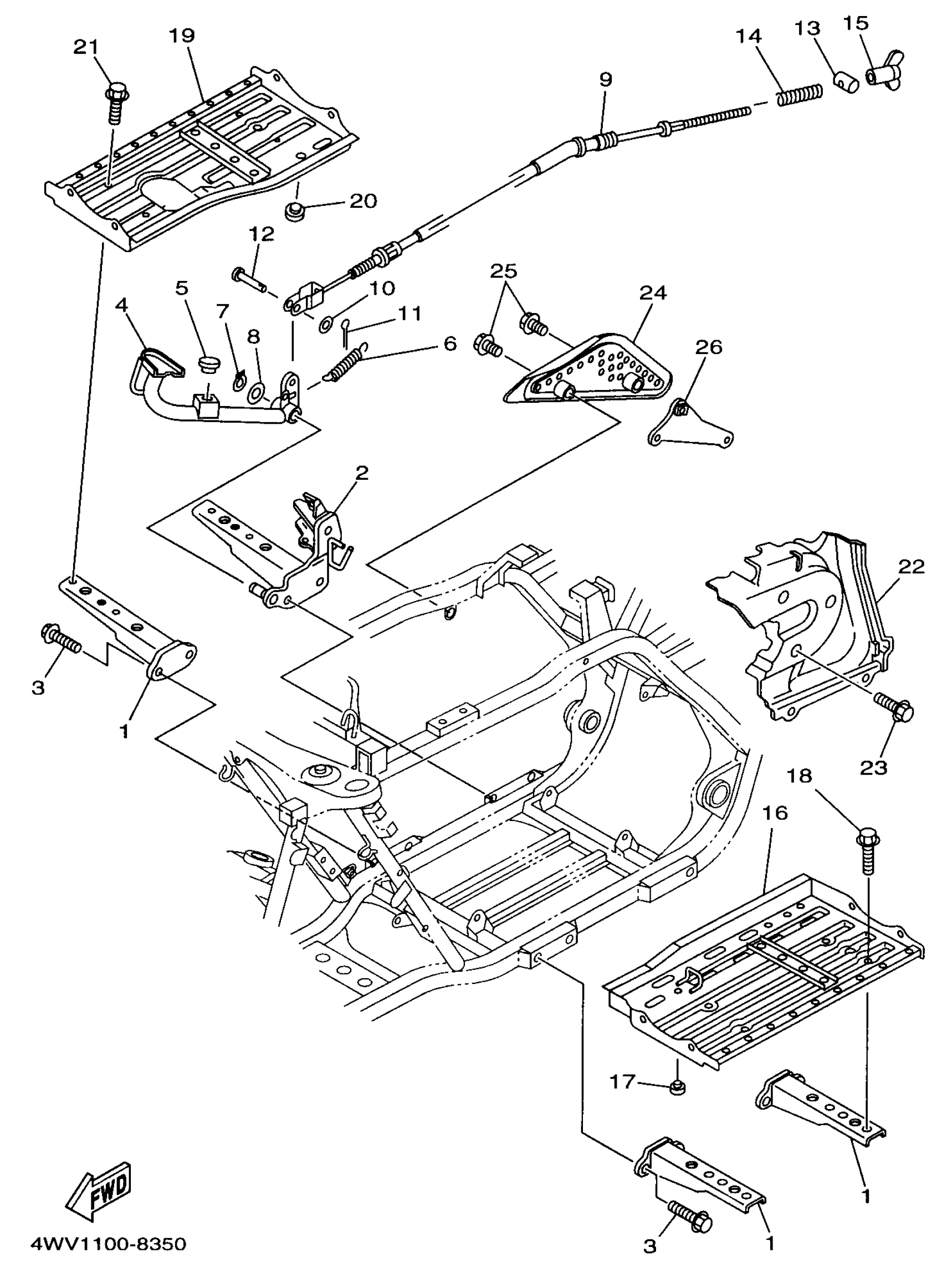

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

4WV-27411-00-00

Unavailable

2

FOOTREST 2

4WV-27421-00-00

Unavailable

3

BOLT, FLANGE

95817-10020-00

$8.49

4

PEDAL, BRAKE

4WV-27211-00-00

Unavailable

5

STOPPER, MAIN STAND

128-27114-00-00

$7.99

6

SPRING, TENSION (29U)

90506-16318-00

$10.49

7

CIRCLIP (122)

93430-12008-00

$8.49

8

WASHER, PLATE (3X3)

90201-15797-00

$9.49

9

CABLE, BRAKE

4WV-26351-00-00

Unavailable

10

WASHER(6TA)

92907-06200-00

$8.49

11

PIN, COTTER (648)

91490-20015-00

$2.20

12

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

15

NUT, AJUSTING

20E-26343-00-00

$27.99

16

BOARD, FOOTREST

4WV-27481-00-00

Unavailable

17

STOPPER, MAIN STAND

128-27114-00-00

$7.99

18

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

19

BOARD, FOOTREST 2

4WV-27488-00-00

Unavailable

20

STOPPER, MAIN STAND

128-27114-00-00

$7.99

21

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

22

COVER 1

4WV-27453-00-00

Unavailable

23

BOLT, FLANGE

95817-06014-00

Unavailable

24

COVER 2

4WV-27463-01-00

Unavailable

25

BOLT, HEXA W/W

90119-06018-00

Unavailable

26

STAY 1

4WV-15771-00-00

Unavailable
