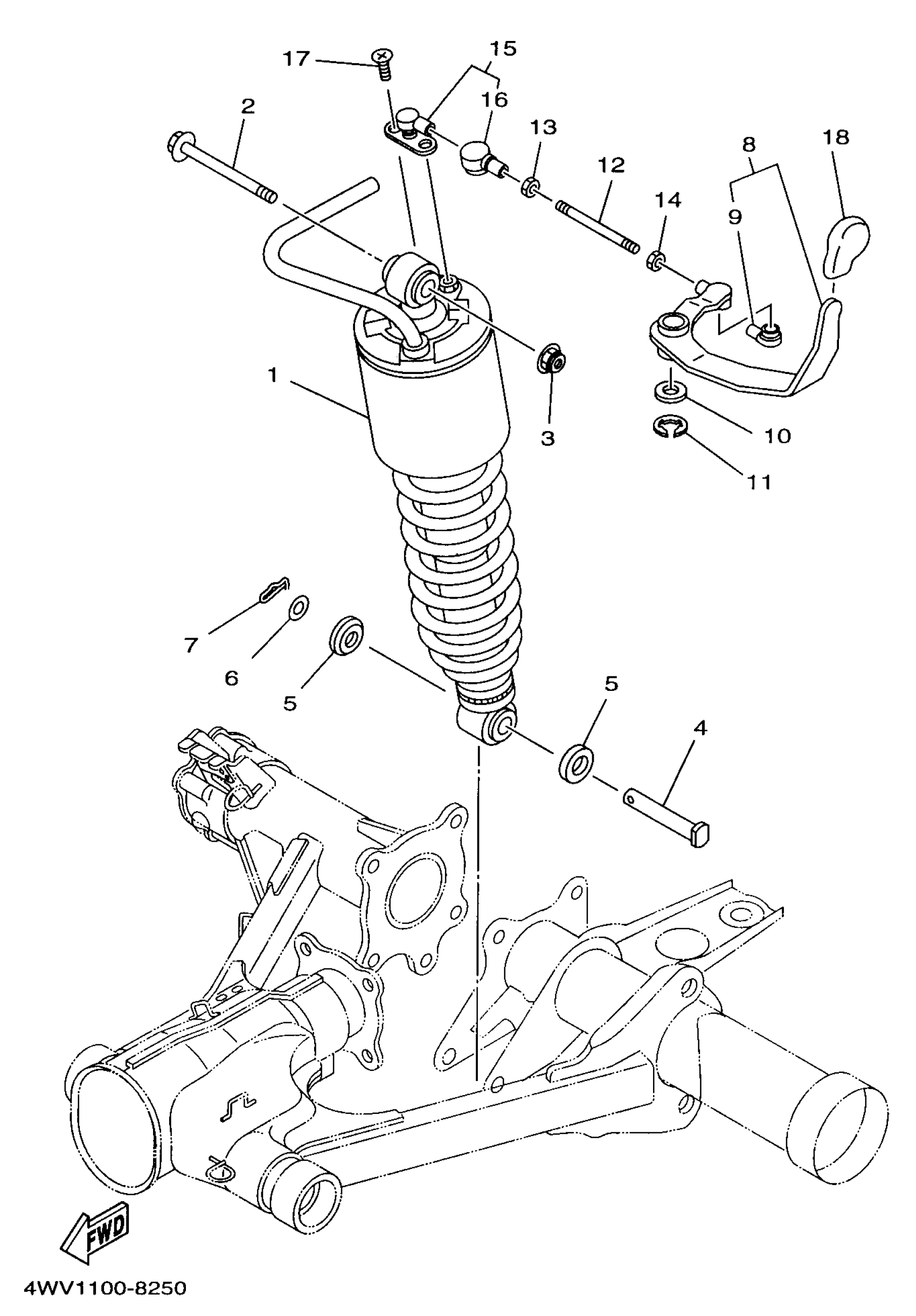

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSEMBLY, REAR

4WV-22210-00-00

Unavailable

2

BOLT, WASHER BASED(1YW)

90105-12425-00

$8.27

3

NUT, SELF LOCKING (1M1)

90185-12072-00

$7.77

4

PIN, CLEVIS (10V)

90240-12092-00

$7.32

5

COVER, THRUST

1W1-22128-00-00

$16.83

6

WASHER, PLATE(55K)

90201-127J6-00

$5.43

7

CLIP

90468-20196-00

$0.50

8

LEVER

4WV-2283G-00-00

Unavailable

9

COVER, DUST

2H9-18154-00-00

$5.12

10

WASHER, PLATE (3X3)

90201-15797-00

$5.86

11

CIRCLIP (122)

93430-12008-00

$4.89

12

ROD, SHIFT

2XK-18115-00-00

Unavailable

13

NUT(JN5)

95317-06700-00

$6.23

14

NUT (2H9)

90170-06228-00

$6.12

15

STAY, LEVER 2

4WV-2283J-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.12

17

SCREW,FLAT

98707-06010-00

Unavailable

18

GRIP

4WV-22837-00-00

Unavailable
