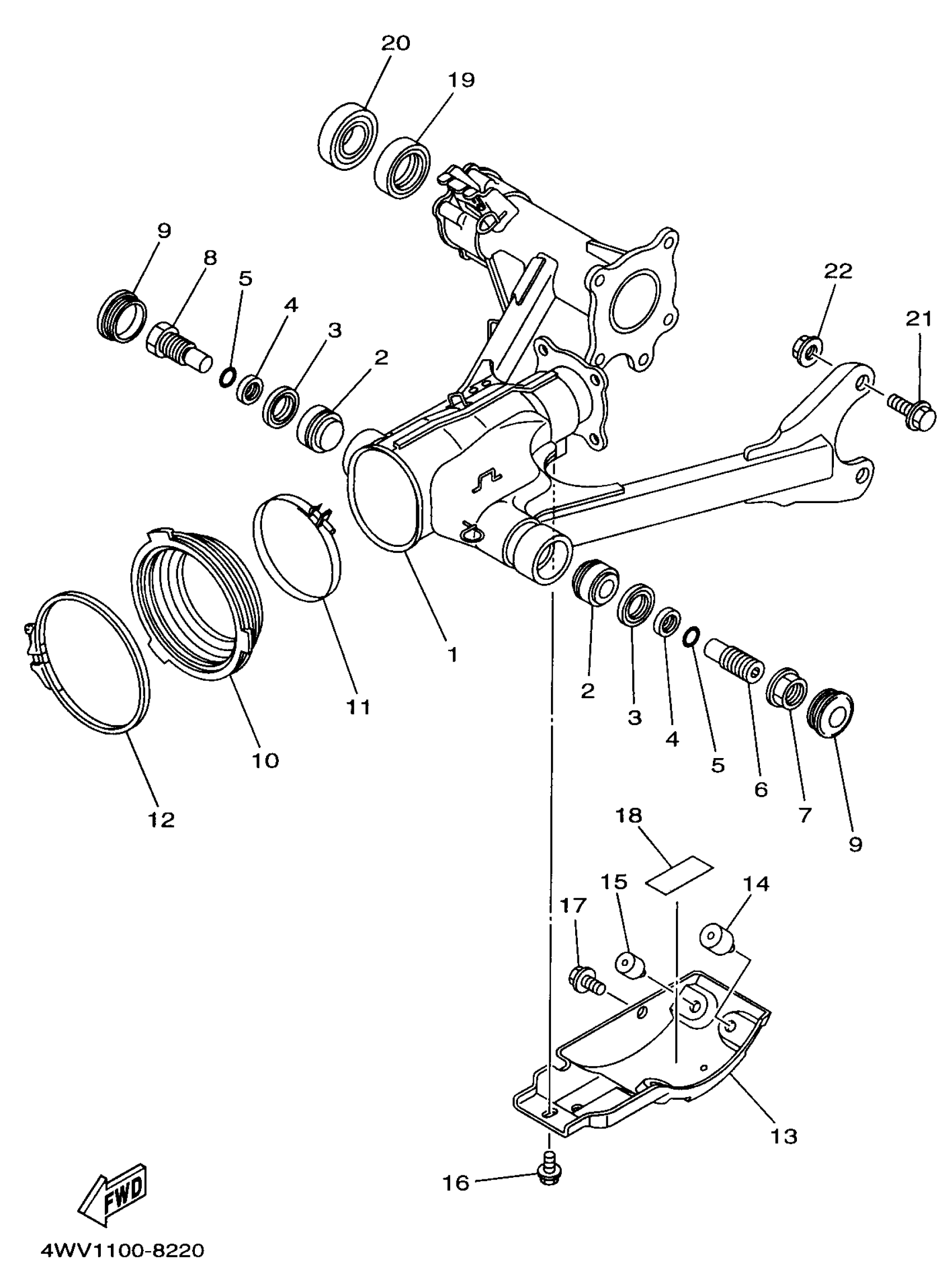

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4WV-22110-00-00

Unavailable

2

BEARING(4BD)

93332-00080-00

Unavailable

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR(4BD)

90387-1707V-00

$17.99

5

O-RING(53L)

93210-17718-00

$7.49

6

SHAFT, PIVOT

4WV-22141-00-00

$31.99

7

NUT

4WV-22143-00-00

$24.99

8

SHAFT, PIVOT

4H7-22141-00-00

$36.99

9

PLUG

90338-34264-00

$10.49

10

BOOT, RUBBER

4KB-22189-00-00

$45.99

11

CLAMP, HOSE(1YW)

90460-99289-00

$16.99

12

CLAMP, HOSE

4KB-22591-00-00

$32.99

13

COVER

4BD-2219X-02-00

Unavailable

14

STOPPER, MAIN STAND

1A0-27114-00-00

$17.49

15

STOPPER, MAIN STAND

109-27114-00-00

$6.99

16

BOLT, FLANGE

95817-08012-00

Unavailable

17

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

18

DAMPER 1

83R-14425-00-00

Unavailable

19

OIL SEAL (4H7)

93101-35097-00

Unavailable

20

BEARING(3JN)

93306-20531-00

Unavailable

21

BOLT,FLANGE

95817-12025-00

Unavailable

22

NUT, U FLANGE

95607-12200-00

Unavailable
