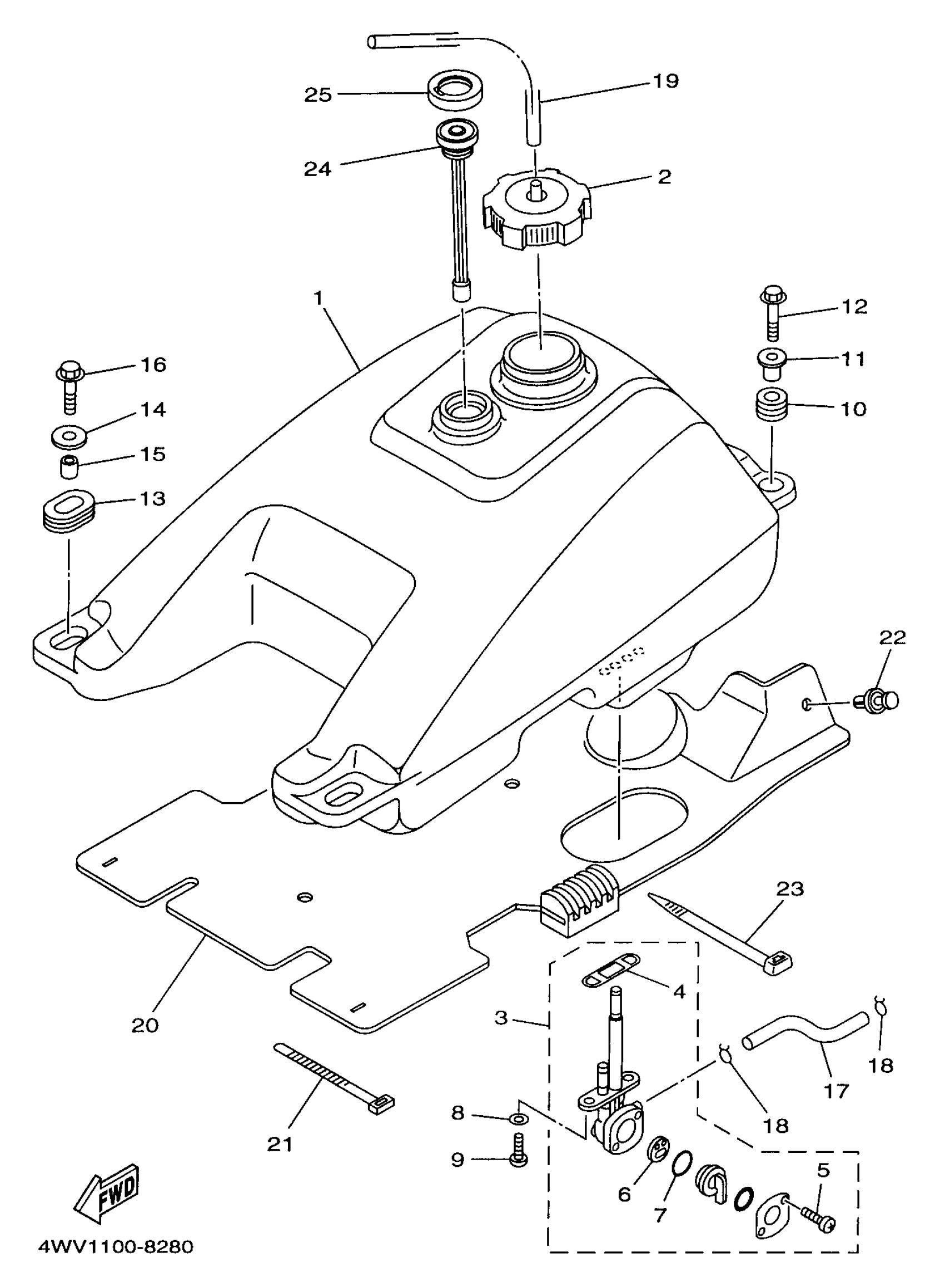

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4WV-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

4

O-RING

4X8-24512-00-00

$8.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

VALVE PACKING

3AC-24523-00-00

$12.99

7

SEAL, COCK

3AJ-24534-01-00

$10.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (36R)

90387-066J1-00

$8.49

12

BOLT, FLANGE

95817-06030-00

$4.29

13

GROMMET(38W)

90480-01400-00

$13.49

14

WASHER, PLATE

90201-06090-00

$5.60

15

COLLAR (1T2)

90387-07598-00

$5.60

16

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

HOSE (L600)

90445-083J5-00

Unavailable

20

DAMPER, PLATE 1

5GT-2414H-00-00

Unavailable

21

BAND, SWITCH CORD

437-83936-11-00

Unavailable

22

RIVET(4JH)

90269-07076-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

FUEL METER ASSY

4SH-24260-11-00

Unavailable

25

HOUSING, FUEL METER

4SH-24261-00-00

Unavailable
