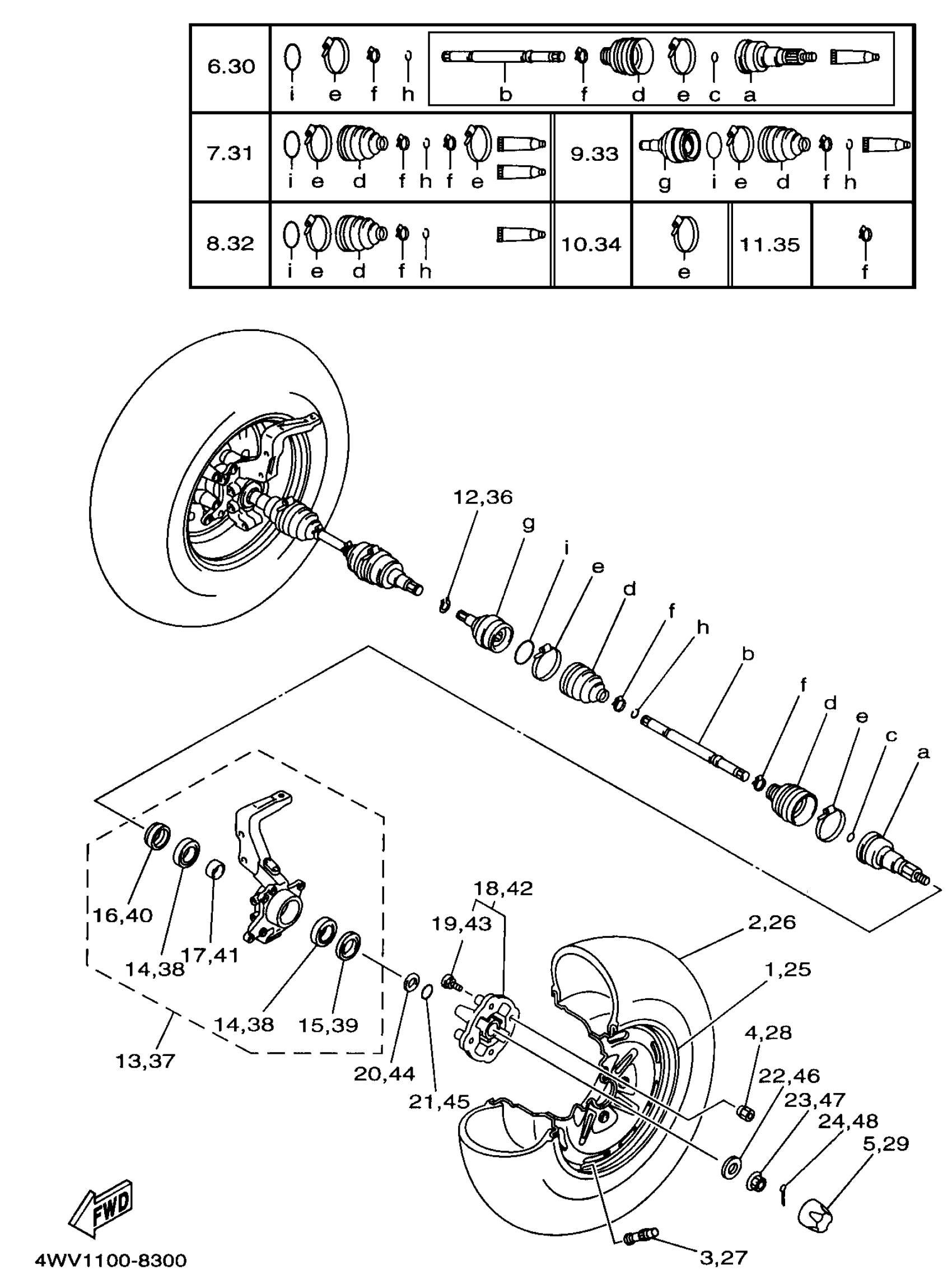

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 FRONT WHEEL Diagram
#
1
WHEEL COMP.
4WV-25180-00-MA
Unavailable
2
TIRE
94108-1211G-00
Unavailable
6
BALL JOINT SET
4WV-2510F-00-00
Unavailable
7
BOOT SET (BALL JOINT)
5GT-2510G-00-00
Unavailable
8
BOOT SET(DBL OFFSET)
5GT-2510H-00-00
Unavailable
9
DBL OFFSET JOINT
5GT-2510J-00-00
Unavailable
10
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
11
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
13
STEERING, KNUCKLE ASSEMBLY (LEFT)
4WV-23501-00-00
Unavailable
16
OIL SEAL(3HN)
93102-38417-00
Unavailable
17
SPACER(2HR)
90560-30325-00
Unavailable
18
HUB, FRONT
4WV-25111-00-00
Unavailable
19
BOLT, SERRATION
90114-10014-00
Unavailable
20
COLLAR(3HN)
90387-281V8-00
Unavailable
21
O-RING(22F)
93210-26662-00
Unavailable
22
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
23
NUT, CASTLE
90171-16001-00
Unavailable
24
PIN, COTTER
91490-30030-00
Unavailable
25
WHEEL COMP.
4WV-25180-00-MA
Unavailable
26
TIRE
94108-1211G-00
Unavailable
30
BALL JOINT SET
4WV-2510F-00-00
Unavailable
31
BOOT SET (BALL JOINT)
5GT-2510G-00-00
Unavailable
32
BOOT SET(DBL OFFSET)
5GT-2510H-00-00
Unavailable
33
DBL OFFSET JOINT
5GT-2510J-00-00
Unavailable
34
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
35
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
37
STEERING, KNUCKLE ASSEMBLY (RIGHT)
4WV-23502-00-00
Unavailable
40
OIL SEAL(3HN)
93102-38417-00
Unavailable
41
SPACER(2HR)
90560-30325-00
Unavailable
42
HUB, FRONT
4WV-25111-00-00
Unavailable
43
BOLT, SERRATION
90114-10014-00
Unavailable
44
COLLAR(3HN)
90387-281V8-00
Unavailable
45
O-RING(22F)
93210-26662-00
Unavailable
46
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
47
NUT, CASTLE
90171-16001-00
Unavailable
48
PIN, COTTER
91490-30030-00
Unavailable
