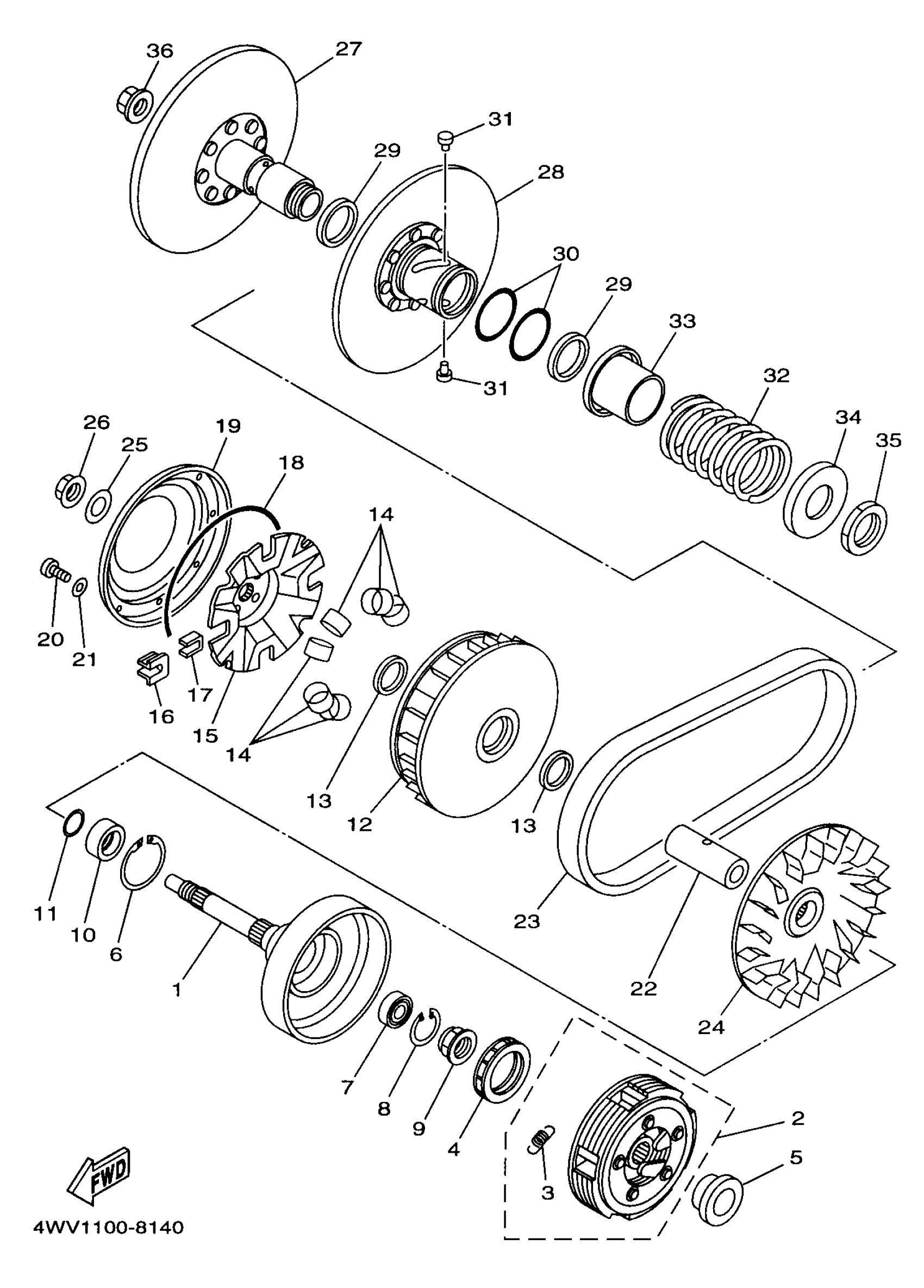

Yamaha YFM600FWAKC (GRIZZLY) 4WV11 1998 CLUTCH Diagram
#
Description
Price
2
CLUTCH CARRIER ASSY
5GT-16620-00-00
Unavailable
3
. SPRING, CLUTCH WEIGHT 1
4WV-16626-00-00
Unavailable
5
COLLAR
90387-2611Y-00
Unavailable
12
PRI. SLIDING SHEAVE
4WV-17620-10-00
Unavailable
16
SLIDER
4WV-17653-00-00
Unavailable
17
SPACER 1
4WV-17654-01-00
Unavailable
18
O-RING
93211-594A4-00
Unavailable
19
STOPPER
4WV-17639-10-00
Unavailable
20
SCREW, PAN HEAD
98517-04012-00
Unavailable
21
WASHER, PLATE(4HC)
90201-047R9-00
Unavailable
22
COLLAR
90387-1910N-00
Unavailable
23
V-BELT
4WV-17641-01-00
Unavailable
24
SHEAVE, PRIMARY FIXED
4WV-17611-10-00
Unavailable
25
WASHER, PLATE
90201-190T7-00
Unavailable
26
NUT
90179-16005-00
Unavailable
27
SECONDARY FIXED SHEAVE COMP.
4WV-17660-10-00
Unavailable
28
SECONDARY SLIDING SHEAVE
4WV-17670-00-00
Unavailable
29
OIL SEAL
93104-41119-00
Unavailable
30
O-RING (10L)
93210-44545-00
Unavailable
31
PIN, GUIDE
4CW-17664-00-00
Unavailable
32
SPRING, COMPRESSION
90501-623L6-00
Unavailable
33
SEAT, SECONDARY SPRING
4WV-17684-00-00
Unavailable
34
SEAT, SPRING
4WV-17644-00-00
Unavailable
35
NUT (5G3)
90170-36279-00
Unavailable
36
NUT
90179-16005-00
Unavailable
