- YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001
REAR FENDER

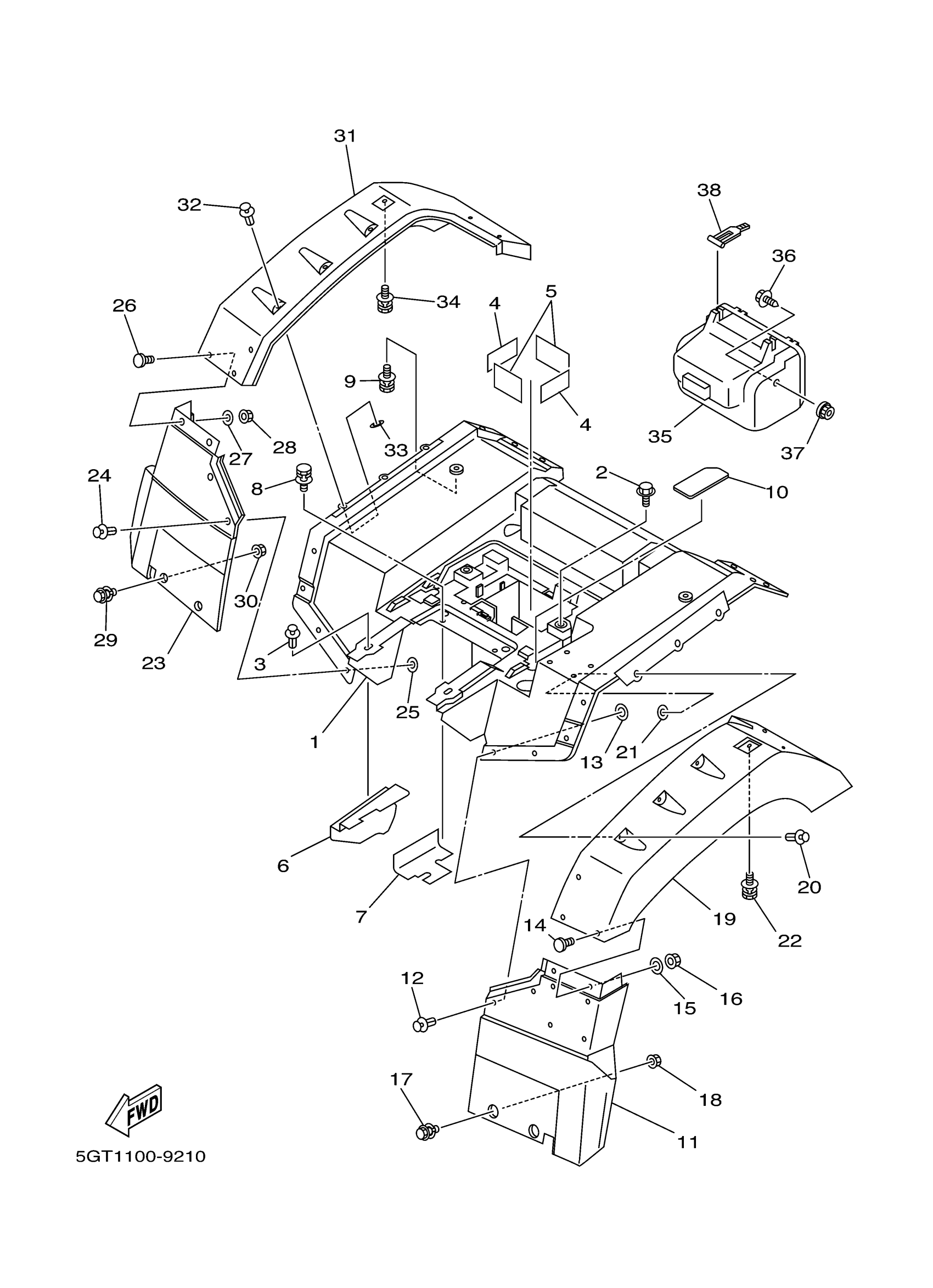

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 REAR FENDER Diagram
#
1
REAR FENDER COMP. (RTR)
4WV-W2161-01-00
Unavailable
1
REAR FENDER COMP. (PDG)
4WV-W2161-11-00
Unavailable
1
REAR FENDER COMP. (DNYS1)
4WV-W2161-21-00
Unavailable
1
REAR FENDER COMP.
4WV-W2161-A0-00
Unavailable
4
DAMPER
1YW-21638-00-00
Unavailable
5
DAMPER 1
3TB-28415-01-00
Unavailable
6
DAMPER 2
4WV-21639-00-00
Unavailable
7
DAMPER
4WV-21649-00-00
Unavailable
10
SEAL (ROMANTIQUE ROUGE)
5GT-21669-00-00
Unavailable
10
SEAL (PASTEL DEEP GREEN)
5GT-21669-10-00
Unavailable
10
SEAL (DARK GRAYISH YELLOW SOLID 1)
5GT-21669-20-00
Unavailable
11
FLAP ASSY 1
5GT-W2168-00-00
Unavailable
13
WASHER, PLATE(J41)
90201-076J4-00
Unavailable
14
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
15
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
16
NUT, NYLON
95707-05300-00
Unavailable
17
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
18
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
19
FLAP 3
4WV-2162H-00-00
Unavailable
21
WASHER, PLATE(J41)
90201-076J4-00
Unavailable
23
FLAP
4WV-21691-00-00
Unavailable
25
WASHER, PLATE(J41)
90201-076J4-00
Unavailable
26
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
27
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
29
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
30
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
31
FLAP 4
4WV-2162J-00-00
Unavailable
33
WASHER, PLATE(J41)
90201-076J4-00
Unavailable
35
BOX COMP.
5GT-2160A-00-00
Unavailable
36
BOLT, WITH WASHER
90119-06226-00
Unavailable
37
NUT,SELF-LOCKING
95607-06200-00
Unavailable
38
BAND
59V-21646-00-00
Unavailable
