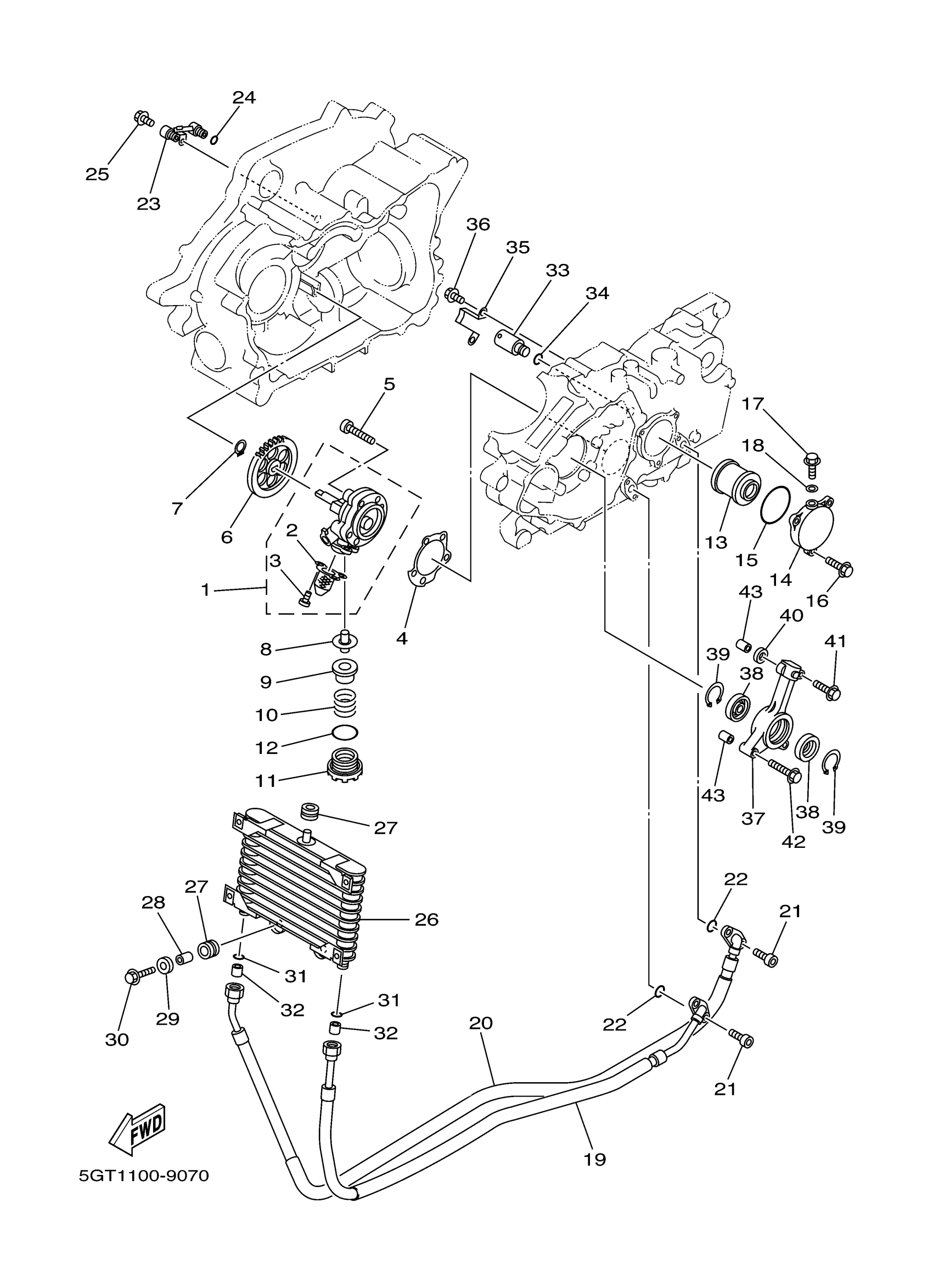

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5GT-13300-00-00

Unavailable

2

. STRAINER, OIL

4WV-13411-00-00

Unavailable

3

SCREW, PAN

98517-06008-00

$8.49

4

GASKET, PUMP COVER

4WV-13329-00-00

Unavailable

5

BOLT,SOCKET

91317-06050-00

$3.88

6

GEAR, PUMP DRIVEN

5GT-13325-00-00

Unavailable

7

CIRCLIP(24H)

99009-11400-00

$8.49

8

PIPE, OIL 1

4WV-13416-00-00

Unavailable

9

STRAINER, OIL

51Y-13411-00-00

$37.99

10

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

11

PLUG, DRAIN

4HC-15351-00-00

$18.49

12

O-RING (5X4)

93210-35512-00

$12.49

13

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$14.49

14

COVER, OIL ELEMENT

583-13447-01-00

$29.99

15

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

16

. BOLT, FLANGE

95027-06020-00

Unavailable

17

SCREW (583)

90149-05110-00

Unavailable

18

GASKET

90430-05126-00

Unavailable

19

HOSE, OIL 1

5GT-13464-00-00

Unavailable

20

HOSE, OIL 2

5GT-13465-00-00

Unavailable

21

BOLT,SOCKET

91317-06016-00

Unavailable

22

O-RING (371)

93210-10197-00

Unavailable

23

PIPE, DELIVERY 1

4WV-13161-00-00

Unavailable

24

O-RING (26H)

93210-06632-00

Unavailable

25

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

26

OIL COOLER ASSY

4WV-13470-00-00

Unavailable

27

GROMMET(2GH)

90480-12475-00

Unavailable

28

COLLAR

90387-07020-00

Unavailable

29

WASHER

90209-06012-00

Unavailable

30

BOLT, FLANGE

95817-06020-00

Unavailable

31

O-RING (256)

93210-12152-00

Unavailable

32

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

33

RELIEF VALVE ASSY

25G-13490-00-00

Unavailable

34

O-RING (611)

93210-10096-00

Unavailable

35

PLATE

4WV-1319K-00-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

37

CONNECTOR

4WV-13446-00-00

Unavailable

38

OIL SEAL

93101-30171-00

Unavailable

39

CIRCLIP

93450-42138-00

Unavailable

40

GASKET (5Y1)

90430-08178-00

Unavailable

41

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

42

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

43

PIN, DOWEL(3XW)

91808-16023-00

Unavailable
