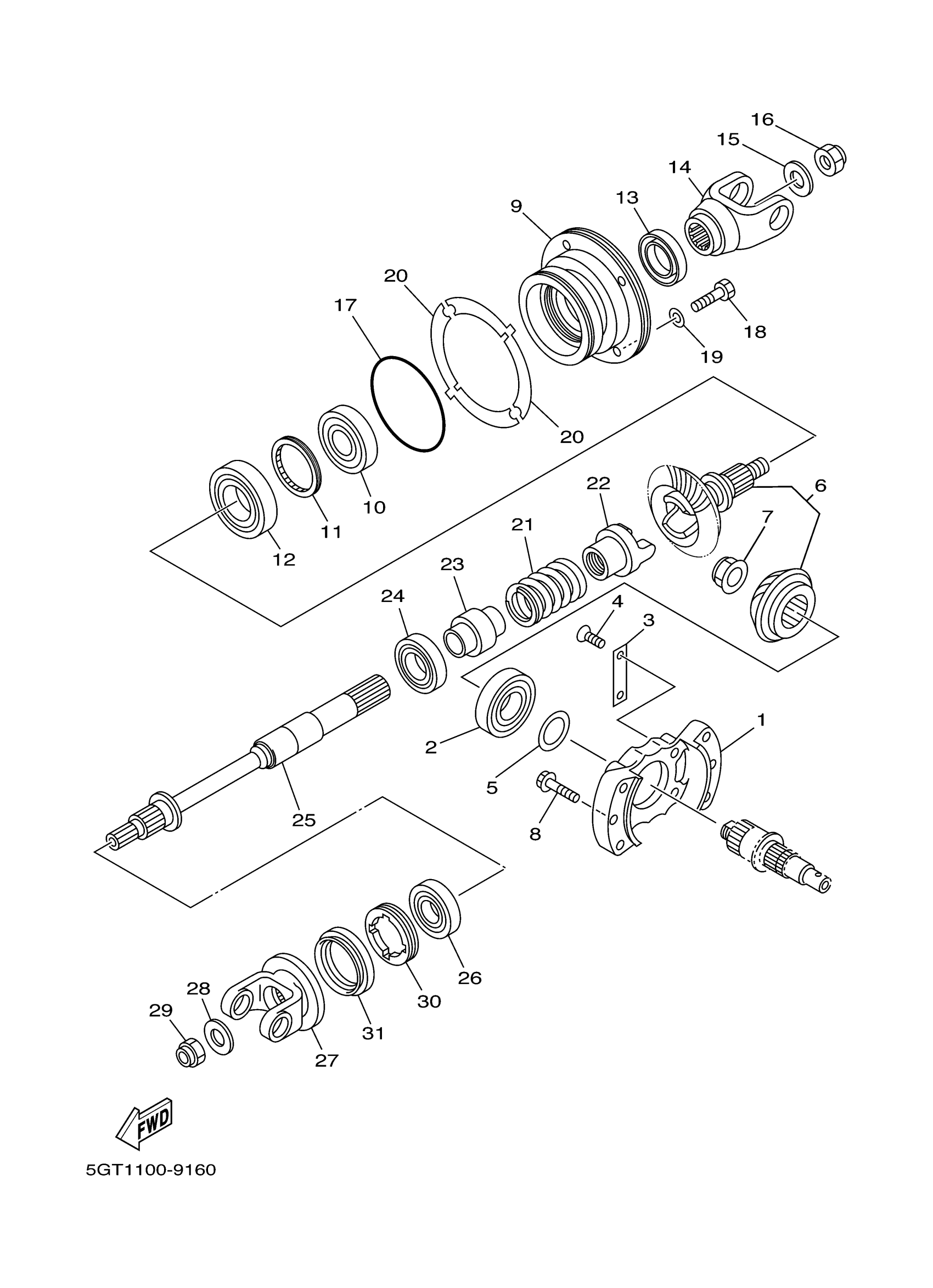

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

4WV-17521-01-00

Unavailable

2

BEARING (5X5)

93306-20627-00

$75.99

3

PLATE, BEARING COVER

11H-15383-02-00

$14.49

4

SCREW

90149-08013-00

$8.49

5

SHIM, PINION

52G-17531-01-00

$1.92

5

SHIM, PINION

52G-17531-11-00

$1.92

5

SHIM, PINION

52G-17531-21-00

$7.99

5

SHIM, PINION

52G-17531-31-00

$6.99

5

SHIM, PINION

52G-17531-41-00

$7.99

5

SHIM, PINION

52G-17531-51-00

$6.99

6

MIDDLE GEAR COMP.

5GT-Y1754-00-00

Unavailable

7

NUT

90179-22015-00

$29.99

8

BOLT, FLANGE

95817-08040-00

$7.49

9

HOUSING, BEARING

5GT-17551-00-00

Unavailable

10

BEARING(1LX)

93306-37204-00

$47.99

11

NUT

90179-60001-00

Unavailable

12

BEARING (8U9)

93306-20712-00

Unavailable

13

OIL SEAL (30X42X7-1J7)

93101-30084-00

Unavailable

14

YOKE, JOINT

5GT-17556-00-00

Unavailable

15

WASHER (838)

90201-12191-00

Unavailable

16

NUT (4X7)

90179-12325-00

Unavailable

17

O-RING (14X)

93210-78544-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

SHIM, PINION

4KB-17531-00-00

Unavailable

20

SHIM, PINION

4KB-17531-10-00

Unavailable

20

SHIM, PINION

4KB-17531-20-00

Unavailable

20

SHIM, PINION

4KB-17531-30-00

Unavailable

20

SHIM, PINION

4KB-17531-40-00

Unavailable

20

SHIM, PINION

4KB-17531-50-00

Unavailable

20

SHIM, PINION

4KB-17531-60-00

Unavailable

21

SPRING, COMPRESSION

90501-650L5-00

Unavailable

22

CAM, DRIVEN

4VR-17527-00-00

Unavailable

23

COUPLING, GEAR

4KB-46123-00-00

Unavailable

24

BEARING(2HR)

93306-00612-00

Unavailable

25

MIDDLE DRIVEN SHAFT ASSY

5GT-1755A-00-00

Unavailable

26

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

27

YOKE,JOINT 2

5KM-17576-00-00

Unavailable

28

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

29

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

30

NUT(4KB)

90179-55660-00

Unavailable

31

OIL SEAL(2NL)

93102-44454-00

Unavailable
