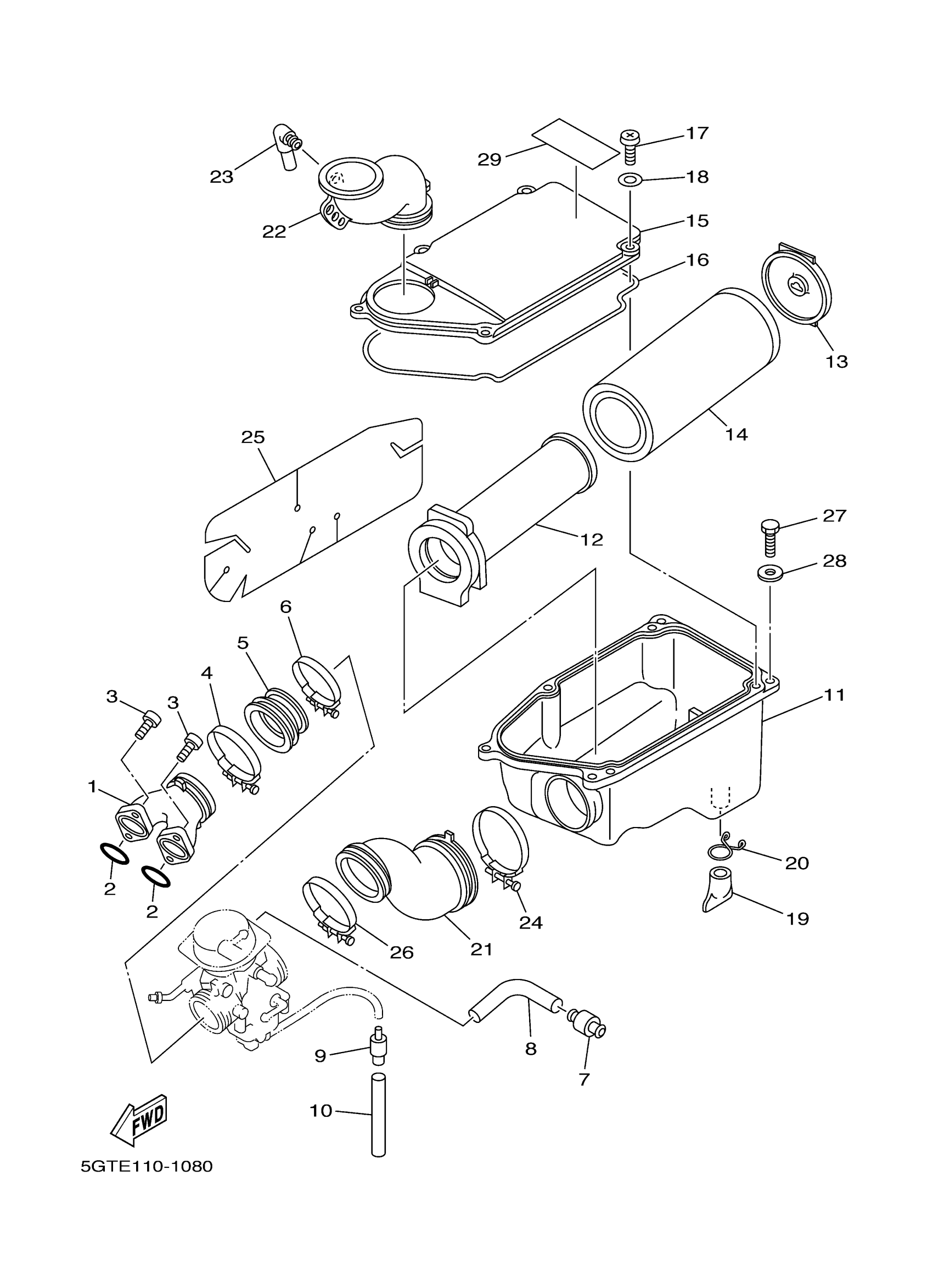

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

4WV-13586-01-00

$211.99

2

O-RING(2TY)

93210-36769-00

$11.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

HOSE CLAMP ASSY

90450-63002-00

Unavailable

5

JOINT, CARBURETOR 2

4WV-13596-00-00

$95.99

6

HOSE CLAMP ASSY

90450-57016-00

$21.99

7

SEAL

4X7-14467-01-00

Unavailable

8

PIPE

4WV-14349-00-00

$15.49

9

PIPE 2,OVERFLOW

24W-14193-00-00

$41.99

10

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

11

CASE, AIR CLEANER 1

1UY-14411-02-00

$42.99

12

GUIDE

1UY-14458-01-00

$88.99

13

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

14

ELEMENT,AIR CLNR

1UY-14451-01-00

$14.49

15

CAP, CLEANER CASE 1

1UY-14412-01-00

$29.99

16

SEAL

1VJ-14462-00-00

Unavailable

17

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

18

WASHER(1RW)

92907-05600-00

Unavailable

19

SEAL

59V-14457-00-00

Unavailable

20

CLIP (21V)

90467-22080-00

Unavailable

21

JOINT, AIR CLEANER 1

4WV-14453-01-00

Unavailable

22

DUCT

4WV-14437-00-00

Unavailable

23

PIPE

31A-14419-00-00

Unavailable

24

HOSE CLAMP ASSY

90450-75002-00

Unavailable

25

PROTECTOR

4WV-1442F-01-00

Unavailable

26

HOSE CLAMP ASSY

90450-64004-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable

28

WASHER(6TA)

92907-06600-00

Unavailable

29

PLATE, EPA 3(CALIFORNIA)

5GT-2179T-10-00

Unavailable

29

PLATE, EPA 3(CALIFORNIA)

5GT-2179T-20-00

Unavailable
