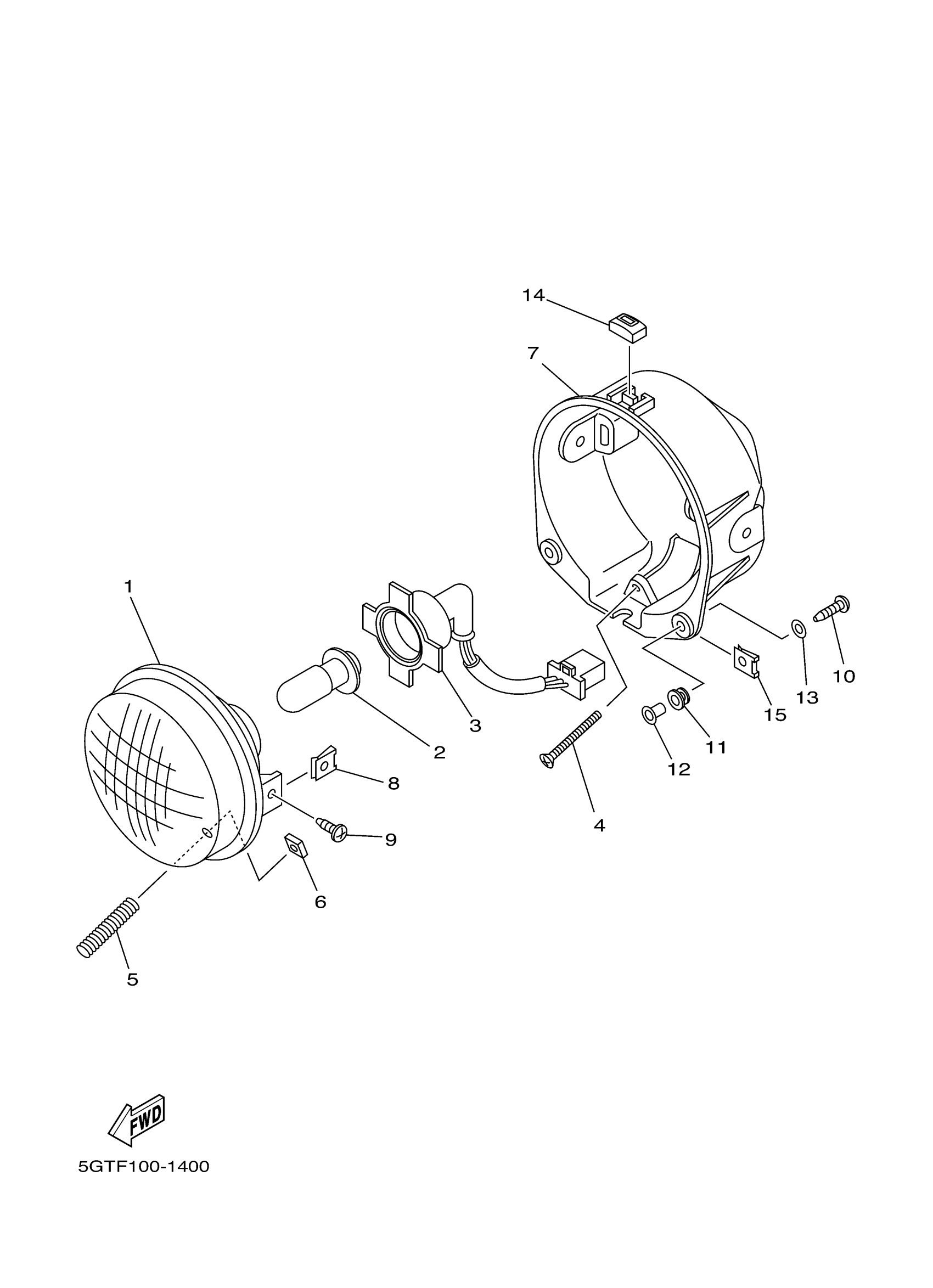

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$38.99

2

LENS ASSY

4WV-84320-00-00

$94.99

3

SOCKET CORD ASSY 1

5EH-84340-00-00

$57.99

4

SCREW, PAN HEAD

98507-03540-00

$2.18

5

SPRING, SCREW

2GU-84332-00-00

$7.99

6

NUT, ADJUSTING

2GU-84334-00-00

$7.99

7

BODY, HEADLIGHT

4WV-84111-01-00

Unavailable

8

NUT, SPRING(1YT)

90183-05042-00

$5.60

9

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

10

SCREW, TRUSS TAP.

97707-50025-00

$8.49

11

GROMMET(53Y)

90480-12072-00

$8.49

12

COLLAR

90387-06159-00

$8.49

13

WASHER(6TA)

92907-06200-00

$8.49

14

DAMPER

5GT-84163-00-00

Unavailable

15

NUT, SPRING

90183-05008-00

$9.49
