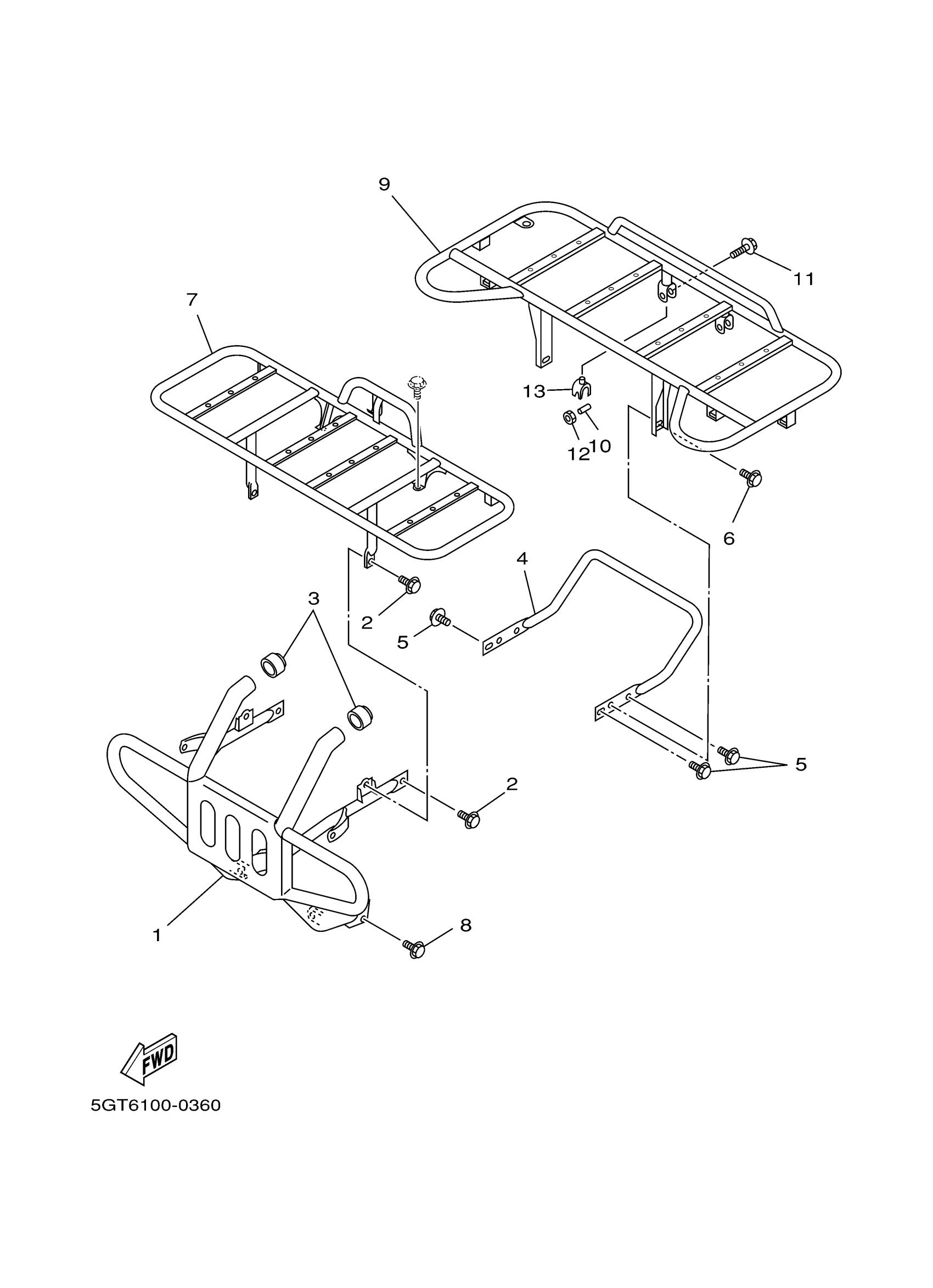

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

5GT-2845N-10-00

Unavailable

1

BAR, CARRY FRONT

5GT-2845N-50-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

DAMPER 1

2HR-28415-00-00

$15.49

4

BAR, CARRY REAR

5GT-2845R-00-00

Unavailable

5

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

6

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

7

CARRIER, FRONT

5GT-24841-00-00

Unavailable

7

CARRIER, FRONT

5GT-24841-20-00

Unavailable

8

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

9

CARRIER, REAR

5GT-24842-00-00

Unavailable

9

CARRIER, REAR

5GT-24842-10-00

Unavailable

10

SPACER (24W)

90560-06243-00

$8.49

11

BOLT, FLANGE

95817-06035-00

$7.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

BAND

24W-2483H-00-00

Unavailable
