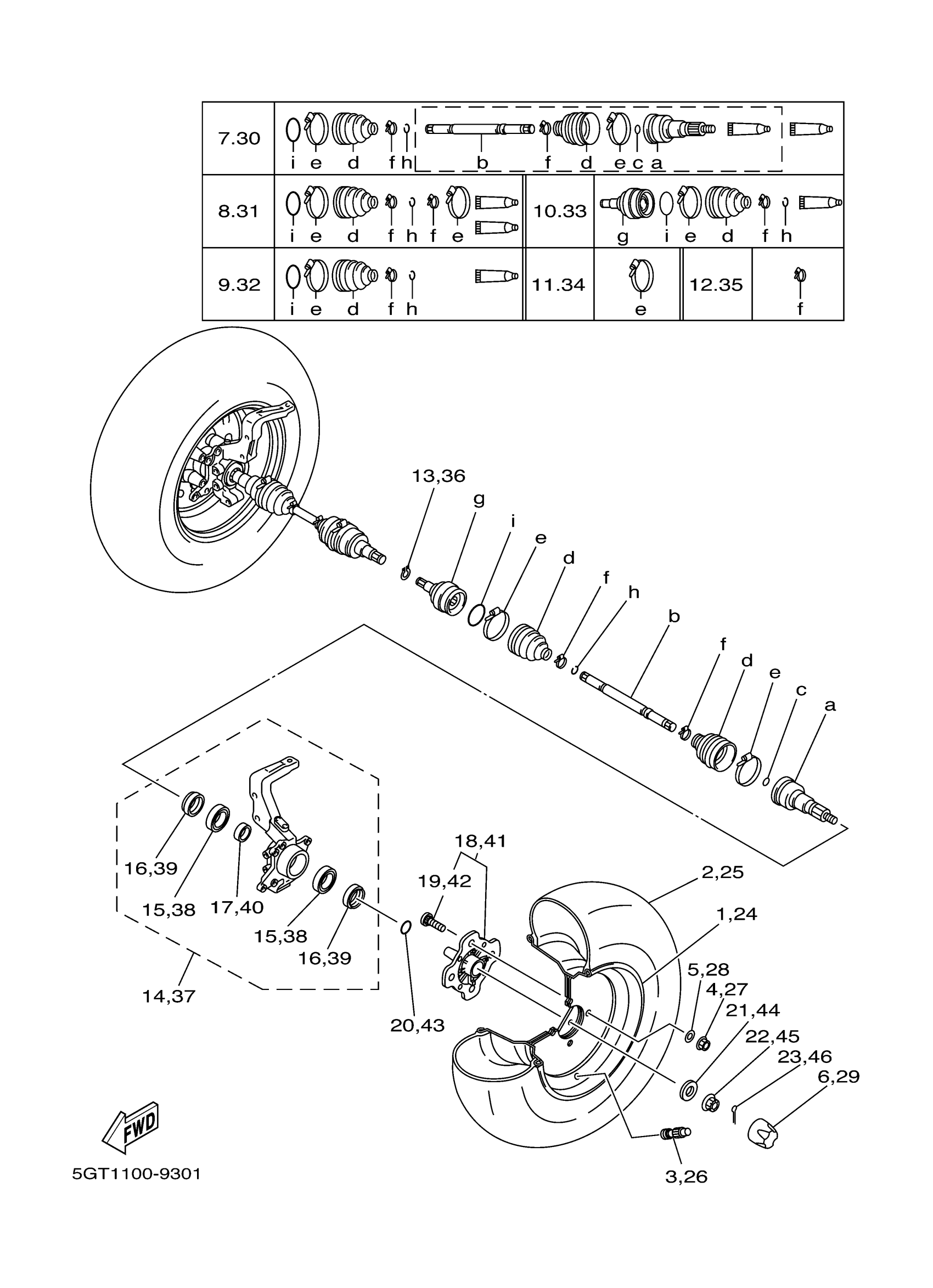

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

5GT-25180-00-00

Unavailable

1

WHEEL COMP.

5GT-25180-20-00

Unavailable

2

TIRE (AT25 X 8 - 12)

94108-1215F-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT, FLANGE(8AB)

95707-10500-00

$3.18

5

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

6

CAP, WHEEL

5GT-2512A-00-00

$9.99

7

BALL JOINT SET

5GT-2510F-00-00

Unavailable

8

BOOT SET (BALL JOINT)

5GT-2510G-00-00

Unavailable

9

BOOT SET(DBL OFFSET)

5GT-2510H-00-00

Unavailable

10

DBL OFFSET JOINT

5GT-2510J-00-00

Unavailable

11

BOOT BAND (BALL JOINT)

4WV-2511G-00-00

Unavailable

12

BOOT BAND (SMALL)

4WV-2512G-00-00

Unavailable

13

CIRCLIP(2HR)

93450-22119-00

$8.49

14

STEERING KNUCKLE ASSY (LEFT)

5GT-23501-00-00

Unavailable

15

BEARING

93306-00615-00

Unavailable

16

OIL SEAL(3HN)

93102-38417-00

Unavailable

17

SPACER(2HR)

90560-30325-00

Unavailable

18

HUB, FRONT

5GT-25111-00-00

Unavailable

19

BOLT, SERRATION

90114-10011-00

Unavailable

20

O-RING(47X)

93210-27666-00

Unavailable

21

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

22

NUT, CASTLE

90171-16001-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

WHEEL COMP.

5GT-25180-00-00

Unavailable

24

WHEEL COMP.

5GT-25180-20-00

Unavailable

25

TIRE (AT25 X 8 - 12)

94108-1215F-00

Unavailable

26

VALVE, RIM(2GH)

93900-00030-00

$16.99

27

NUT, FLANGE(8AB)

95707-10500-00

$3.18

28

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

29

CAP, WHEEL

5GT-2512A-00-00

$9.99

30

BALL JOINT SET

5GT-2510F-00-00

Unavailable

31

BOOT SET (BALL JOINT)

5GT-2510G-00-00

Unavailable

32

BOOT SET(DBL OFFSET)

5GT-2510H-00-00

Unavailable

33

DBL OFFSET JOINT

5GT-2510J-00-00

Unavailable

34

BOOT BAND (BALL JOINT)

4WV-2511G-00-00

Unavailable

35

BOOT BAND (SMALL)

4WV-2512G-00-00

Unavailable

36

CIRCLIP(2HR)

93450-22119-00

$8.49

37

STEERING KNUCKLE ASSY (RIGHT)

5GT-23502-00-00

Unavailable

38

BEARING

93306-00615-00

Unavailable

39

OIL SEAL(3HN)

93102-38417-00

Unavailable

40

SPACER(2HR)

90560-30325-00

Unavailable

41

HUB, FRONT

5GT-25111-00-00

Unavailable

42

BOLT, SERRATION

90114-10011-00

Unavailable

43

O-RING(47X)

93210-27666-00

Unavailable

44

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

45

NUT, CASTLE

90171-16001-00

Unavailable

46

PIN, COTTER

91490-30030-00

Unavailable
