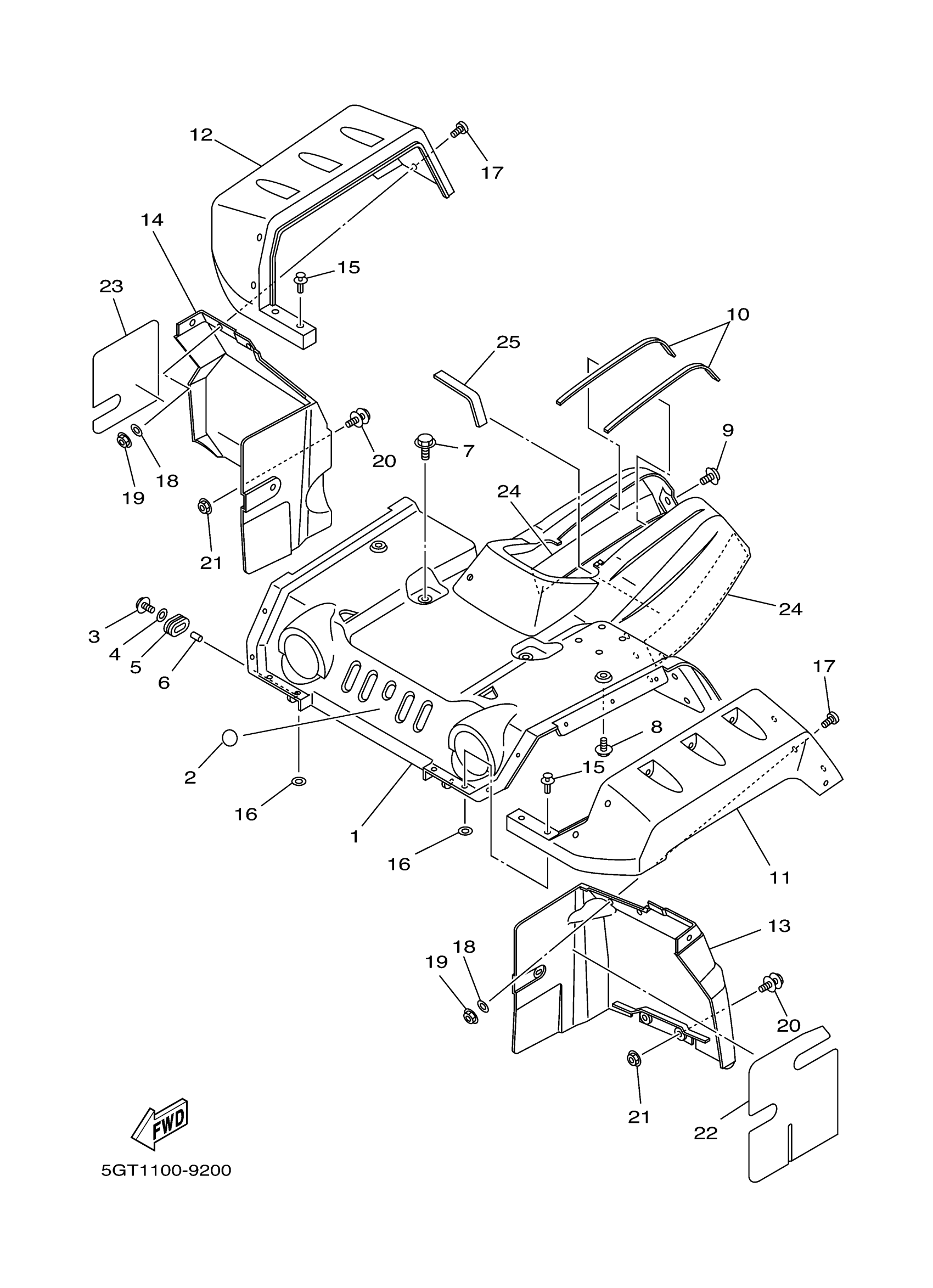

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT COMP. (RTR)

4WV-W2151-01-00

Unavailable

1

FENDER, FRONT COMP. (PDG)

4WV-W2151-11-00

Unavailable

1

FENDER, FRONT COMP. (DNYS1)

4WV-W2151-21-00

Unavailable

1

FRONT FENDER COMP. (PASTEL DEEP GREEN)

4WV-W2151-A0-00

Unavailable

2

TUNING FORK MARK

5GT-2175B-00-00

Unavailable

3

BOLT, FLANGE

95817-06030-00

$4.29

4

WASHER PLATE 248217570000

90201-06074-00

$9.49

5

GROMMET(38W)

90480-01400-00

$13.49

6

COLLAR

90387-06387-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

BOLT, WITH WASHER

90119-06152-00

$7.49

9

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

10

MOLE, SIDE COVER 1

4WV-2171L-00-00

$8.99

11

FENDER, OVER

4WV-21551-00-00

Unavailable

12

FENDER, OVER 2

4WV-21555-00-00

Unavailable

13

FENDER, OVER 3

4WV-21559-00-00

Unavailable

14

FENDER, OVER 4

4WV-21560-00-00

Unavailable

15

RIVET(4JH)

90269-07076-00

Unavailable

16

WASHER, PLATE(J41)

90201-076J4-00

Unavailable

17

SCREW, BINDING (8R1)

90154-05011-00

Unavailable

18

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

19

NUT, NYLON

95707-05300-00

Unavailable

20

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

21

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

22

DAMPER 1

4WV-21541-00-00

Unavailable

23

DAMPER 2

4WV-21542-00-00

Unavailable

24

PLATE 1

4WV-21543-00-00

Unavailable

25

DAMPER 1

88T-77198-00-00

Unavailable
