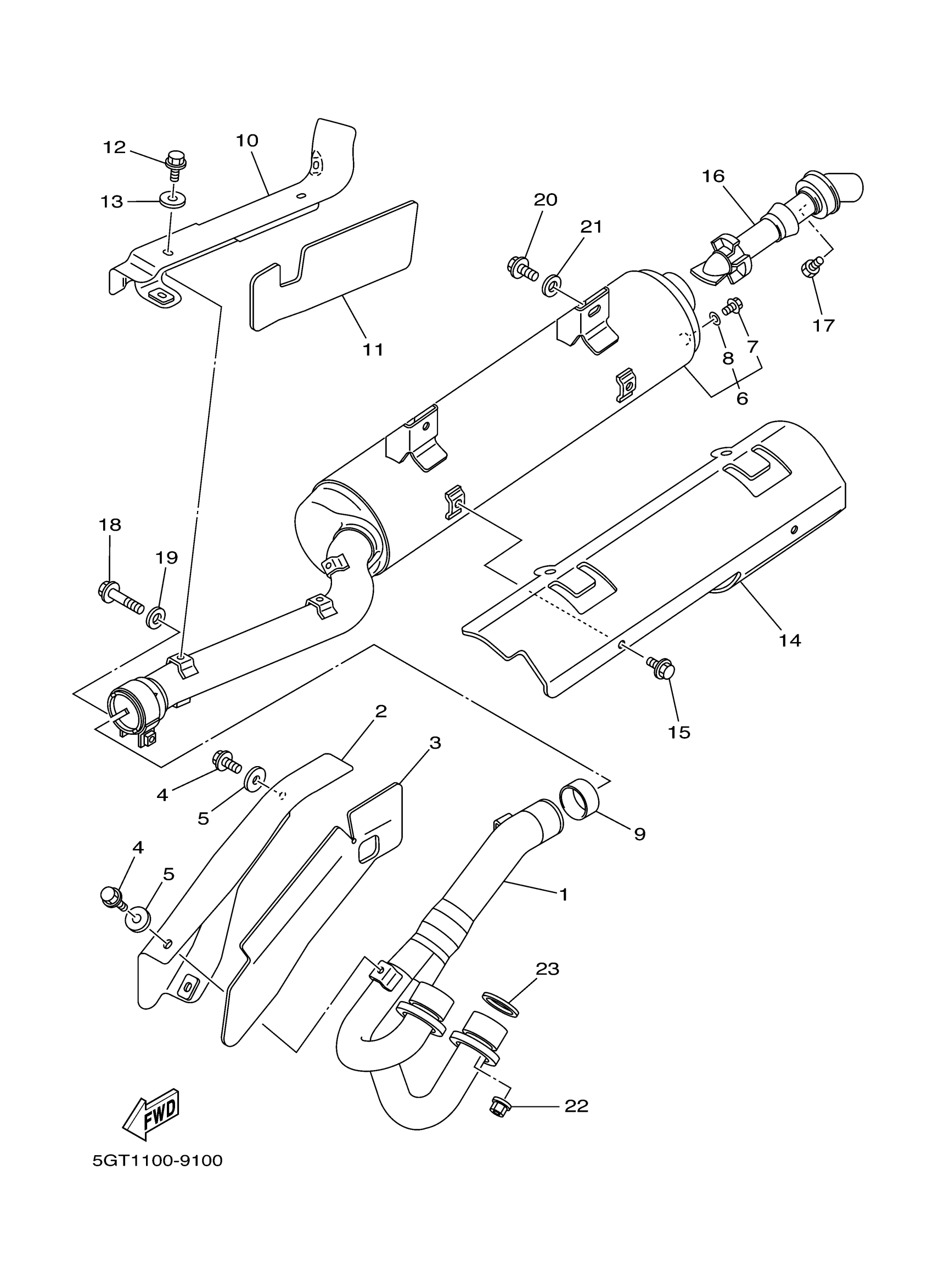

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

4WV-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

4WV-14628-00-00

Unavailable

3

PLATE, PROTECTOR

4WV-1465R-01-00

Unavailable

4

BOLT, FLANGE

95817-06010-00

$4.73

5

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

6

MUFFLER 1

5GT-14711-00-00

Unavailable

7

. BOLT, FLANGE

95885-10014-00

Unavailable

8

WASHER, PLATE

92990-10600-00

Unavailable

9

GASKET, SILENCER

3YF-14755-00-00

$34.99

10

PROTECTOR, MUFFLER

4WV-14728-01-00

Unavailable

11

PLATE, PROTECTOR

4WV-1465T-01-00

Unavailable

12

BOLT, FLANGE

95817-06010-00

$4.73

13

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

14

PROTECTOR, MUFFLER 1

5GT-14718-00-00

Unavailable

15

BOLT, FLANGE

95817-06010-00

$4.73

16

PIPE, OUTLET

4WV-14752-00-00

Unavailable

17

BOLT,HEXAGON

97017-06008-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

19

WASHER, PLATE(47X)

90201-086J0-00

Unavailable

20

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

21

WASHER (853)

90201-08326-00

Unavailable

22

NUT(2UJ)

90179-06668-00

Unavailable

23

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
