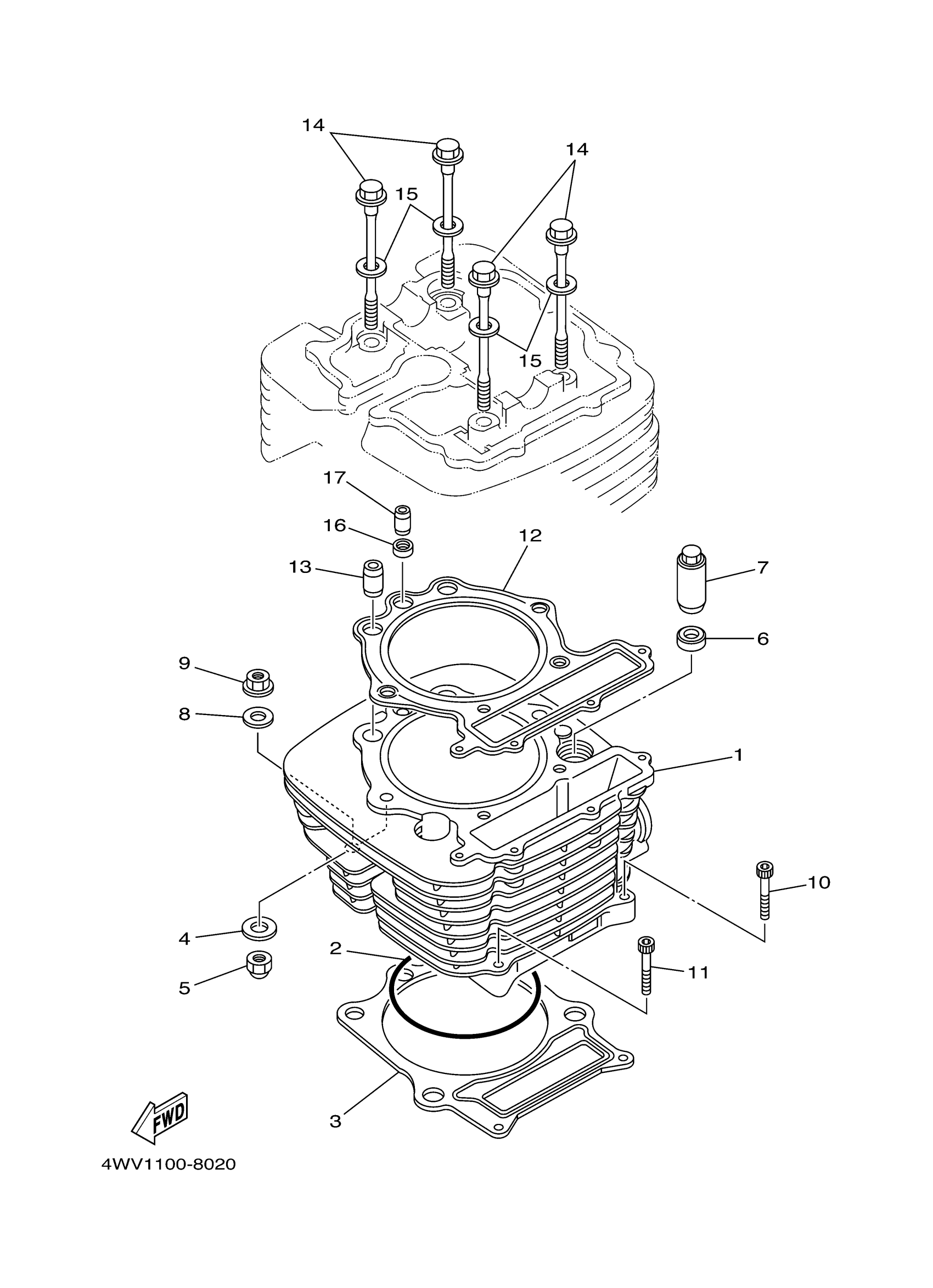

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 CYLINDER Diagram

#

Description
Price

1

CYLINDER

3TB-11310-00-00

Unavailable

2

O-RING (5Y1)

93210-97524-00

$14.47

3

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

4

WASHER, PLATE

90201-080L8-00

$2.61

5

NUT, CROWN (4G0)

90176-08026-00

$10.85

6

WASHER, PLATE (583)

90201-10590-00

$4.63

7

NUT

90179-10021-00

$20.11

8

WASHER, PLATE 3711117500

90201-10124-00

$6.15

9

NUT (2Y5)

90179-10279-00

$5.69

10

BOLT,SOCKET

91317-06035-00

$3.27

11

BOLT,SOCKET

91317-06035-00

$3.27

12

GASKET, CYLINDER HEAD 1

2KF-11181-01-00

Unavailable

13

PIN, DOWEL

99530-12016-00

$3.85

14

BOLT, WASHER BASED(1VJ)

90105-08505-00

$11.68

15

WASHER, PLATE(2KF)

90201-085L3-00

$6.64

16

GASKET (5Y1)

90430-08178-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

Unavailable
