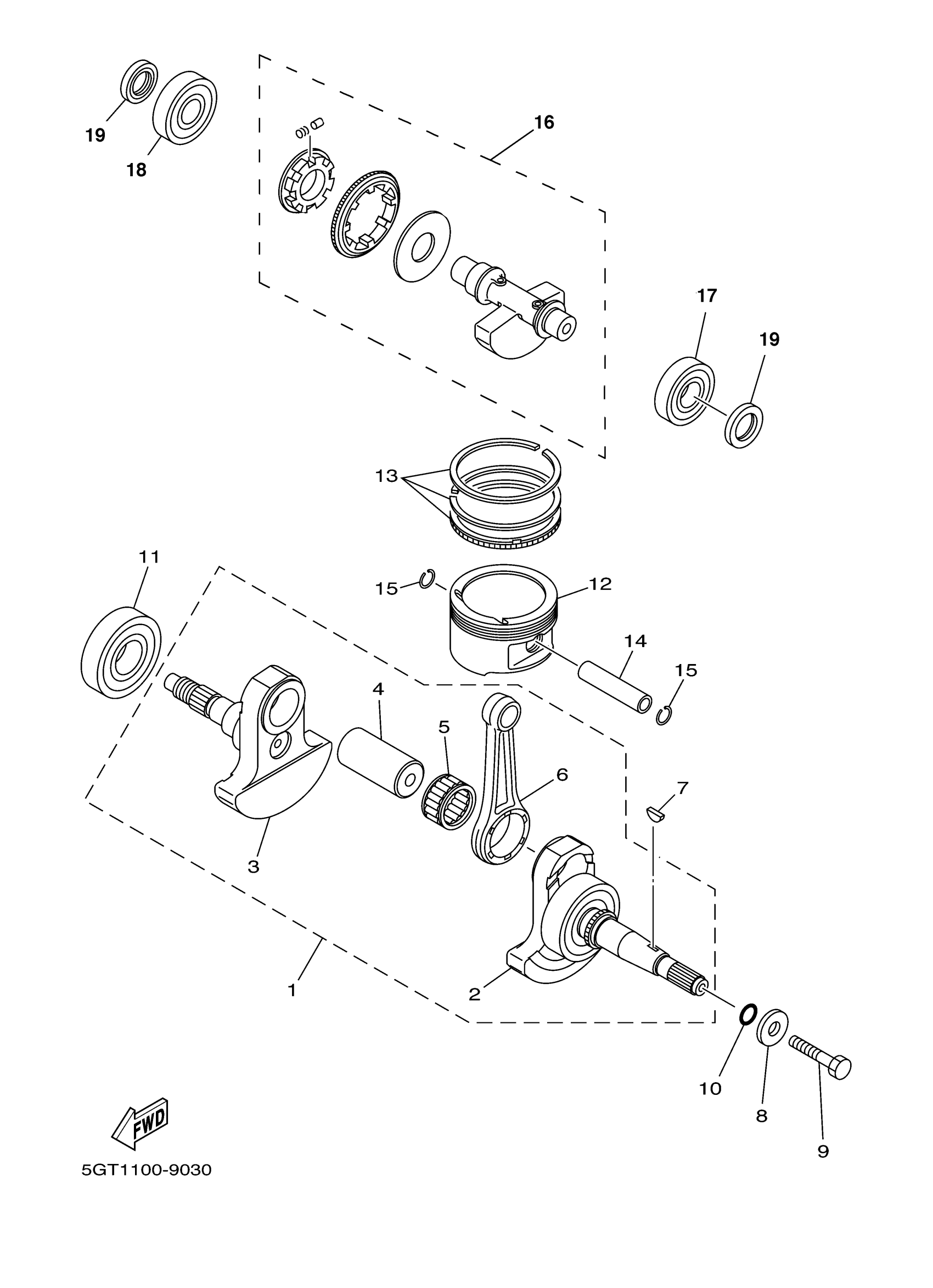

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5GT-11400-00-00

Unavailable

2

CRANK SUB ASSY 1

5GT-11401-09-00

Unavailable

3

. CRANK 2

5GT-W1142-00-00

Unavailable

4

PIN, CRANK 1

4WV-11681-10-00

Unavailable

5

BEARING, CYLINDRICAL(3YF)

93310-637D3-00

$83.99

6

. ROD, CONNECTING

5GT-11651-00-00

Unavailable

7

KEY, WOODRUFF

90280-05001-00

$12.49

8

WASHER, PLATE (856)

90201-10321-00

$8.49

9

BOLT (21V)

90101-10568-00

$5.60

10

O-RING (538)

93210-16290-00

Unavailable

11

BEARING (3GV)

93306-30702-00

$74.99

12

PISTON (STD)

3TB-11631-00-Y0

Unavailable

12

PISTON (0.50MM O/S)

3TB-11636-00-00

Unavailable

12

PISTON (1.00MM O/S)

3TB-11638-00-00

Unavailable

13

PISTON RING SET

34L-11610-00-00

$70.99

13

PISTON RING SET (0.50MM O/S)

34L-11610-20-00

Unavailable

13

PISTON RING SET

34L-11610-40-00

Unavailable

14

PIN, PISTON

1JK-11633-01-00

Unavailable

15

CIRCLIP 256116340000

93450-24028-00

Unavailable

16

BALANCER ASSY

5GT-11500-00-00

Unavailable

17

BEARING (3Y1)

93306-30525-00

Unavailable

18

BEARING(3RR)

93306-30560-00

Unavailable

19

OIL SEAL (5Y1)

93101-25106-00

Unavailable
