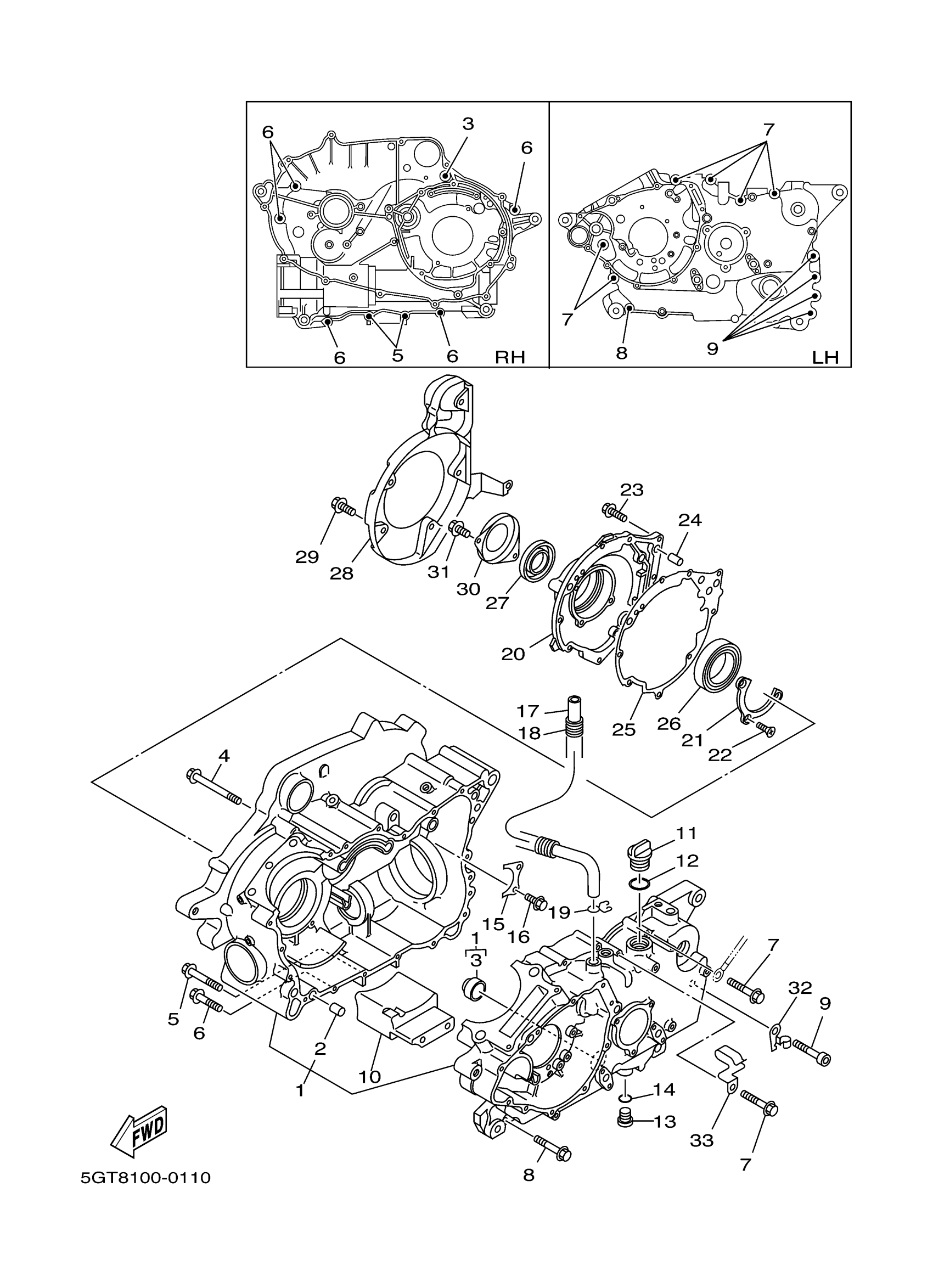

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4WV-15100-12-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

GAUGE, LEVEL

2H7-15361-00-00

$97.99

4

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

5

BOLT, SMALL FLANGE

95027-06060-00

$2.87

6

BOLT, SMALL FLANGE

95027-06040-00

$3.28

7

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

8

BOLT, SMALL FLANGE

95027-06035-00

$2.22

9

BOLT, SOCKET

91317-08050-00

$8.49

10

SPACER, ENGINE MOUNT

4WV-15327-00-00

Unavailable

11

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

12

O-RING(1KT)

93210-27778-00

$8.49

13

PLUG, STRAIGHT SCREW

90340-14002-00

$20.99

14

GASKET

214-11198-01-00

$3.17

15

PLATE, BEARING COVER

4WV-15388-00-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

17

PIPE, BREATHER 1

4WV-11166-00-00

Unavailable

18

PROTECTOR, PIPE

4WV-24327-01-00

Unavailable

19

CLIP (371)

90467-14015-00

Unavailable

20

HOUSING, BEARING 1

4WV-15163-00-00

Unavailable

21

PLATE, BEARING COVER

5GT-15383-00-00

Unavailable

22

SCREW,FLAT

98707-06010-00

Unavailable

23

. BOLT, FLANGE

95027-06020-00

Unavailable

24

PIN, DOWEL(3VD)

99530-10114-00

$2.55

25

GASKET, CARBURETOR COVER 2

4WV-15463-00-00

Unavailable

26

BEARING

93306-01002-00

Unavailable

27

OIL SEAL

93102-35463-00

Unavailable

28

COVER

4WV-15333-00-00

Unavailable

29

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

30

PLATE

5GT-15191-00-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

32

CLAMP

90465-10090-00

Unavailable

33

CLAMP

90465-08389-00

Unavailable
