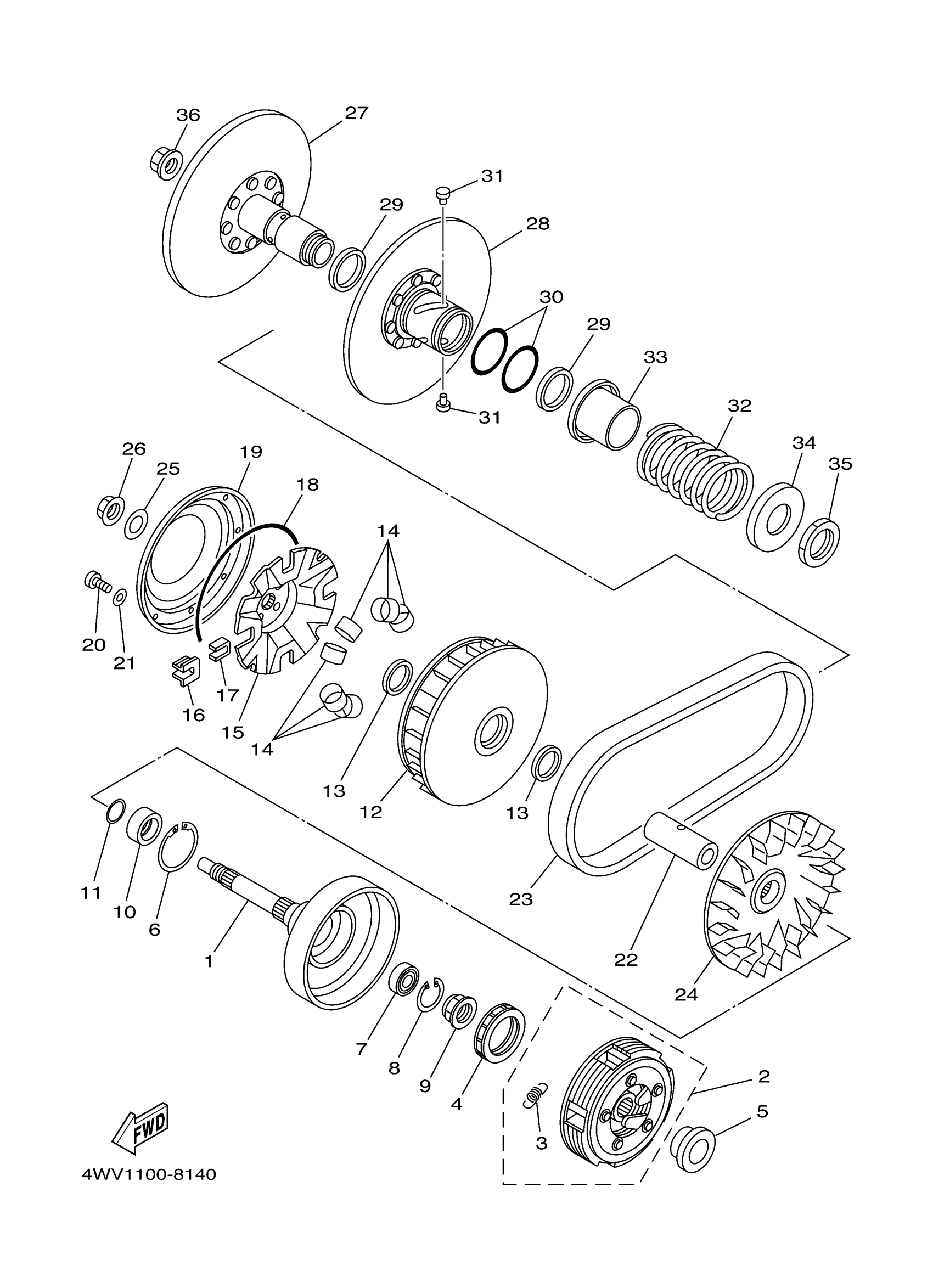

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

5GT-16611-00-00

Unavailable

2

CLUTCH CARRIER ASSY

5GT-16620-00-00

Unavailable

3

. SPRING, CLUTCH WEIGHT 1

4WV-16626-00-00

Unavailable

4

BEARING, ONE WAY

4SH-16664-00-00

$154.99

5

COLLAR

90387-2611Y-00

Unavailable

6

CIRCLIP

93410-46079-00

$8.49

7

BEARING

93306-20228-00

Unavailable

8

CIRCLIP(47Y)

99009-35500-00

$8.49

9

NUT

90179-22005-00

$28.99

10

COLLAR(8CJ)

90387-2508C-00

$46.99

11

O-RING (M01)

93210-25755-00

$5.60

12

PRI. SLIDING SHEAVE

4WV-17620-10-00

Unavailable

13

OIL SEAL

93101-31167-00

$17.99

14

WEIGHT

4WV-17632-00-00

$17.49

15

CAM

5KM-17623-00-00

$75.99

16

SLIDER

4WV-17653-00-00

Unavailable

17

SPACER 1

4WV-17654-01-00

Unavailable

18

O-RING

93211-594A4-00

Unavailable

19

STOPPER

4WV-17639-10-00

Unavailable

20

SCREW, PAN HEAD

98517-04012-00

Unavailable

21

WASHER, PLATE(4HC)

90201-047R9-00

Unavailable

22

COLLAR

90387-1910N-00

Unavailable

23

V-BELT

4WV-17641-01-00

Unavailable

24

SHEAVE, PRIMARY FIXED

4WV-17611-10-00

Unavailable

25

WASHER, PLATE

90201-190T7-00

Unavailable

26

NUT

90179-16005-00

Unavailable

27

SECONDARY FIXED SHEAVE COMP.

4WV-17660-10-00

Unavailable

28

SECONDARY SLIDING SHEAVE

4WV-17670-00-00

Unavailable

29

OIL SEAL

93104-41119-00

Unavailable

30

O-RING (10L)

93210-44545-00

Unavailable

31

PIN, GUIDE

4CW-17664-00-00

Unavailable

32

SPRING, COMPRESSION

90501-623L6-00

Unavailable

33

SEAT, SECONDARY SPRING

4WV-17684-00-00

Unavailable

34

SEAT, SPRING

4WV-17644-00-00

Unavailable

35

NUT (5G3)

90170-36279-00

Unavailable

36

NUT

90179-16005-00

Unavailable
