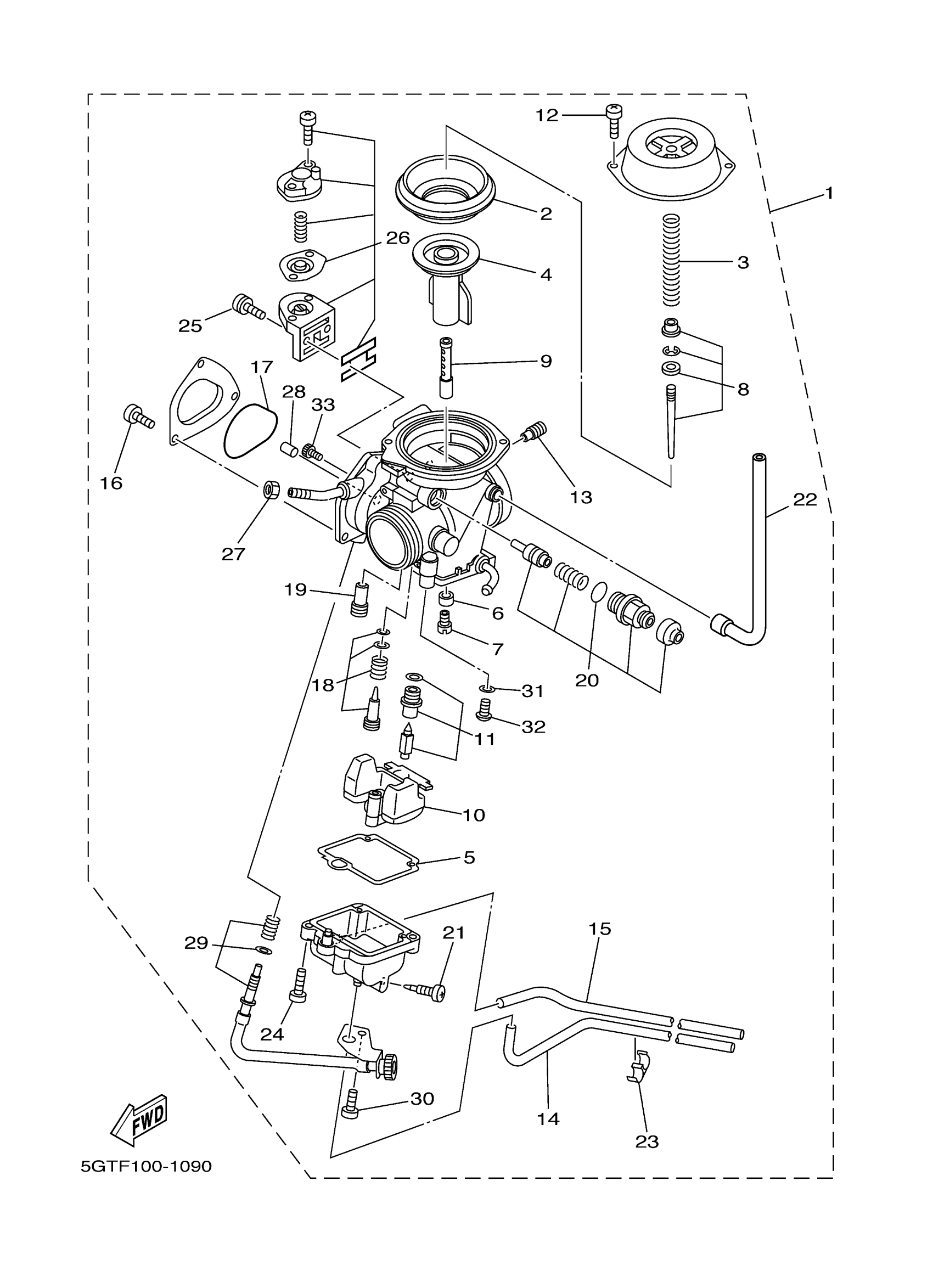

Yamaha YFM600FN (GRIZZLY YFM600FHN GRIZZLY REALTREE HUNTER) 5GTE 2001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5GT-14901-00-00

Unavailable

2

DIAPHRAGM

4WV-24411-00-00

$76.99

3

. SPRING, DIAPHRAGM

4WV-14933-00-00

Unavailable

4

. VALVE

4WV-14272-00-00

Unavailable

5

O-RING

4WV-14147-20-00

$21.99

6

RING

4WV-14918-00-00

$9.99

7

. JET, MAIN (1438)

620-1423E-57-00

Unavailable

8

. NEEDLE SET

5GT-1490J-00-00

Unavailable

9

NOZZLE, MAIN

4WV-14941-90-00

Unavailable

10

FLOAT

4WV-14985-00-00

$92.99

11

NEEDLE VALVE ASSY

4WV-14190-28-00

Unavailable

12

GASKET, EXHAUST

98507-05008-00

$3.55

13

. PILOT JET, AIR (07)

239-14172-07-00

Unavailable

14

. PIPE

4WV-14996-00-00

Unavailable

15

. PIPE

4WV-14193-00-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

O-RING

4WV-14147-10-00

Unavailable

18

PILOT SCREW SET

4WV-14105-01-00

Unavailable

19

JET, PILOT (# 42.5)

4HR-14142-42-00

Unavailable

20

STARTER SET

4WV-1410A-00-00

Unavailable

21

PLUG, DRAIN

12R-14191-00-00

Unavailable

22

. PIPE

4WV-14197-00-00

Unavailable

23

CLIP

87M-14137-00-00

Unavailable

24

SCREW,PAN HEAD

98502-05014-00

Unavailable

25

SCREW, PAN HEAD

98517-04012-00

Unavailable

26

. DIAPHRAGM ASSY

4WV-14940-00-00

Unavailable

27

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

28

GUIDE, CABLE

1UY-14155-00-00

Unavailable

29

THROTTLE SCREW SET

4WV-14103-01-00

Unavailable

30

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

31

. WASHER

2H7-14952-00-00

Unavailable

32

SCREW,BINDING

98907-08014-00

Unavailable

33

WASHER

5GH-14952-00-00

Unavailable
