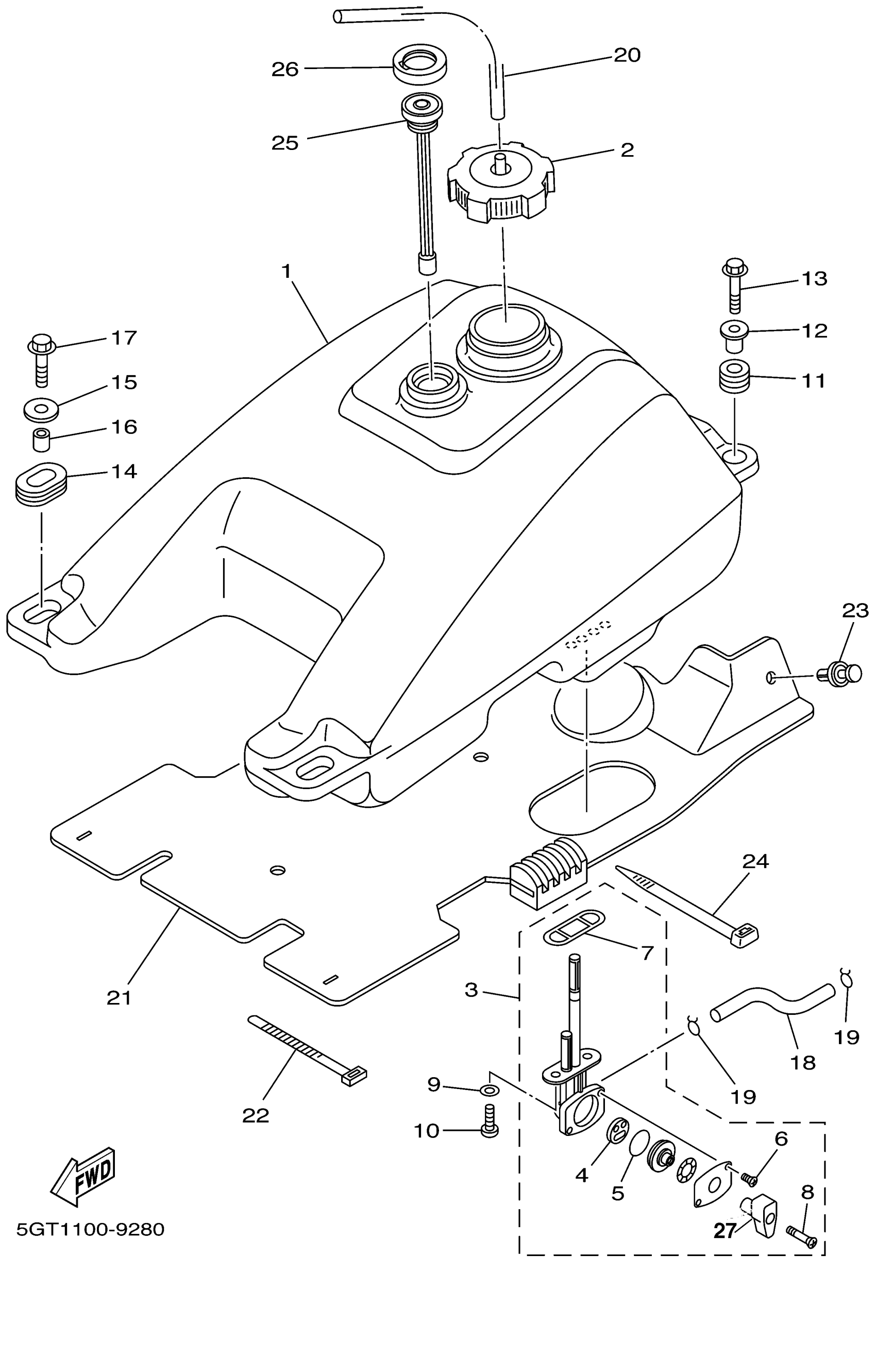

Yamaha YFM600FMC (GRIZZLY) 5GT7 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4WV-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

5GT-24500-01-00

$66.99

4

VALVE PACKING

3AC-24523-00-00

$12.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

O-RING

4X8-24512-00-00

$8.99

8

SCREW, FLAT

98707-04016-00

$8.49

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

SCREW 256241430000

90149-06011-00

$5.60

11

GROMMET (4V1)

90480-18290-00

$8.49

12

COLLAR (36R)

90387-066J1-00

$8.49

13

BOLT, FLANGE

95817-06030-00

$4.29

14

GROMMET(38W)

90480-01400-00

$13.49

15

WASHER, PLATE

90201-06090-00

$5.60

16

COLLAR (1T2)

90387-07598-00

Unavailable

17

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

18

HOSE (L200)

90445-10752-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

HOSE (L600)

90445-083J5-00

Unavailable

21

DAMPER, PLATE 1

5GT-2414H-00-00

Unavailable

21

DAMPER, PLATE 1

5GT-2414H-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-11-00

Unavailable

23

RIVET(4JH)

90269-07076-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

FUEL METER ASSY

4SH-24260-11-00

Unavailable

26

HOUSING, FUEL METER

4SH-24261-00-00

Unavailable

27

LEVER, COCK

4HM-24524-00-00

Unavailable
