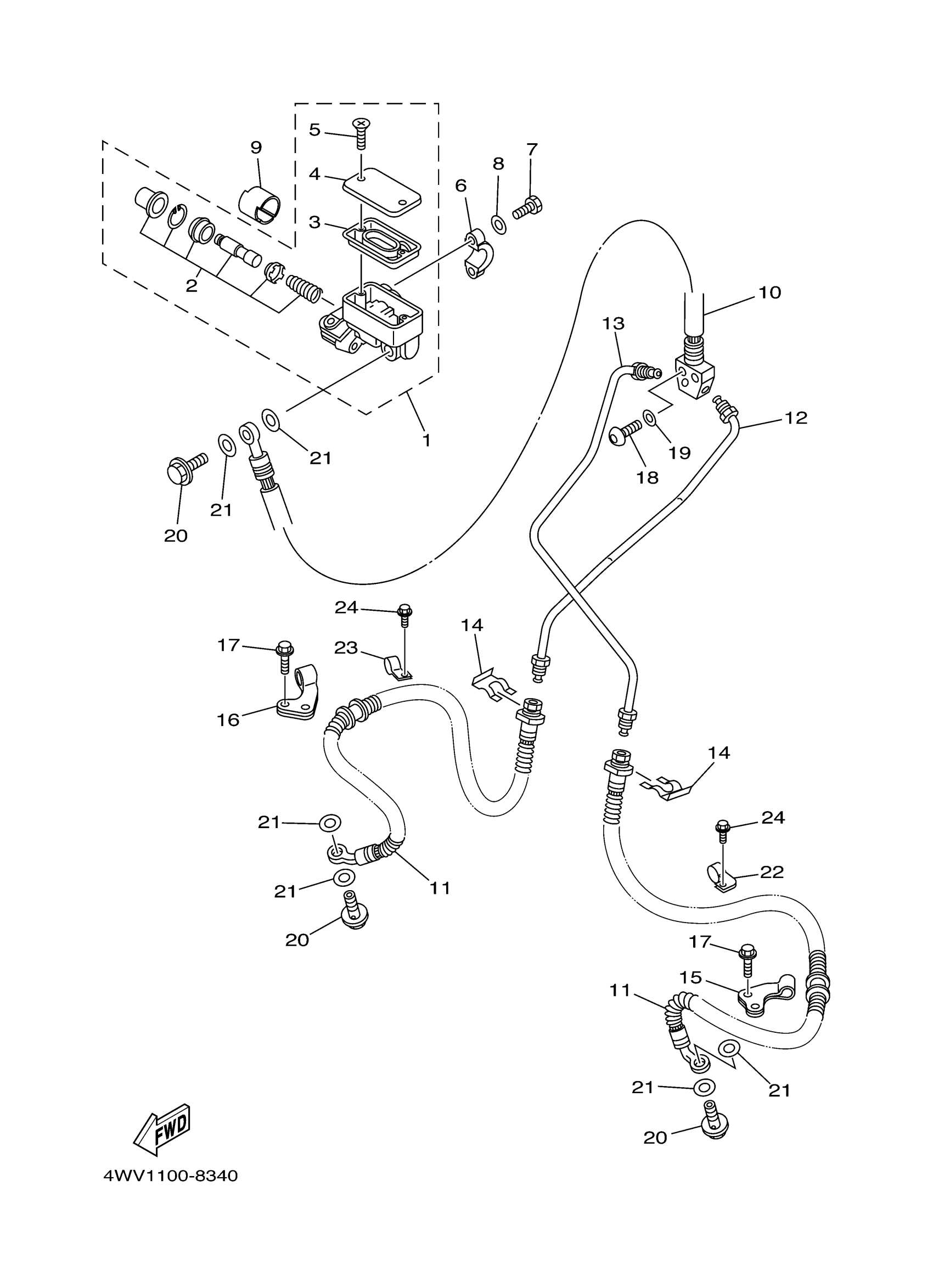

Yamaha YFM600FMC (GRIZZLY) 5GT7 2000 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4WV-25870-00-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER(6TA)

92907-06600-00

$2.72

9

COLLAR

1UY-26259-00-00

$19.49

10

HOSE, BRAKE 1

4WV-25872-00-00

Unavailable

11

HOSE, BRAKE 2

4WV-25873-01-00

Unavailable

12

PIPE, BRAKE

4WV-25871-00-00

Unavailable

13

PIPE, BRAKE 2

4WV-25882-00-00

Unavailable

14

CIRCLIP

2GU-25866-00-00

$9.99

15

HOLDER, BRAKE HOSE 1

4GB-25875-00-00

Unavailable

16

HOLDER, BRAKE HOSE 2

4GB-25876-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

HOLDER, BRAKE HOSE 1

4WV-25875-00-00

Unavailable

23

HOLDER, BRAKE HOSE 2

4WV-25876-00-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable
