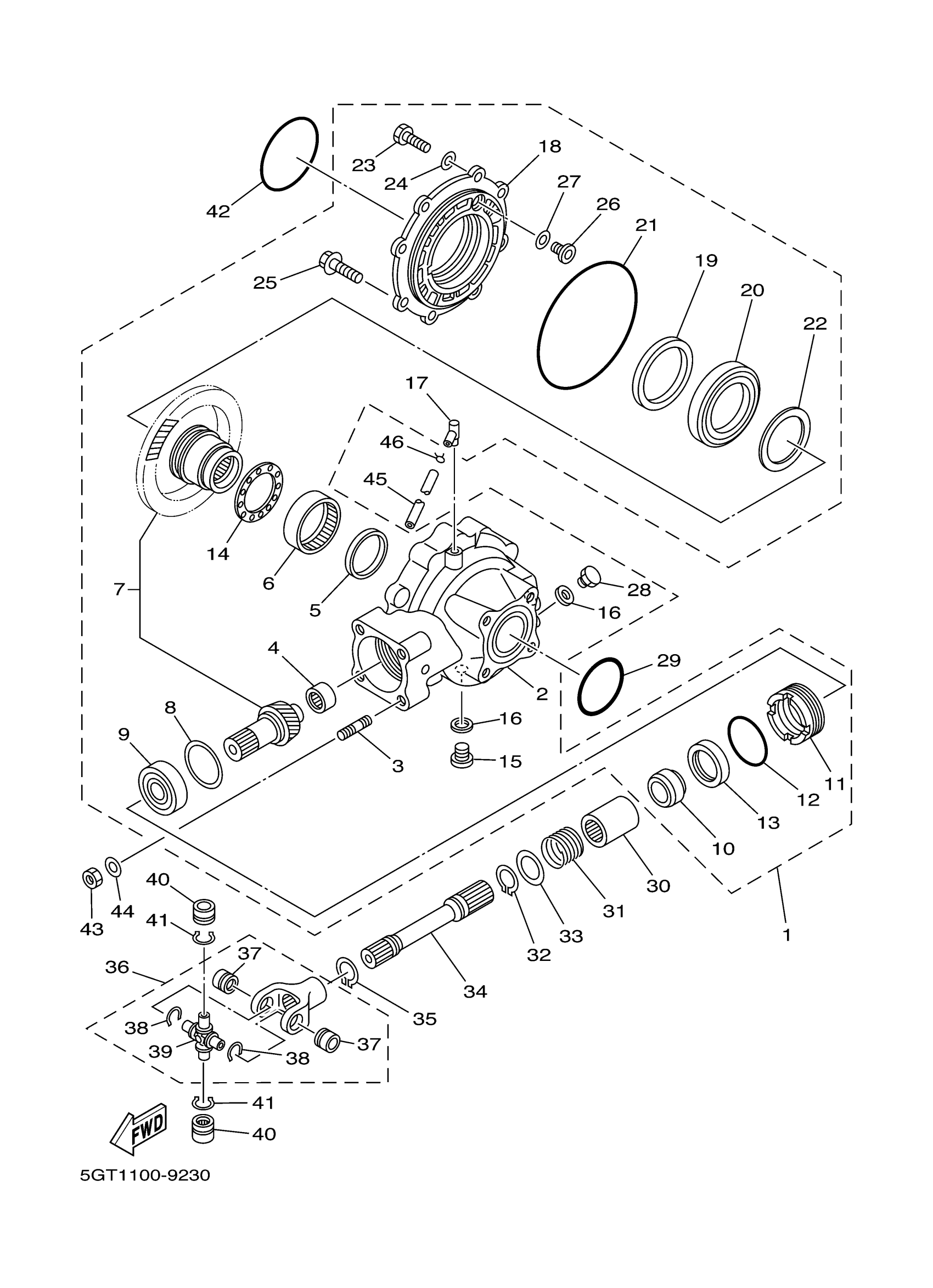

Yamaha YFM600FMC (GRIZZLY) 5GT7 2000 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
5GT-46101-01-00
Unavailable
2
HOUSING, DRIVE SHAFT
4WV-46151-01-00
Unavailable
3
BOLT, STUD (5E5)
90116-10361-00
Unavailable
9
BEARING(4KB)
93306-30568-00
Unavailable
10
COLLAR (24W)
90387-255H9-00
Unavailable
14
WASHER, THRUST
24W-46118-00-12
Unavailable
14
WASHER, THRUST
24W-46118-00-14
Unavailable
14
WASHER, THRUST
24W-46118-00-16
Unavailable
14
WASHER, THRUST
24W-46118-00-18
Unavailable
14
WASHER, THRUST
24W-46118-00-20
Unavailable
15
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
16
GASKET
214-11198-01-00
Unavailable
17
BREATHER
5UG-15371-00-00
Unavailable
18
HOUSING, BEARING
3HN-46152-01-00
Unavailable
19
OIL SEAL (22U)
93102-65277-00
Unavailable
20
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
21
O-RING(59V)
93211-54698-00
Unavailable
22
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
22
. SHIM, RING GEAR (030T)
24W-46117-00-30
Unavailable
22
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
22
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
23
BOLT, HEXAGON
97017-08025-00
Unavailable
24
WASHER(6TA)
92907-08600-00
Unavailable
25
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
26
STOPPER, RING GEAR
1FK-46156-00-00
Unavailable
27
SHIM, STOPPER
1FK-46157-00-15
Unavailable
27
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
28
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
29
O-RING
93210-65705-00
Unavailable
30
COUPLING, GEAR
5GT-46123-00-00
Unavailable
31
SPRING, COMPRESSION
90501-260L6-00
Unavailable
32
CIRCLIP(JF7)
99009-25400-00
Unavailable
33
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
34
SHAFT, DRIVE
5GT-46172-00-00
Unavailable
35
CIRCLIP (537)
93410-22039-00
Unavailable
36
CROSS JOINT COMP. 2
4KD-46107-10-00
Unavailable
37
BEARING(2HR)
93399-99926-00
Unavailable
38
CIRCLIP (4X7)
93440-20088-00
Unavailable
39
SPIDER
2HR-46187-00-00
Unavailable
40
BEARING(2HR)
93399-99926-00
Unavailable
41
CIRCLIP (4X7)
93440-20088-00
Unavailable
42
O-RING(59V)
93210-85706-00
Unavailable
43
NUT (22F)
90179-10394-00
Unavailable
44
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
45
HOSE (L1700)
90445-070G6-00
Unavailable
46
CLIP (1J7)
90467-07029-00
Unavailable
