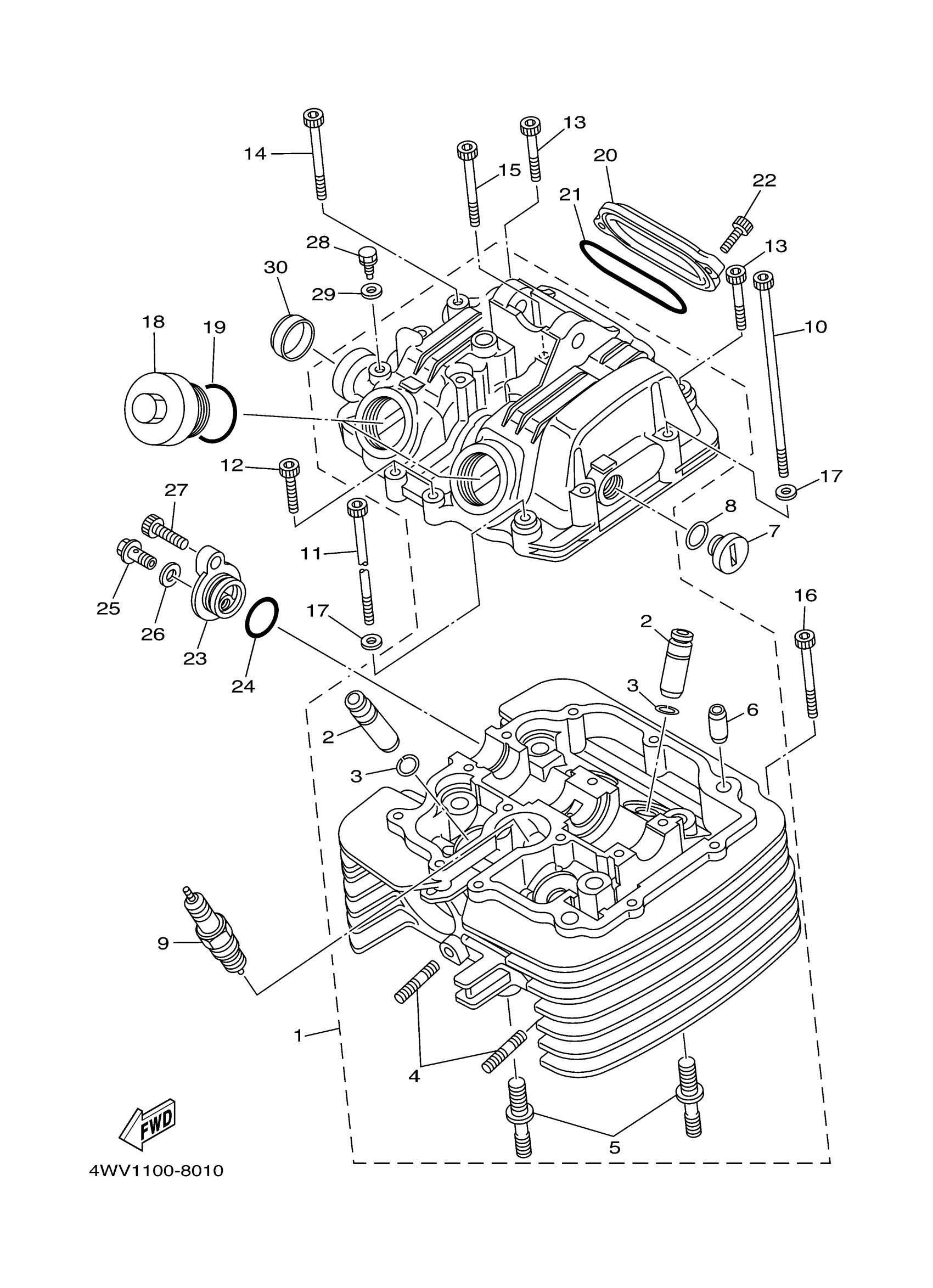

Yamaha YFM600FMC (GRIZZLY) 5GT7 2000 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3TB-11101-02-00

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD(1JK)

90116-06475-00

$8.49

5

. BOLT, STUD

90116-10378-00

Unavailable

6

PIN, DOWEL(2VG)

99530-10116-00

$4.25

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

8

O-RING(36Y)

93210-13657-00

$7.49

9

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

10

BOLT, SOCKET

91317-06125-00

$17.99

11

BOLT,SOCKET

91317-06115-00

Unavailable

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

BOLT,SOCKET

91317-06055-00

$4.19

15

BOLT(2NX)

90109-063E9-00

$4.77

16

BOLT,SOCKET

91317-06050-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

Unavailable

19

O-RING (341)

93210-32172-00

Unavailable

20

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

Unavailable

21

O-RING (4X7)

93210-62446-00

Unavailable

22

BOLT,SOCKET

91317-06018-00

Unavailable

23

CAP, TENSIONER CASE

3TB-12215-01-00

Unavailable

24

O-RING (5Y1)

93210-19522-00

Unavailable

25

BOLT UNION 137131650000

90401-06001-00

Unavailable

26

GASKET (4V2)

90430-06166-00

Unavailable

27

BOLT,SOCKET

91317-06020-00

Unavailable

28

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

29

GASKET 256113960000

90430-06014-00

Unavailable

30

PLUG(3AJ)

90338-22207-00

Unavailable
