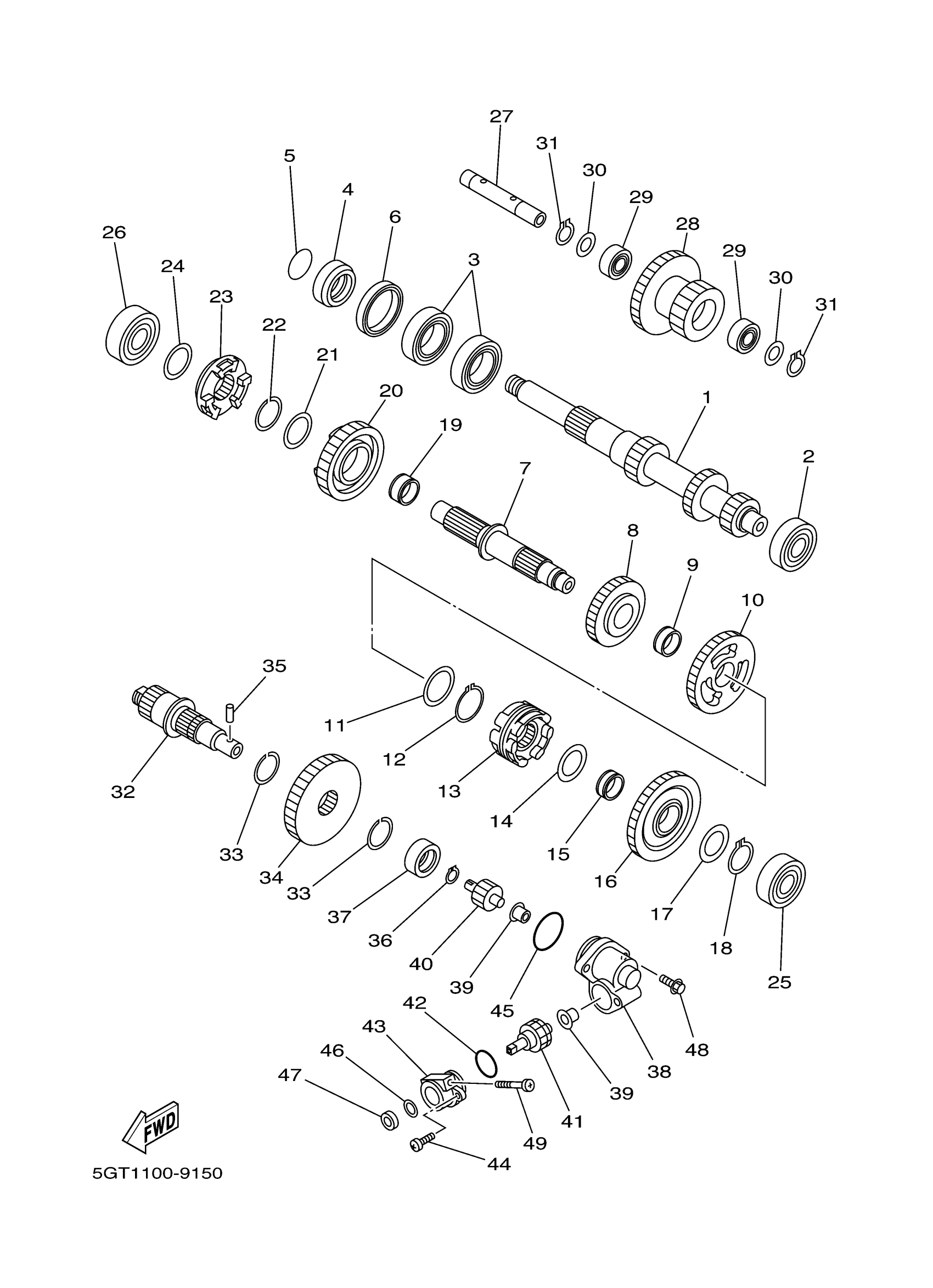

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5GT-17681-00-00

Unavailable

2

BEARING(1GJ)

93306-20458-00

$43.99

3

BEARING(2HR)

93306-00612-00

$47.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING(1XX)

93210-26741-00

$7.49

6

OIL, SEAL (70R)

93102-42322-00

$17.99

7

AXLE, DRIVE

5GT-17421-00-00

Unavailable

8

GEAR, MIDDLE DRIVE (25 T)

5GT-17582-00-00

Unavailable

9

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$34.99

10

GEAR, HIGH WHEEL (30 T)

5GT-17223-00-00

Unavailable

11

WASHER, PLATE(8BB)

90201-250R9-00

$5.60

12

CIRCLIP (4L0)

93440-25084-00

$5.60

13

CLUTCH, DOG

5GT-17285-00-00

Unavailable

14

WASHER PLATE 168171160000

90201-20278-00

$10.49

15

. BEARING

93310-420F2-00

Unavailable

16

GEAR, LOW WHEEL (38 T)

5GT-17233-00-00

Unavailable

17

WASHER PLATE 168171160000

90201-20278-00

$10.49

18

CIRCLIP (525)

93410-20038-00

Unavailable

19

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$34.99

20

GEAR, REVERSE WHEEL 2 (27 T)

5GT-17253-00-00

Unavailable

21

WASHER, PLATE(8BB)

90201-250R9-00

$5.60

22

CIRCLIP (4L0)

93440-25084-00

$5.60

23

HOLDER

5GT-17286-00-00

Unavailable

24

WASHER PLATE 168171160000

90201-20278-00

$10.49

25

BEARING(2GV)

93306-30209-00

Unavailable

26

BEARING

93306-30441-00

Unavailable

27

AXLE, IDLE

4WV-17432-00-00

Unavailable

28

GEAR, REVERSE WHEEL 1

4WV-17243-00-00

Unavailable

29

BEARING, CYLINDRICAL(37F)

93311-51554-00

Unavailable

30

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable

31

CIRCLIP(1AR)

99009-15400-00

Unavailable

32

SHAFT

5GT-17523-00-00

Unavailable

33

CIRCLIP (4L0)

93440-25084-00

$5.60

34

GEAR, MIDDLE DRIVEN (34 T)

5GT-17583-00-00

Unavailable

35

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

36

CIRCLIP(59V)

93440-14155-00

Unavailable

37

BEARING

93311-42077-00

Unavailable

38

HOUSING, TACHOMETER GEAR

4WV-17811-00-00

Unavailable

39

BUSH (214-17843-00)

90381-08002-00

Unavailable

40

GEAR, DRIVE

4WV-17831-00-00

Unavailable

41

GEAR, DRIVEN

4WV-17841-00-00

Unavailable

42

O-RING(59V)

93210-24253-00

Unavailable

43

HOUSING, TACHOMETER GEAR

59V-17811-00-00

Unavailable

44

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

45

O-RING (341)

93210-32172-00

Unavailable

46

WASHER (692)

90201-12M34-00

Unavailable

47

OIL SEAL (30X)

93102-08307-00

Unavailable

48

. BOLT, FLANGE

95027-06020-00

Unavailable

49

SCREW, PAN

98517-06030-00

Unavailable
