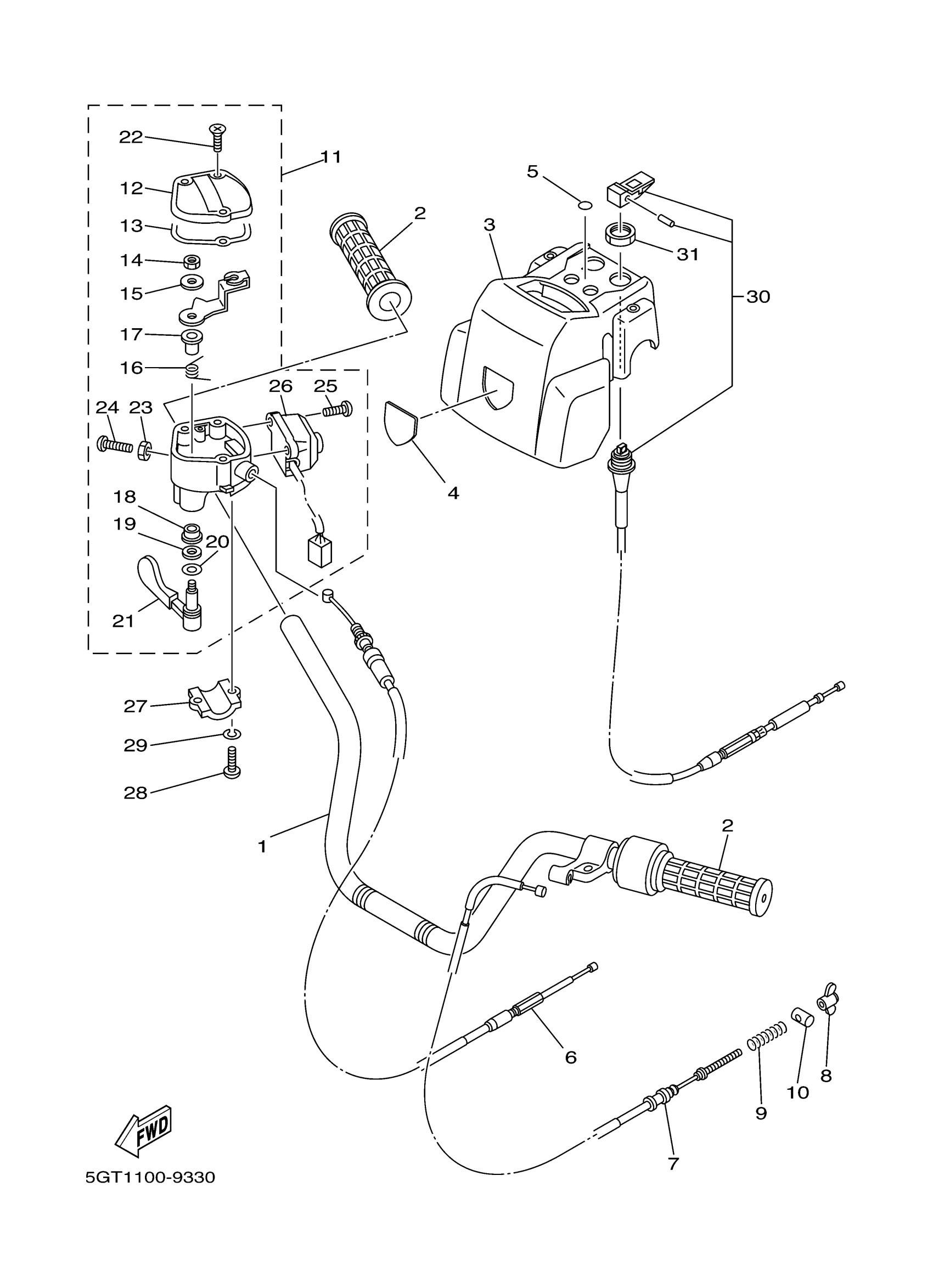

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

2HR-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR,HANDLEBAR

4WV-26124-01-00

Unavailable

4

EMBLEM 3D

5FE-26232-00-00

Unavailable

5

TUNING FORK MARK

5GT-2836B-10-00

$16.49

6

CABLE, THROTTLE 1

4WV-26311-00-00

$30.99

7

CABLE, BRAKE

4WV-26341-00-00

$67.99

8

NUT, AJUSTING

20E-26343-00-00

$27.99

9

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

THROTTLE LEVER ASSY

4WV-26250-12-00

Unavailable

12

. CAP, GEAR

4KB-2628F-00-00

Unavailable

13

GASKET

4KB-2628G-00-00

$13.49

14

NUT, U

95617-05100-00

$9.49

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

SPRING

1NV-26304-00-00

Unavailable

17

COLLAR

1NV-26259-01-00

Unavailable

18

COLLAR

1NV-2625K-00-00

Unavailable

19

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

20

WASHER

1NV-26129-00-00

Unavailable

21

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

22

SCREW(3HE)

90149-04278-00

Unavailable

23

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

24

SCREW, PAN HEAD

98517-05020-00

Unavailable

25

. SCREW, WITH WASHER

97607-04210-00

Unavailable

26

SWITCH, HANDLE 1

4WV-83976-00-00

Unavailable

27

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

28

SCREW, PAN HEAD

98517-05020-00

Unavailable

29

WASHER(1RW)

92907-05600-00

Unavailable

30

CABLE, STARTER 1

4WV-26331-00-00

Unavailable

31

Nut

8G8-26333-00-00

Unavailable
