Description

Price

1

COLUMN, STEERING 2

5GT-23813-01-00

Unavailable

2

ARM, PITMAN

4WV-23816-00-00

Unavailable

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08050-00

$2.44

6

PLUG, TAPER(2HR)

90336-28053-00

$10.49

7

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

8

OIL SEAL(1UY)

93112-31011-00

$9.49

9

BRACKET, STEERING LOWER

4KB-23868-01-00

Unavailable

10

BOLT, HEXAGON

97017-08060-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR(85G)

90387-106T4-00

$14.99

13

WASHER, PLATE(3FC)

90201-142M6-00

$9.49

14

NUT, SELF-LOCKING(3FC)

90185-14150-00

$14.99

15

CLIP(3YF)

90468-16191-00

$8.49

16

ROD, TIE

4WV-23831-00-00

Unavailable

17

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

18

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

19

NUT (3WP1)

95317-10700-00

Unavailable

20

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

21

ROD, TIE

4WV-23831-00-00

Unavailable

22

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

23

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

24

NUT (3WP1)

95317-10700-00

Unavailable

25

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

26

NUT, CASTLE

90171-10001-00

Unavailable

27

WASHER, PLATE

92990-10600-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

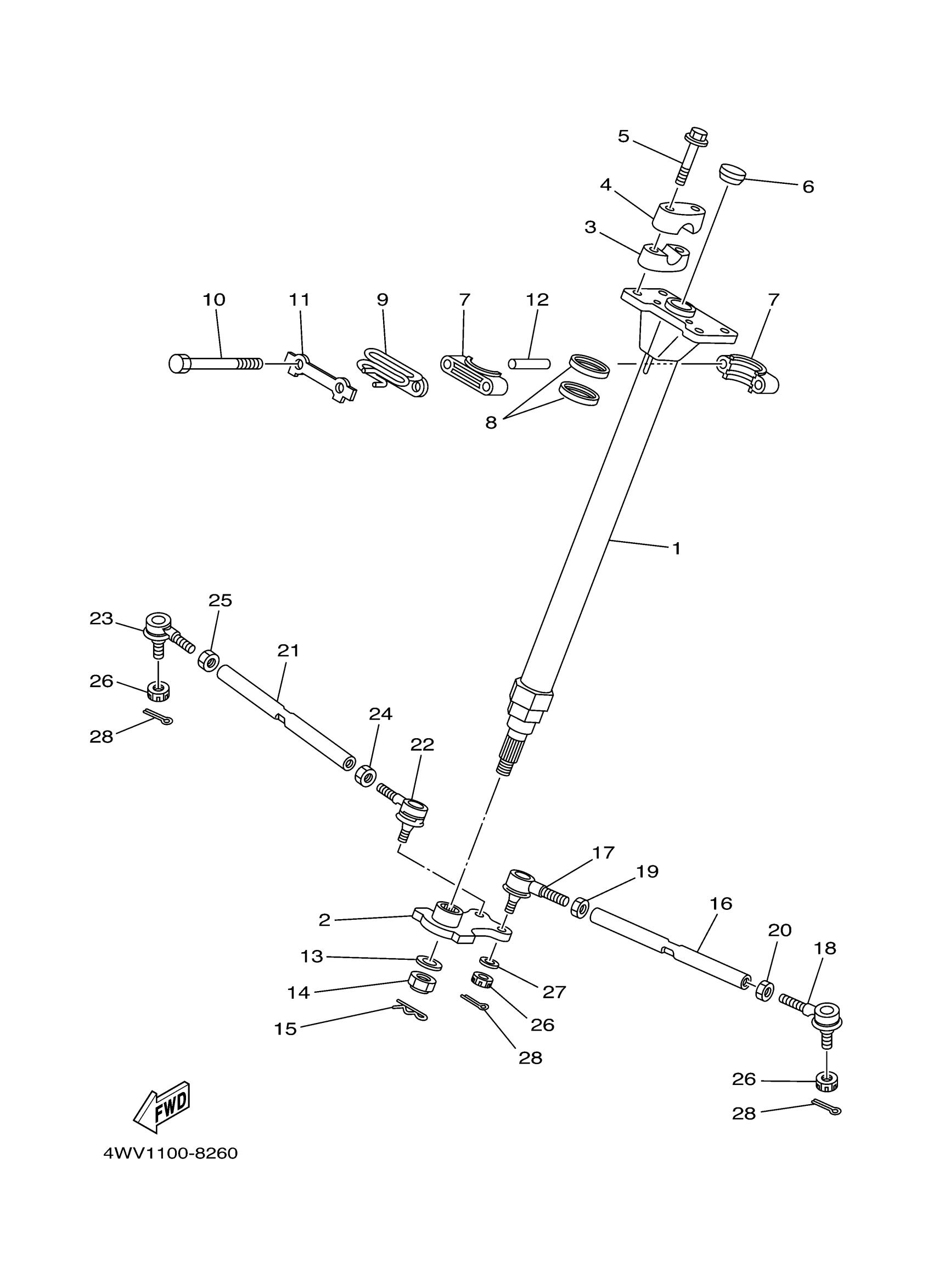

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 STEERING Diagram

COLUMN, STEERING 2

ARM, PITMAN

HOLDER, HANDLE LOWER

HOLDER, HANDLE UPPER

BOLT, FLANGE

PLUG, TAPER(2HR)

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

WASHER, LOCK 1

COLLAR(85G)

WASHER, PLATE(3FC)

NUT, SELF-LOCKING(3FC)

CLIP(3YF)

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

NUT, CASTLE

WASHER, PLATE

PIN, COTTER
