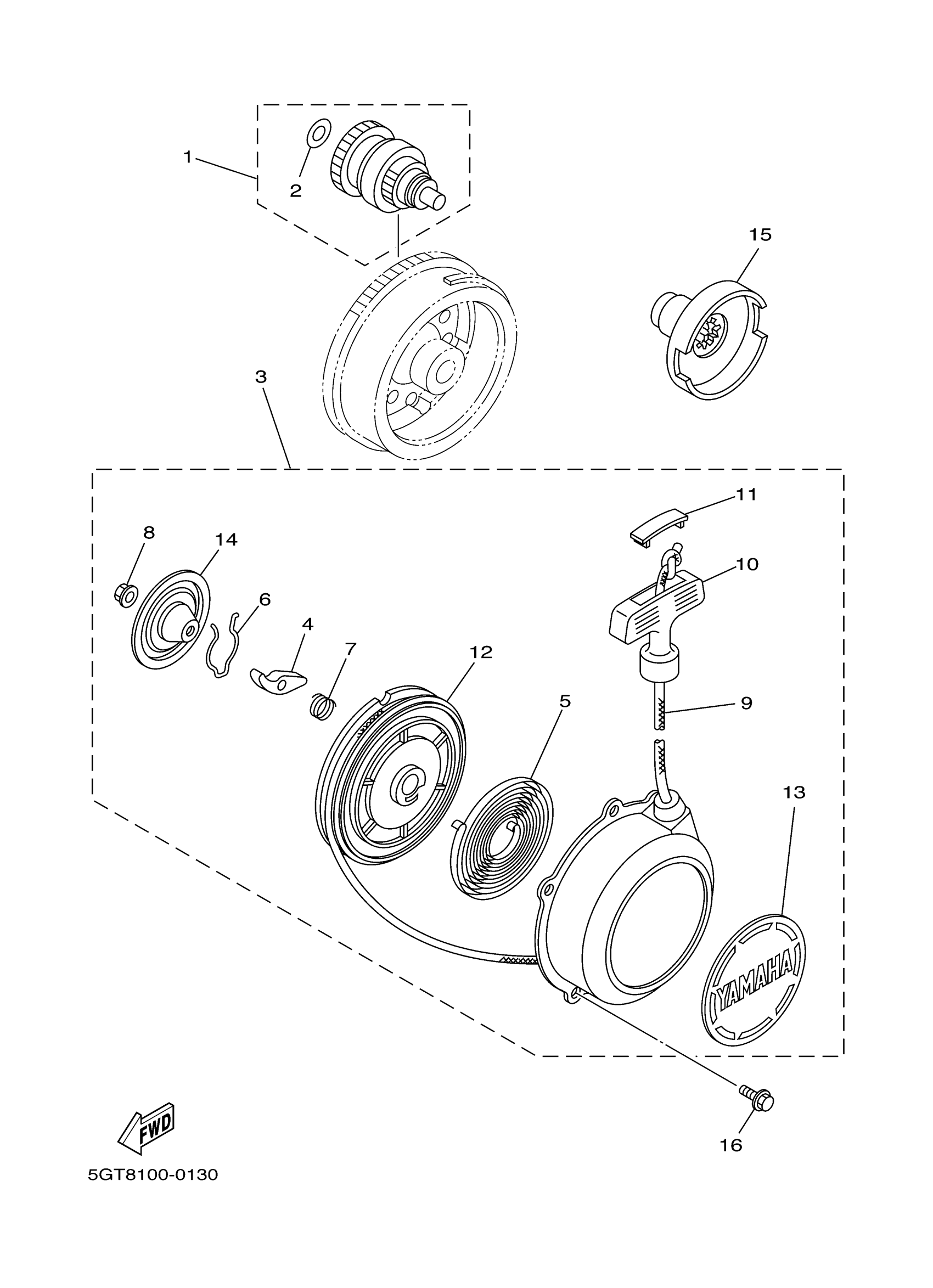

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 STARTER Diagram

#

Description
Price

1

IDLE GEAR ASSY

4WV-15650-02-00

Unavailable

2

WASHER, PLATE(1RE)

90201-125L6-00

$9.49

3

STARTER ASSY

5GT-15710-00-00

Unavailable

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

NUT, FLANGE

95702-06500-00

$2.39

9

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

10

HANDLE, STARTER

3X3-15755-00-00

$29.99

11

CAP, KNOB

21V-15779-00-00

$7.99

12

DRUM, SHEAVE

24W-15714-00-00

$57.99

13

EMBLEM

5GH-15443-01-00

Unavailable

14

PLATE, DRIVE

21V-15716-00-00

$27.99

15

PULLEY, STARTER

1UY-15723-00-00

$126.99

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
