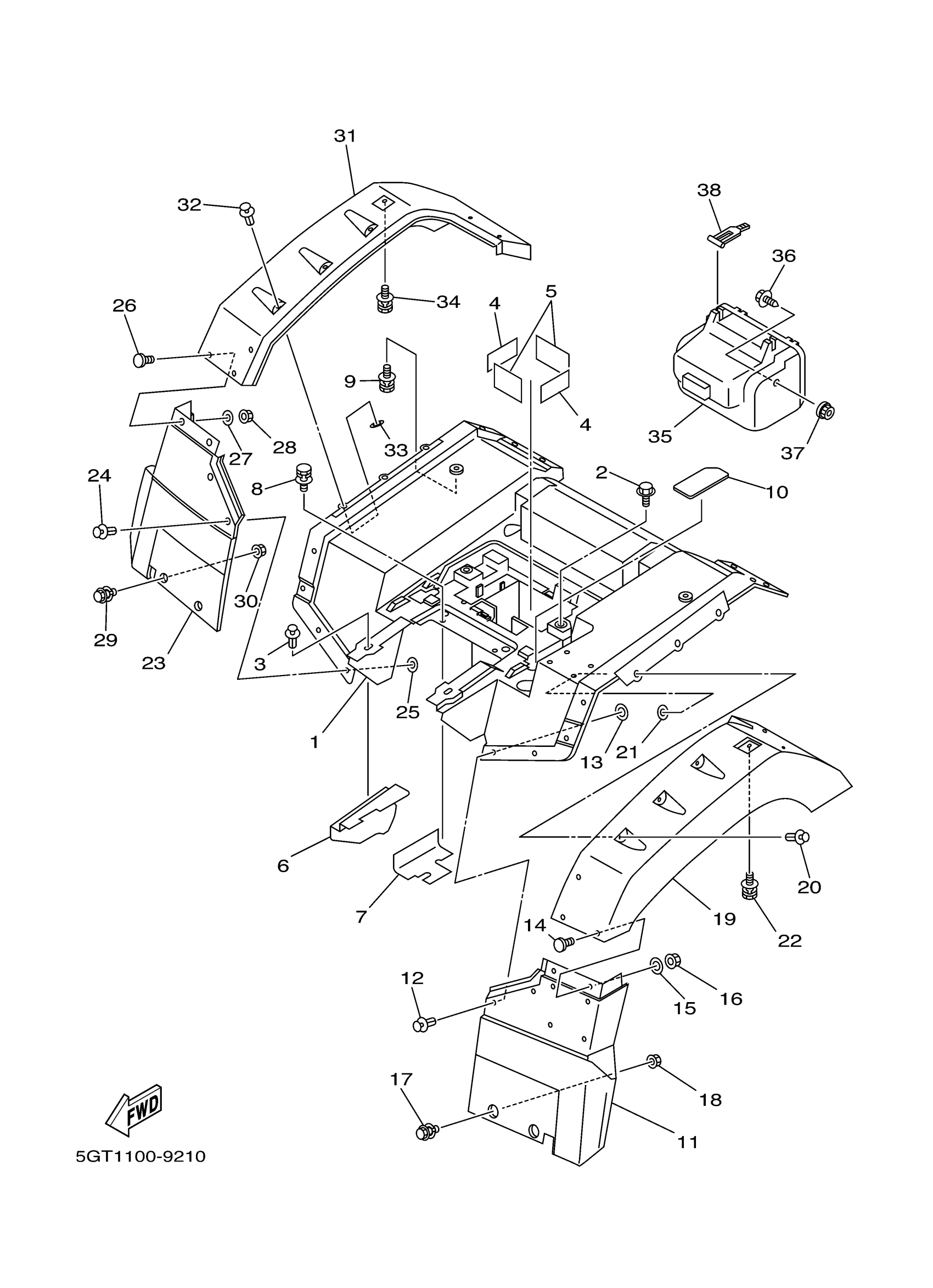

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP. (PDG)

4WV-W2161-11-00

Unavailable

2

BOLT, FLANGE

90105-06109-00

$9.49

3

RIVET(4JH)

90269-07076-00

$7.49

4

DAMPER

1YW-21638-00-00

Unavailable

5

DAMPER 1

3TB-28415-01-00

Unavailable

6

DAMPER 2

4WV-21639-00-00

Unavailable

7

DAMPER

4WV-21649-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06152-00

$7.49

9

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

10

SEAL (PASTEL DEEP GREEN)

5GT-21669-10-00

Unavailable

11

FLAP ASSY 1

5GT-W2168-00-00

Unavailable

12

RIVET(4JH)

90269-07076-00

$7.49

13

WASHER, PLATE(J41)

90201-076J4-00

$9.49

14

SCREW, BINDING (8R1)

90154-05011-00

$4.29

15

WASHER, PLATE 8067717800

90201-05029-00

$8.49

16

NUT, NYLON

95707-05300-00

Unavailable

17

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

19

FLAP 3

4WV-2162H-00-00

Unavailable

20

RIVET(4JH)

90269-07076-00

$7.49

21

WASHER, PLATE(J41)

90201-076J4-00

$9.49

22

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

23

FLAP

4WV-21691-00-00

Unavailable

24

RIVET(4JH)

90269-07076-00

$7.49

25

WASHER, PLATE(J41)

90201-076J4-00

$9.49

26

SCREW, BINDING (8R1)

90154-05011-00

$4.29

27

WASHER, PLATE 8067717800

90201-05029-00

$8.49

28

NUT, NYLON

95707-05300-00

Unavailable

29

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

30

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

31

FLAP 4

4WV-2162J-00-00

Unavailable

32

RIVET(4JH)

90269-07076-00

$7.49

33

WASHER, PLATE(J41)

90201-076J4-00

$9.49

34

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

35

BOX COMP.

5GT-2160A-00-00

Unavailable

36

BOLT, WITH WASHER

90119-06226-00

Unavailable

37

NUT,SELF-LOCKING

95607-06200-00

Unavailable

38

BAND

59V-21646-00-00

Unavailable
