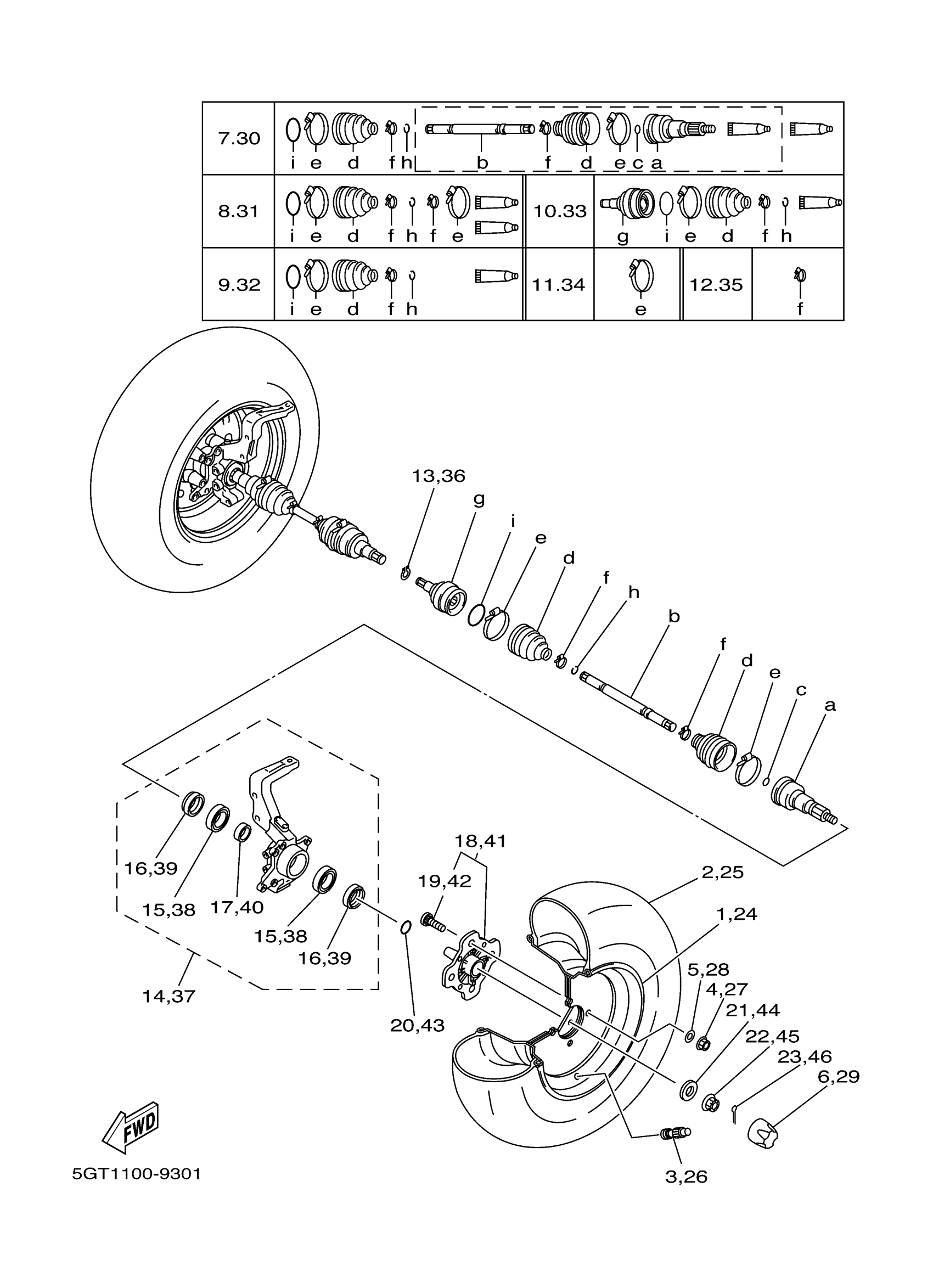

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 FRONT WHEEL Diagram
#
1
WHEEL COMP.
5GT-25180-30-00
Unavailable
2
TIRE (AT25 X 8 - 12)
94108-1215F-00
Unavailable
7
BALL JOINT SET
5GT-2510F-00-00
Unavailable
8
BOOT SET (BALL JOINT)
5GT-2510G-00-00
Unavailable
9
BOOT SET(DBL OFFSET)
5GT-2510H-00-00
Unavailable
10
DBL OFFSET JOINT
5GT-2510J-00-00
Unavailable
11
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
12
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
14
STEERING KNUCKLE ASSY (LEFT)
5GT-23501-00-00
Unavailable
16
OIL SEAL(3HN)
93102-38417-00
Unavailable
17
SPACER(2HR)
90560-30325-00
Unavailable
18
HUB, FRONT
5GT-25111-00-00
Unavailable
19
BOLT, SERRATION
90114-10011-00
Unavailable
20
O-RING(47X)
93210-27666-00
Unavailable
21
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
22
NUT, CASTLE
90171-16001-00
Unavailable
23
PIN, COTTER
91490-30030-00
Unavailable
24
WHEEL COMP.
5GT-25180-30-00
Unavailable
25
TIRE (AT25 X 8 - 12)
94108-1215F-00
Unavailable
30
BALL JOINT SET
5GT-2510F-00-00
Unavailable
31
BOOT SET (BALL JOINT)
5GT-2510G-00-00
Unavailable
32
BOOT SET(DBL OFFSET)
5GT-2510H-00-00
Unavailable
33
DBL OFFSET JOINT
5GT-2510J-00-00
Unavailable
34
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
35
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
37
STEERING KNUCKLE ASSY (RIGHT)
5GT-23502-00-00
Unavailable
39
OIL SEAL(3HN)
93102-38417-00
Unavailable
40
SPACER(2HR)
90560-30325-00
Unavailable
41
HUB, FRONT
5GT-25111-00-00
Unavailable
42
BOLT, SERRATION
90114-10011-00
Unavailable
43
O-RING(47X)
93210-27666-00
Unavailable
44
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
45
NUT, CASTLE
90171-16001-00
Unavailable
46
PIN, COTTER
91490-30030-00
Unavailable
