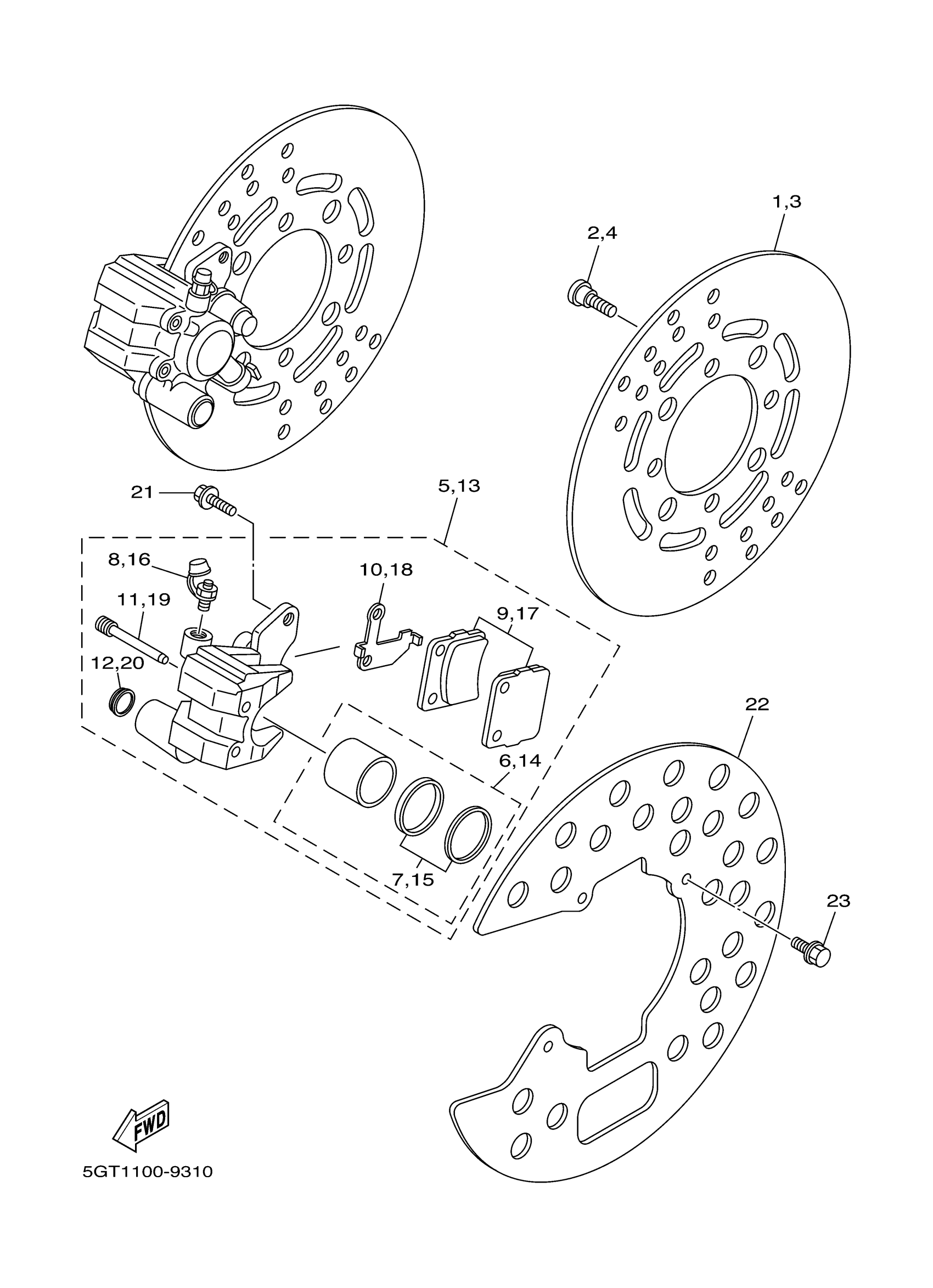

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 FRONT BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

4WV-2582T-00-00

Unavailable

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE

4WV-2582T-00-00

Unavailable

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY (LEFT)

4WV-2580T-00-00

Unavailable

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

7

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

4WV-W0045-00-00

$44.99

10

SHIM, CALIPER

3GD-25827-00-00

Unavailable

11

PIN, PAD

3GD-25933-00-00

$28.99

12

DUST PLUG

3GD-25916-00-00

$7.99

13

CALIPER ASSY (RIGHT)

4WV-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

15

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

16

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

17

BRAKE PAD KIT

4WV-W0045-00-00

$44.99

18

SHIM, CALIPER

3GD-25828-00-00

Unavailable

19

PIN, PAD

3GD-25933-00-00

$28.99

20

DUST PLUG

3GD-25916-00-00

$7.99

21

BOLT, FLANGE

95817-08014-00

Unavailable

22

RING,WHEEL 1 (LEFT)

4WV-2514A-01-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable
