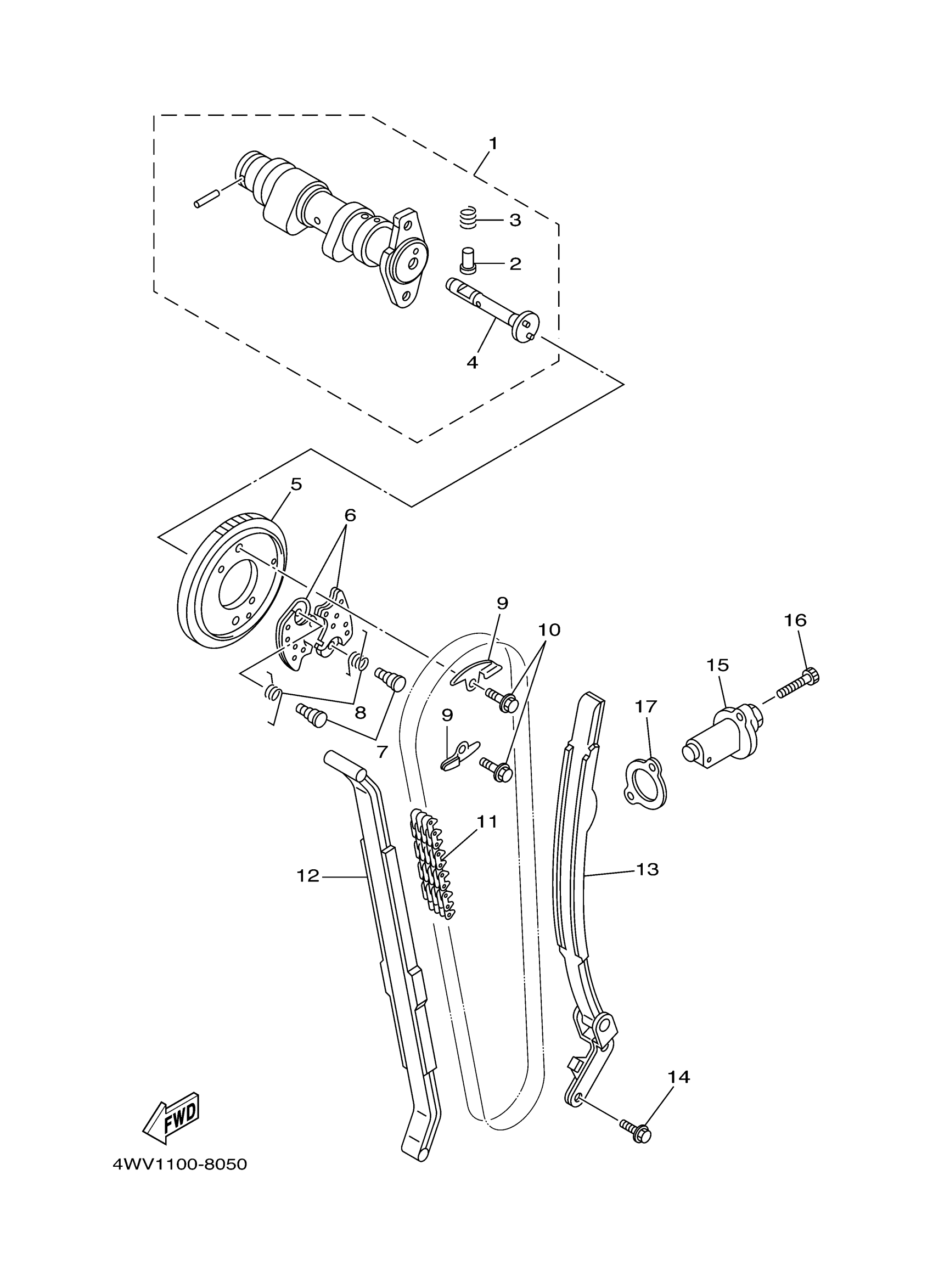

Yamaha YFM600FHMC (GRIZZLY REALTREE) 5GTA 2000 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

4WV-12170-00-00

Unavailable

2

PIN, DECOMPRESSION LEVER

3YF-12284-00-00

Unavailable

3

. SPRING, COMPRESSION

90501-051L0-00

Unavailable

4

LEVER, DECOMPRESSION SPRING

3YF-12290-00-00

$85.99

5

SPROCKET, CAM CHAIN

3YF-12176-00-00

$105.99

6

CAM, DECOMPRESSION

4WV-12288-00-00

Unavailable

7

SHAFT, TENSIONER

3YF-12247-00-00

Unavailable

8

SPRING

3YF-12216-00-00

Unavailable

9

PLATE, GUIDE STOPPER 1

4WV-12233-00-00

Unavailable

10

BOLT, FLANGE

90105-07004-00

$5.60

11

CHAIN

94591-40126-00

$63.99

12

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

13

GUIDE, STOPPER 2

34K-12241-01-00

$123.99

14

BOLT, FLANGE

95817-06016-00

$2.75

15

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$141.99

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
