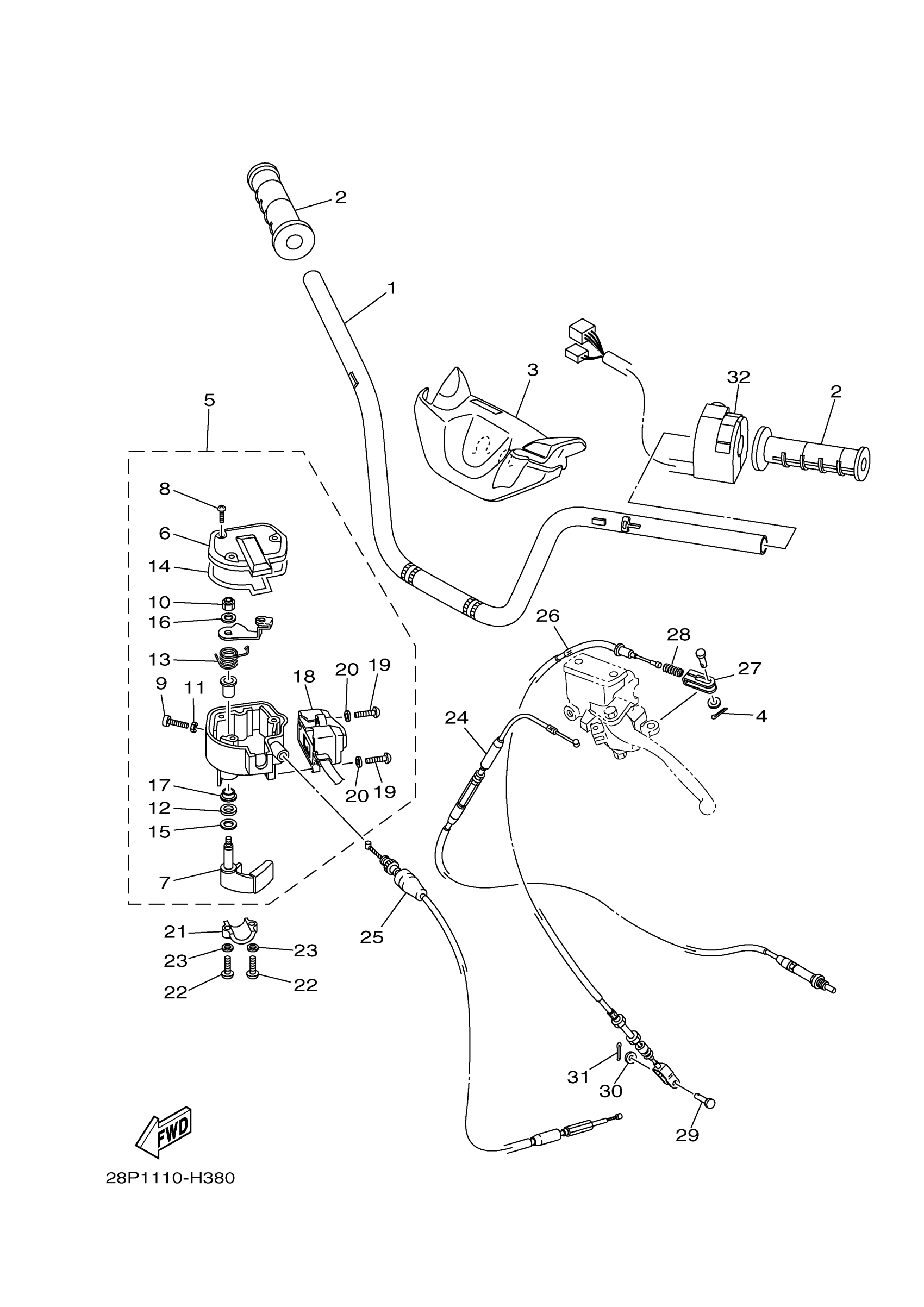

Yamaha YFM5FGZL (GRIZZLY 550 FI 4WD) 28P7 2010 STEERING HANDLE CABLE Diagram
#
Description
Price
1
HANDLEBAR
3B4-26111-20-00
Unavailable
3
PROTECTOR, HANDLEBAR
3B4-26124-11-00
Unavailable
4
PIN, COTTER
91490-16020-00
Unavailable
5
THROTTLE LEVER ASSY
28P-26250-05-00
Unavailable
16
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
17
COLLAR
1NV-2625K-00-00
Unavailable
18
SWITCH, HANDLE 1
5KM-83976-23-00
Unavailable
19
SCREW, PAN HEAD
98517-04016-00
Unavailable
20
WASHER(JF2)
92907-04600-00
Unavailable
21
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
23
WASHER, PLAIN (646)
92990-05600-00
Unavailable
24
CABLE, CONTROL 2
3B4-2637F-10-00
Unavailable
25
CABLE, THROTTLE 1
3B4-26311-20-00
Unavailable
26
CABLE, BRAKE
3B4-26341-00-00
Unavailable
27
JOINT, CABLE
3B4-26347-00-00
Unavailable
28
SPRING, CONPRESSION (7R4)
90501-08665-00
Unavailable
29
PIN, CLEVIS (3X3)
90240-06076-00
Unavailable
30
WASHER(6TA)
92907-06200-00
Unavailable
31
PIN, COTTER (648)
91490-20015-00
Unavailable
32
SWITCH, HANDLE 4
28P-83972-01-00
Unavailable
