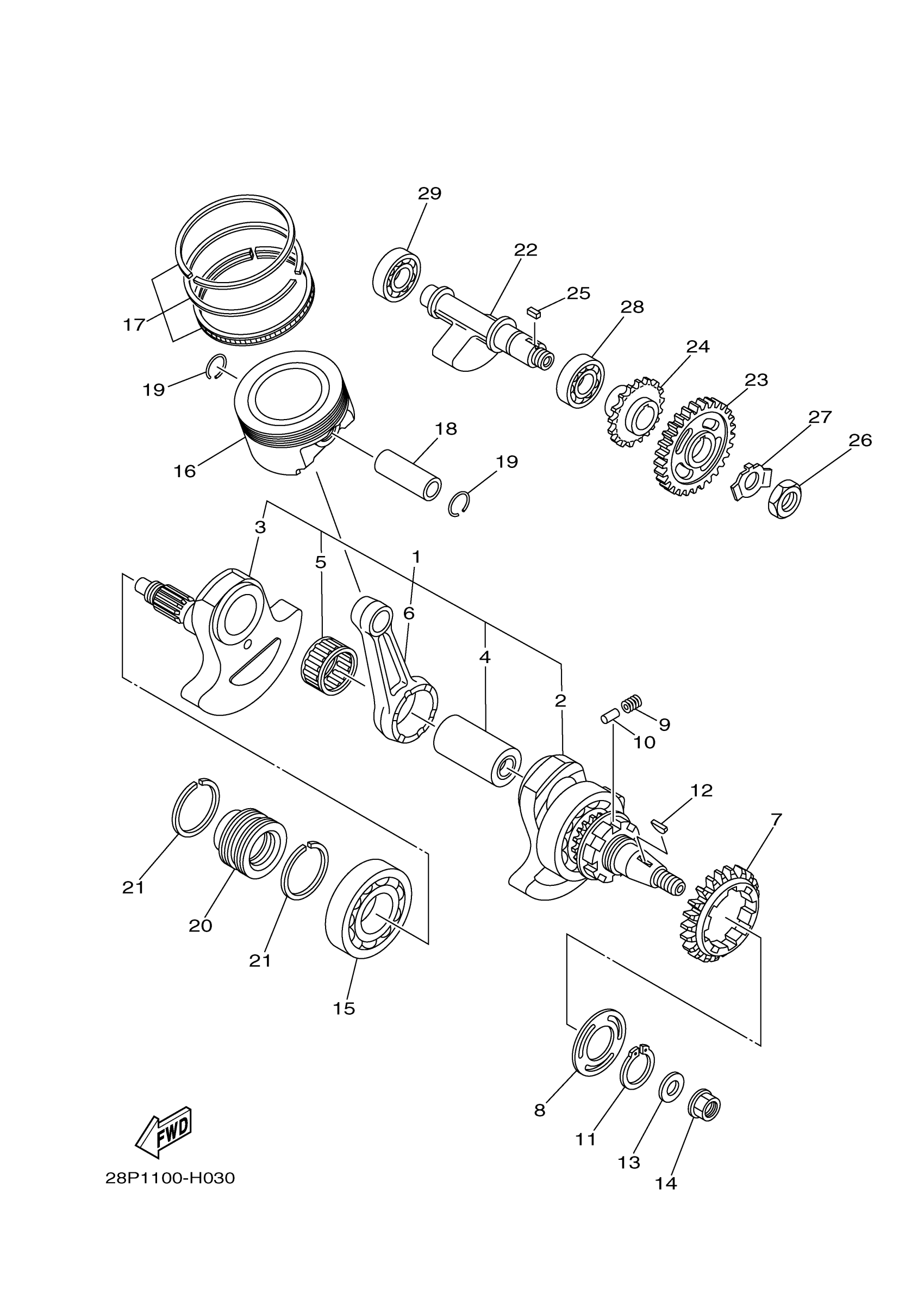

Yamaha YFM5FGZL (GRIZZLY 550 FI 4WD) 28P7 2010 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

28P-11400-00-00

Unavailable

2

CRANK SUB ASSY 1

28P-11401-09-00

Unavailable

3

CRANK SUB ASSY 2

28P-11402-09-00

Unavailable

4

PIN, CRANK 1

1S3-11681-00-00

$102.99

5

BEARING

93310-84017-00

$104.99

6

ROD, CONNECTING

1S3-11651-00-00

$151.99

7

GEAR, DRIVE

5KM-11536-10-00

Unavailable

8

WASHER, BEARING COVER

5KM-11565-00-00

$14.49

9

SPRING, COMPRESSION

90501-220A1-00

$7.49

10

PIN, DOWEL

93606-09002-00

$4.14

11

CIRCLIP(6U2)

93410-35M10-00

$7.49

12

KEY, WOODRUFF

90280-05001-00

$12.49

13

WASHER, PLATE

90201-16013-00

$13.99

14

NUT

90179-16004-00

$15.99

15

BEARING

93306-30810-00

$75.99

16

PISTON (STD)

28P-11631-10-00

Unavailable

17

PISTON RING SET (STD)

28P-11603-00-00

Unavailable

18

PIN, PISTON

5VK-11633-00-00

Unavailable

19

CIRCLIP

93450-24154-00

Unavailable

20

SPACER 1

3B4-16181-00-00

Unavailable

21

SEAL, CRANK

3B4-11447-00-00

Unavailable

22

WEIGHT 1

28P-11454-00-00

Unavailable

23

GEAR, BALANCE WEIGHT

3B4-11531-00-00

Unavailable

24

SPROCKET, DRIVE

3B4-13354-00-00

Unavailable

25

KEY, STRAIGHT

90282-05007-00

Unavailable

26

NUT

90170-18003-00

Unavailable

27

WASHER, LOCK

90215-18001-00

Unavailable

28

BEARING(3RR)

93306-30560-00

Unavailable

29

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable
