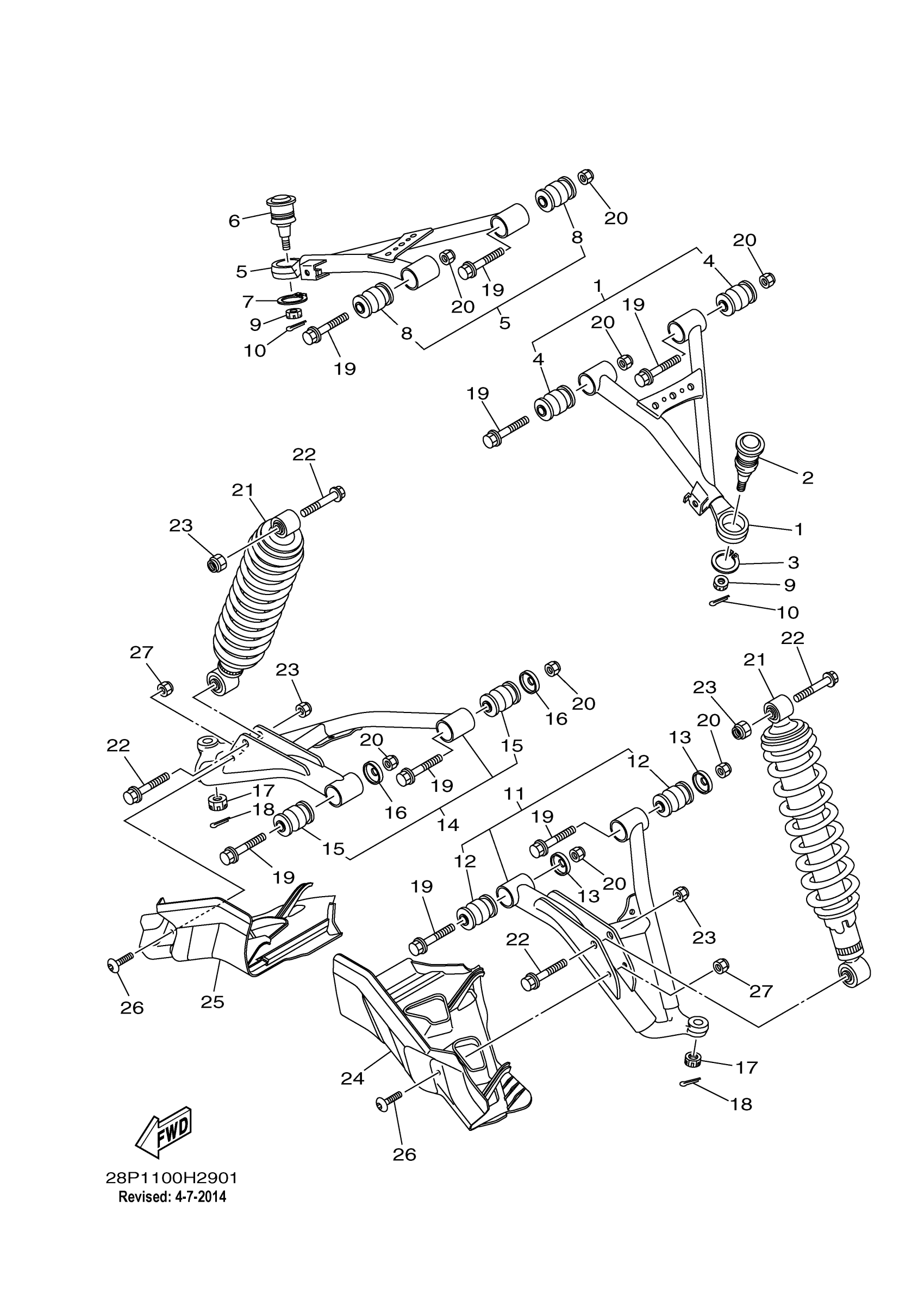

Yamaha YFM5FGYL (GRIZZLY 550 FI 4WD) 28P11 2009 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
5
FRONT UPPER ARM CO
1HP-F3550-01-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
BOLT, FLANGE
90105-10222-00
Unavailable
20
NUT, SELF-LOCKING
90185-10012-00
Unavailable
21
SHOCK ABSORBER ASSY
28P-23350-00-00
Unavailable
22
BOLT, FLANGE
90105-10131-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
Unavailable
24
COVER, UNDER 1
28P-23123-00-00
Unavailable
25
COVER, LOWER 2
28P-23133-00-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
27
NUT, NYLON
95707-06300-00
Unavailable
