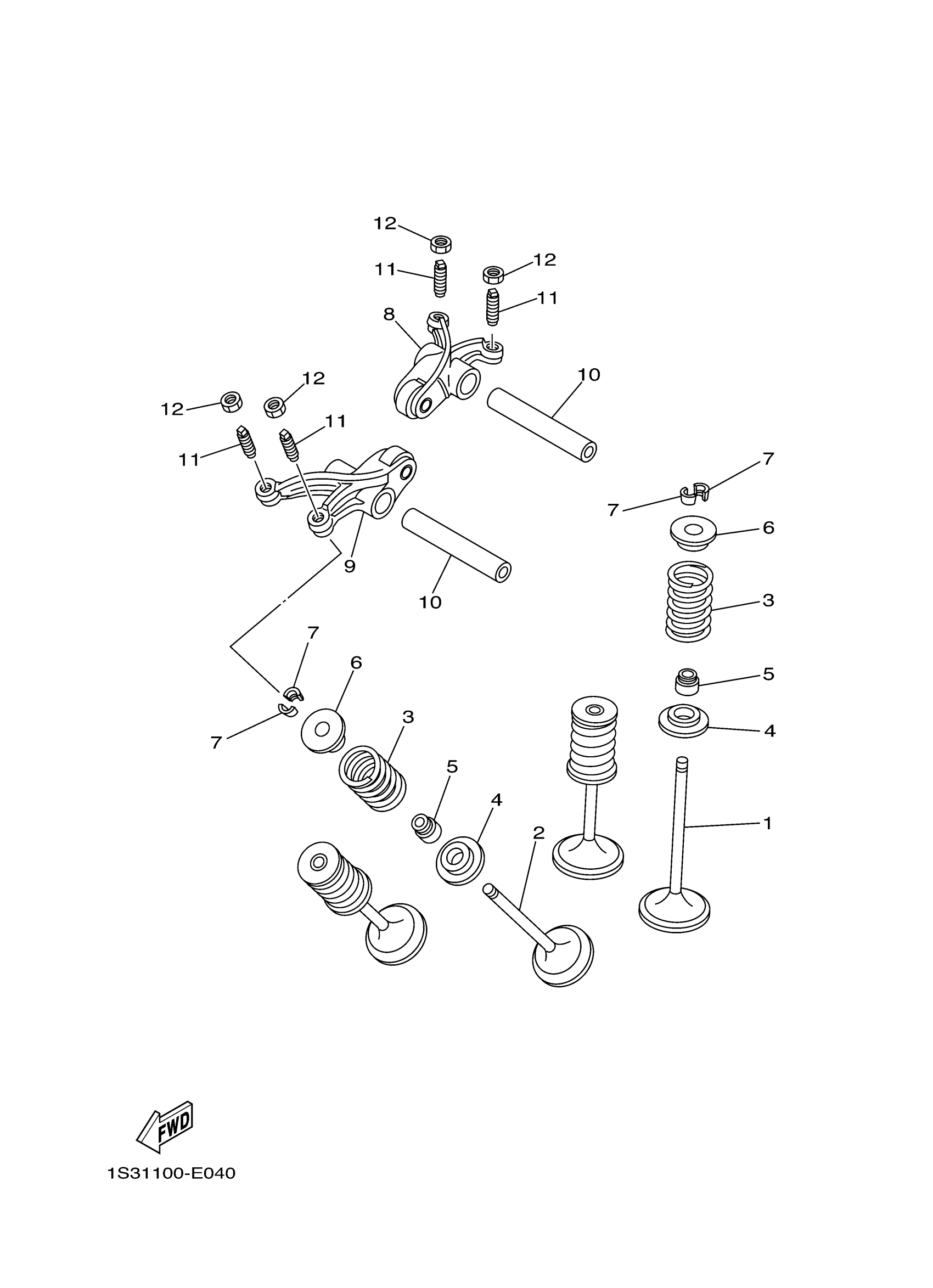

Yamaha YFM5FGPSEY (GRIZZLY 550 FI EPS 4WD SPECIAL EDITION) 34D8 2009 VALVE Diagram

VALVE, INTAKE

28P-12111-00-00

$44.99

VALVE, EXHAUST

28P-12121-00-00

$72.99

SPRING, VALVE INNER

5VK-12113-00-00

$19.49

SEAT, VALVE SPRING

3YF-12116-00-00

$8.99

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

28P-12151-00-00

Unavailable

ARM, VALVE ROCKER 2

28P-12161-00-00

Unavailable

SHAFT, ROCKER

5VK-12146-00-00

$22.99

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$9.99

NUT HEXAGON 371121580000

90170-06128-00

$8.49
