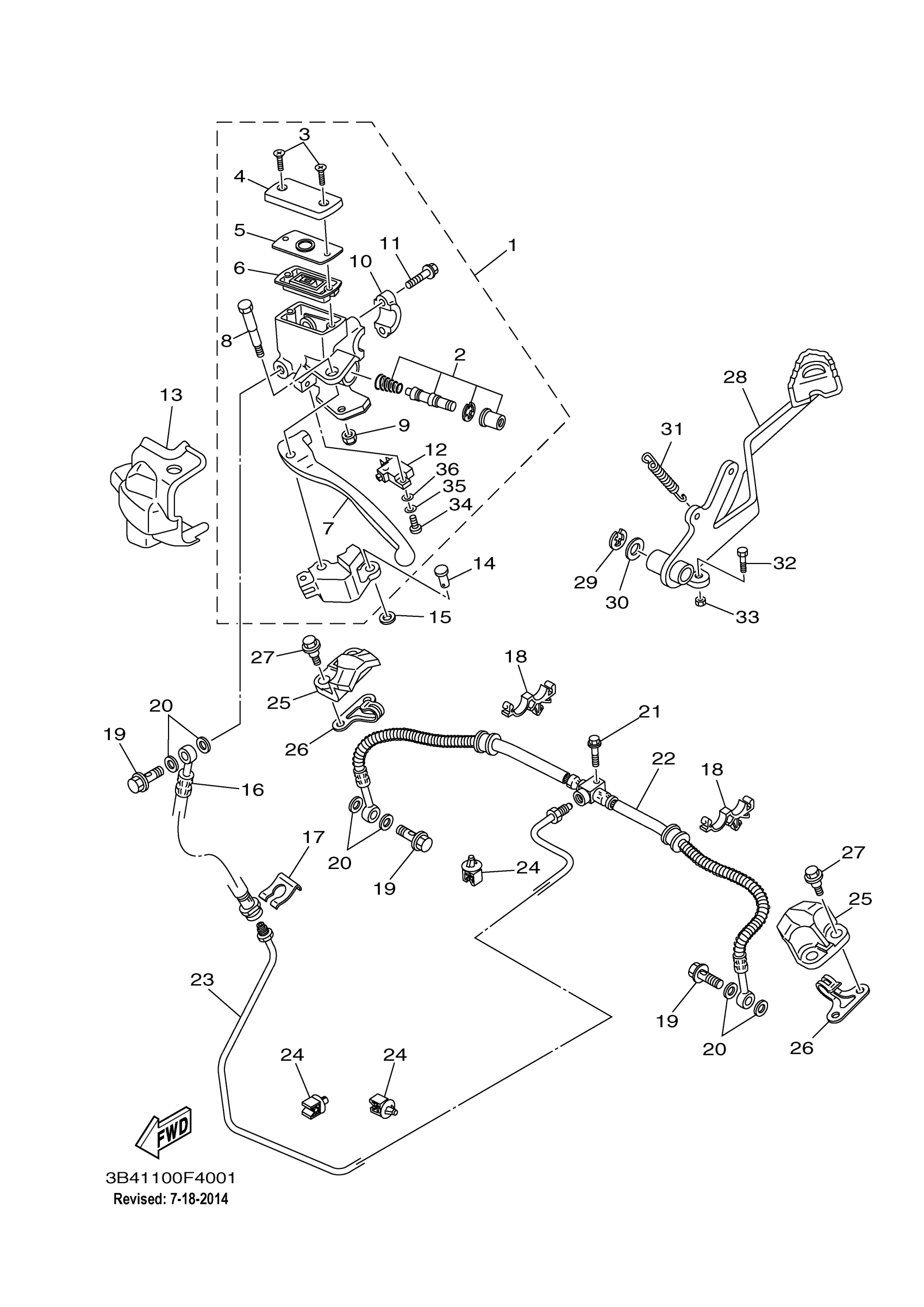

Yamaha YFM5FGPSEY (GRIZZLY 550 FI EPS 4WD SPECIAL EDITION) 34D8 2009 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3B4-2583V-00-00

$383.99

2

CYLINDER KIT, MASTER

5LP-W0041-00-00

Unavailable

3

SCREW, FLAT

98707-04012-00

$2.18

4

CAP, RESERVOIR

3GM-25852-22-00

$63.99

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$10.99

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

7

LEVER 1

3B4-83912-00-00

$57.99

8

BOLT, LEVER

3B4-2589F-10-00

$14.49

9

NUT 1

3B4-26294-00-00

$4.78

10

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

11

BOLT

5EB-26332-00-00

$7.99

12

FRONT STOP SWITCH ASSY

3B4-83980-00-00

Unavailable

13

COVER, HANDLE LEVER 1

3B4-26372-00-00

$7.99

14

PIN W/HOLE 307181180000

90240-08013-00

$8.49

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

HOSE, BRAKE 1

1HP-F5872-00-00

Unavailable

17

CIRCLIP

2GU-25866-00-00

Unavailable

18

CLAMP

90464-16006-00

Unavailable

19

BOLT, UNION

90401-10015-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

BOLT, FLANGE

95822-06025-00

Unavailable

22

HOSE, BRAKE

1HP-F5874-00-00

Unavailable

23

PIPE, BRAKE 2

1HP-F5882-02-00

Unavailable

24

CLAMP 1

5KM-81677-00-00

Unavailable

25

COVER 1

3B4-25715-00-00

Unavailable

26

HOLDER, BRAKE HOSE 5

3B4-2588F-00-00

Unavailable

27

BOLT

90109-06172-00

Unavailable

28

PEDAL, BRAKE

1HP-F7211-01-00

Unavailable

29

CIRCLIP

99006-10600-00

Unavailable

30

WASHER, PLATE

90201-14023-00

Unavailable

31

SPRING, TENSION

90506-20014-00

Unavailable

32

BOLT

97012-06014-00

Unavailable

33

NUT(6TA)

95317-06600-00

Unavailable

34

SCREW, PAN HEAD

98511-04012-00

Unavailable

35

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

36

WASHER, PLAIN (646)

92990-04600-00

Unavailable
