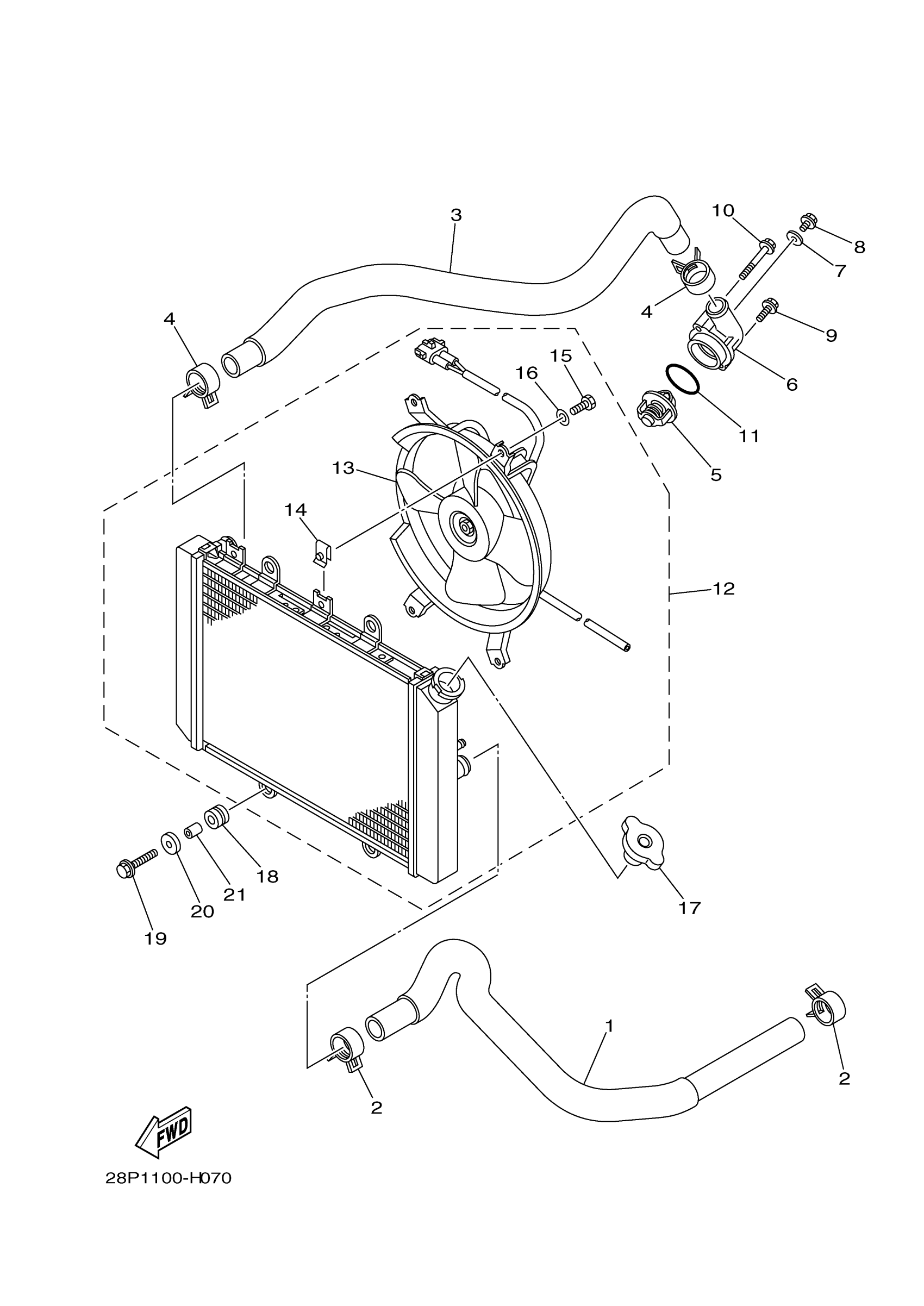

Yamaha YFM5FGPSEY (GRIZZLY 550 FI EPS 4WD SPECIAL EDITION) 34D8 2009 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

1HP-E2576-00-00

$42.99

2

CLIP

90467-26189-00

$7.49

3

HOSE 3

1HP-E2578-00-00

$30.99

4

CLIP

90467-26189-00

$7.49

5

THERMOSTAT

3B4-12411-01-00

$46.99

6

COVER, THERMOSTAT

1S3-12413-00-00

Unavailable

7

GASKET 256113960000

90430-06014-00

Unavailable

8

BOLT, FLANGE

95022-06010-00

$5.60

9

BOLT, FLANGE

95022-06020-00

$3.62

10

BOLT, FLANGE

95022-06045-00

$4.29

11

O-RING (132)

93210-41042-00

$7.49

12

RADIATOR ASSY

1HP-E2460-01-00

$298.99

13

BLOWER ASSY

3B4-12405-01-00

Unavailable

14

PLATE

1AA-12535-00-00

$14.49

15

BOLT(3JP)

97017-06010-00

$3.76

16

WASHER(6TA)

92907-06600-00

Unavailable

17

CAP, RADIATOR

4FL-12462-00-00

Unavailable

18

GROMMET(2GH)

90480-12475-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

WASHER

90209-06012-00

Unavailable

21

COLLAR

90387-06113-00

Unavailable
