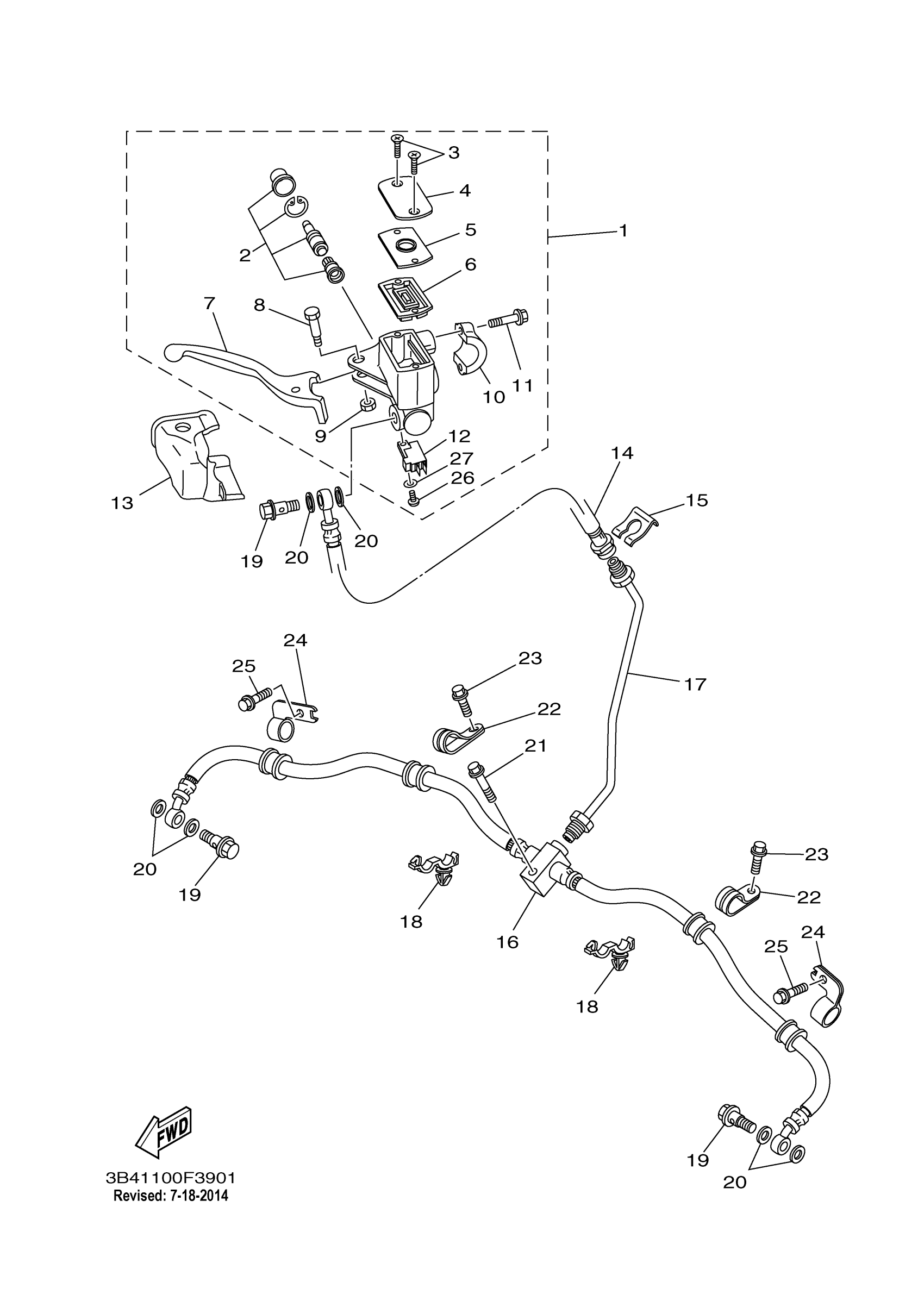

Yamaha YFM5FGPSEY (GRIZZLY 550 FI EPS 4WD SPECIAL EDITION) 34D8 2009 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3B4-2583T-00-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

CAP, RESERVOIR

3GM-25852-22-00

$63.99

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$10.99

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

7

LEVER 2

3B4-83922-00-00

Unavailable

8

BOLT, LEVER

3B4-2589F-00-00

Unavailable

9

NUT, U(4NK)

95604-06100-00

$8.49

10

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

11

BOLT

5EB-26332-00-00

$7.99

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

13

COVER, HANDLE LEVER 2

3B4-2637A-01-00

$8.99

14

HOSE, BRAKE 1

1HP-F5872-00-00

$25.99

15

CIRCLIP

2GU-25866-00-00

$9.99

16

HOSE, BRAKE 2

1HP-F5873-01-00

Unavailable

17

PIPE, BRAKE

1HP-F5871-00-00

Unavailable

18

CLAMP

90464-20010-00

Unavailable

19

BOLT, UNION

90401-10015-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

BOLT, FLANGE

95822-06025-00

Unavailable

22

HOLDER, BRAKE HOSE

3B4-25886-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

HOLDER, BRAKE HOSE 2

3B4-25876-10-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

SCREW, PAN HEAD

98511-04012-00

Unavailable

27

WASHER, PLAIN (646)

92990-04600-00

Unavailable
