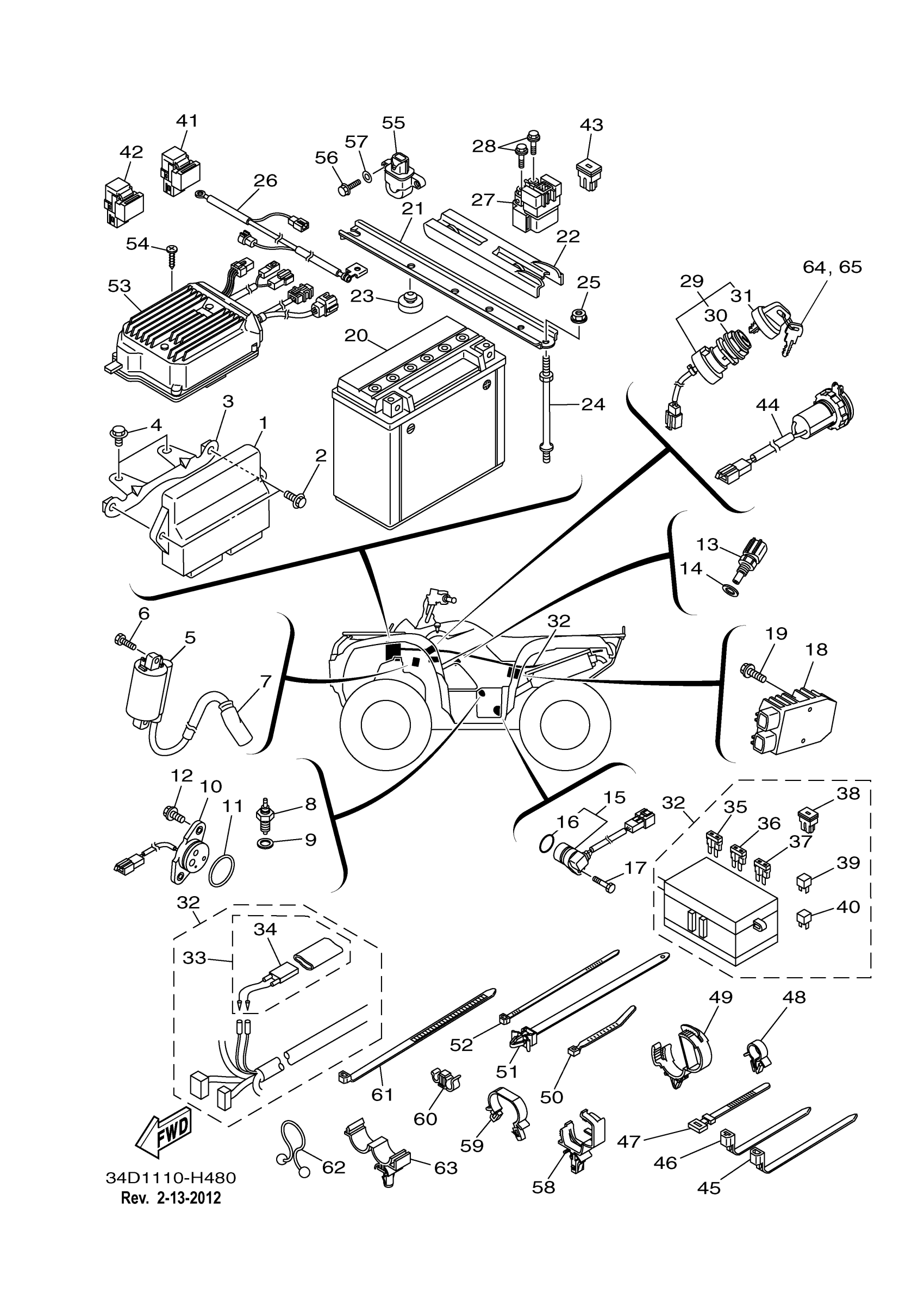

Yamaha YFM5FGPHZ (550 FI EPS 4WD HUNTER) 34DG 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

28P-8591A-00-00

$1,060.99

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BRKT., CONTROL UNIT

28P-2830X-00-00

$9.99

4

BOLT, FLANGE

95817-06012-00

$1.43

5

IGNITION COIL ASSY

1D7-H2310-05-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

PLUG CAP ASSY

28P-82370-00-00

$65.99

8

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$75.99

11

O-RING (371)

93210-29196-00

$8.49

12

BOLT, WITH WASHER

90119-06137-00

$8.49

13

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

14

GASKET(2GH)

90430-12202-00

$9.49

15

SENSOR, SPEED

3B4-83755-01-00

$132.99

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

21

BRACKET, BATTERY

1HP-H2128-00-00

Unavailable

22

COVER, BATTERY

3B4-82129-00-00

Unavailable

23

PAD, SEAT

22W-24741-00-00

Unavailable

24

SCREW, FITTING

3B4-82133-10-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

WIRE, MINUS LEAD

34D-82116-01-00

Unavailable

27

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

Unavailable

28

BOLT, FLANGE

95022-06008-00

Unavailable

29

MAIN SWITCH ASSY

28P-82510-02-00

Unavailable

30

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

31

CAP, KEY

3HN-82579-00-00

Unavailable

32

WIRE HARNESS ASSY

34D-82590-01-00

Unavailable

33

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

34

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

35

FUSE (15A)

67F-82151-50-00

Unavailable

36

FUSE

5JJ-82151-20-00

Unavailable

37

FUSE (5A)

67F-82151-20-00

Unavailable

38

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

39

DIODE ASSY

4WA-81980-00-00

Unavailable

40

DIODE ASSY

5VG-81980-00-00

Unavailable

41

RELAY ASSY

5DM-81950-01-00

Unavailable

42

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

43

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

44

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

45

CLAMP(4FM)

90464-15195-00

Unavailable

46

CLAMP(4FM)

90464-15195-00

Unavailable

47

BAND, SWITCH CORD

437-83936-01-00

Unavailable

48

CLAMP(3XV)

90464-15157-00

Unavailable

49

CLAMP(4AP)

90464-20181-00

Unavailable

50

CLAMP

90465-10098-00

Unavailable

51

CLAMP(2TV)

90464-10112-00

Unavailable

52

CLAMP

5Y9-12491-00-00

Unavailable

53

POWER STRG. CONT. UNIT ASSY

3B4-859A0-10-00

Unavailable

54

SCREW, BIND (J17)

98980-06020-00

Unavailable

55

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

56

BOLT(6A1)

97095-05016-00

Unavailable

57

WASHER, PLAIN (646)

92990-05600-00

Unavailable

58

CLAMP(4SV)

90464-20237-00

Unavailable

59

CLAMP(4NK)

90464-24230-00

Unavailable

60

CLAMP

90464-09013-00

Unavailable

61

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

62

CLAMP (3Y2)

90464-16039-00

Unavailable

63

CLAMP

90464-16012-00

Unavailable
