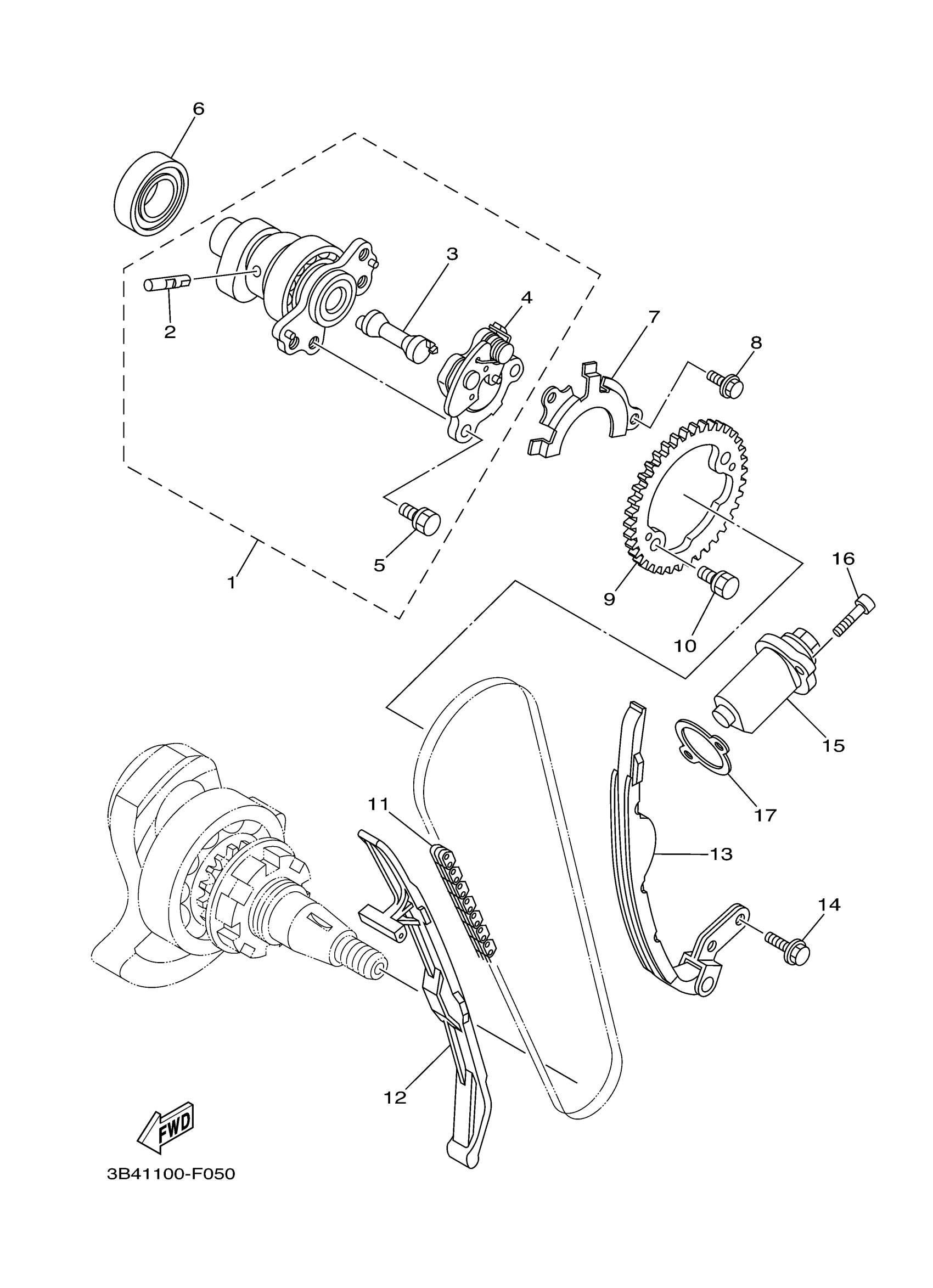

Yamaha YFM5FGPHZ (550 FI EPS 4WD HUNTER) 34DG 2010 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

3B4-12170-01-00

Unavailable

2

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$17.91

3

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$49.64

4

DECOMPRESSION ASSY

1S3-12280-01-00

$88.15

5

BOLT, FLANGE

90105-07004-00

$4.66

6

BEARING

93306-07209-00

$35.37

7

PLATE

5VK-1111F-00-00

$12.22

8

BOLT, FLANGE

95022-06012-00

$2.80

9

SPROCKET, CAM CHAIN

1S3-12176-00-00

$60.01

10

BOLT, FLANGE

90105-07004-00

$4.66

11

CHAIN

94591-57126-00

$31.85

12

GUIDE, STOPPER 1

3B4-12231-01-00

$25.00

13

GUIDE, STOPPER 2

3B4-12241-01-00

$45.39

14

BOLT, FLANGE

95022-06020-00

$3.11

15

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$114.10

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
