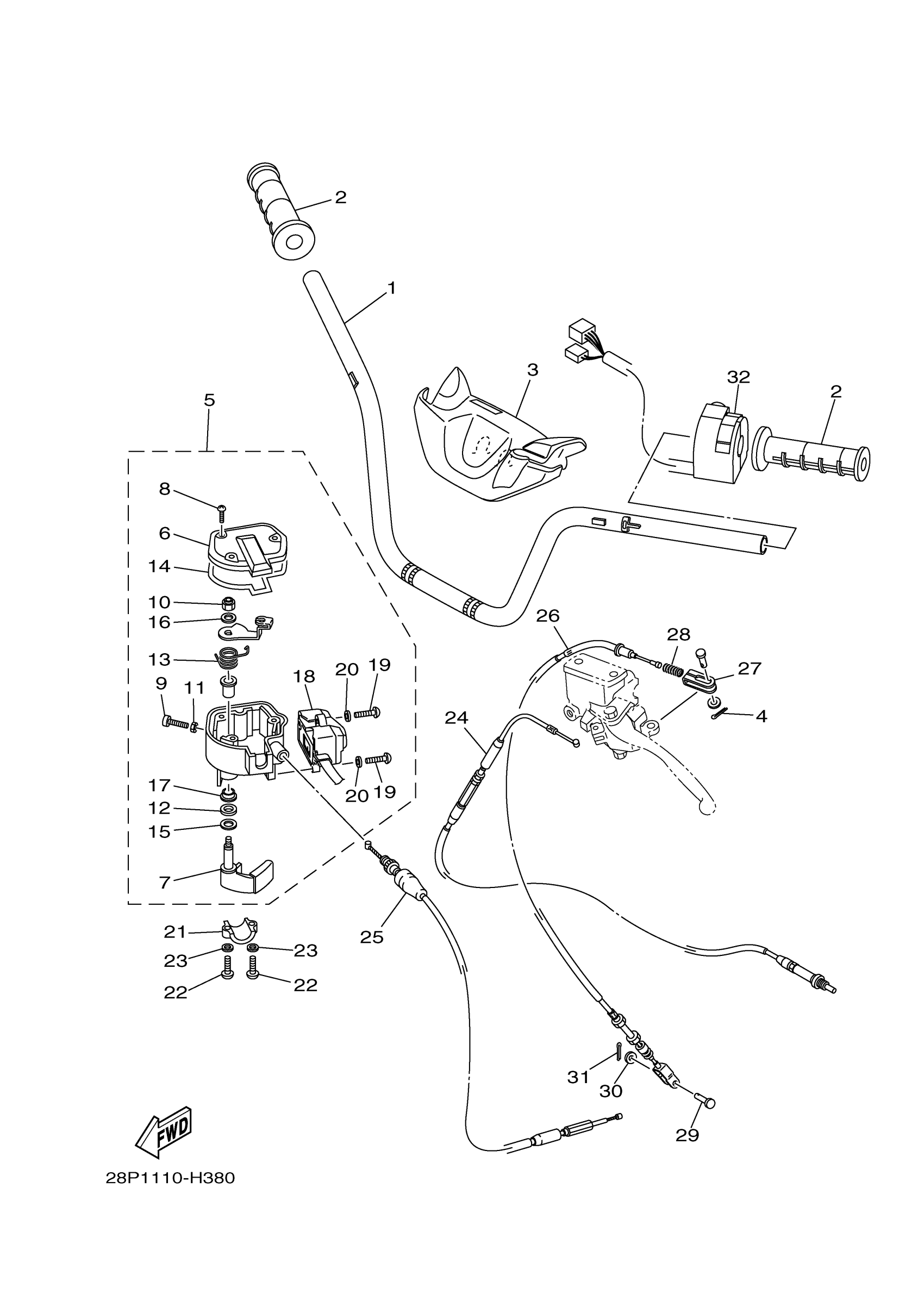

Yamaha YFM5FGPHD (GRIZZLY 550 EPS 4WD HUNTER) 1HSK 2013 STEERING HANDLE CABLE Diagram

HANDLEBAR

1HP-F6111-01-00

Unavailable

GRIP

5FU-F6241-10-00

$17.49

PROTECTOR, HANDLEB

1HP-F6124-00-00

$106.99

PIN, COTTER

91490-16020-00

Unavailable

THROTTLE LEVER ASS

1HP-26250-04-00

Unavailable

CAP, GEAR

28P-2628F-00-00

$35.99

LEVER, THROTTLE

28P-2625G-01-00

$55.99

SCREW(3HE)

90149-04278-00

$2.39

SCREW, PAN HEAD

98517-05020-00

$4.25

NUT, U

95617-05100-00

$9.49

NUT, HEXAGON SMALL

95317-05700-00

$8.49

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

SPRING

1NV-26304-00-00

$11.99

GASKET

28P-2628G-00-00

$7.99

WASHER

1NV-26129-00-00

$6.99

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

COLLAR

1NV-2625K-00-00

Unavailable

SWITCH, HANDLE 1

1HP-83976-06-00

Unavailable

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

Unavailable

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER, PLAIN (646)

92990-05600-00

Unavailable

CABLE, CONTROL 2

3B4-2637F-10-00

Unavailable

CABLE, THROTTLE 1

3B4-26311-20-00

Unavailable

CABLE, BRAKE

3B4-26341-00-00

Unavailable

JOINT, CABLE

3B4-26347-00-00

Unavailable

SPRING, CONPRESSION (7R4)

90501-08665-00

Unavailable

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

WASHER(6TA)

92907-06200-00

Unavailable

PIN, COTTER (648)

91490-20015-00

Unavailable

SWITCH, HANDLE 4

28P-83972-01-00

Unavailable
