Description

Price

1

BRACKET, FOOTREST

1HP-F7452-00-00

$58.99

2

BRACKET, FOOTREST

1HP-F7462-00-00

$61.99

3

BOLT, FLANGE

95817-08012-00

$5.49

4

COVER 1

1HP-F7453-00-00

$67.99

5

SEAL 1

3B4-21732-00-00

$10.99

6

SEAL 3

1HP-F2875-01-00

$6.99

7

ARM 1

5UH-F741A-10-00

$5.49

8

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

9

COVER 3

1HP-F8239-00-00

Unavailable

10

SEAL 2

1HP-F1735-00-00

$9.99

11

BOLT

90109-06172-00

$7.49

12

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

13

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

14

WASHER, PLATE

90201-06078-00

$5.60

15

NUT, NYLON

95707-06300-00

$3.50

16

COVER 2

1HP-F7463-00-00

Unavailable

17

ARM 1

5UH-F741A-10-00

$5.49

18

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

19

BOLT

90109-06172-00

$7.49

20

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

21

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

22

WASHER, PLATE

90201-06078-00

$5.60

23

NUT, NYLON

95707-06300-00

$3.50

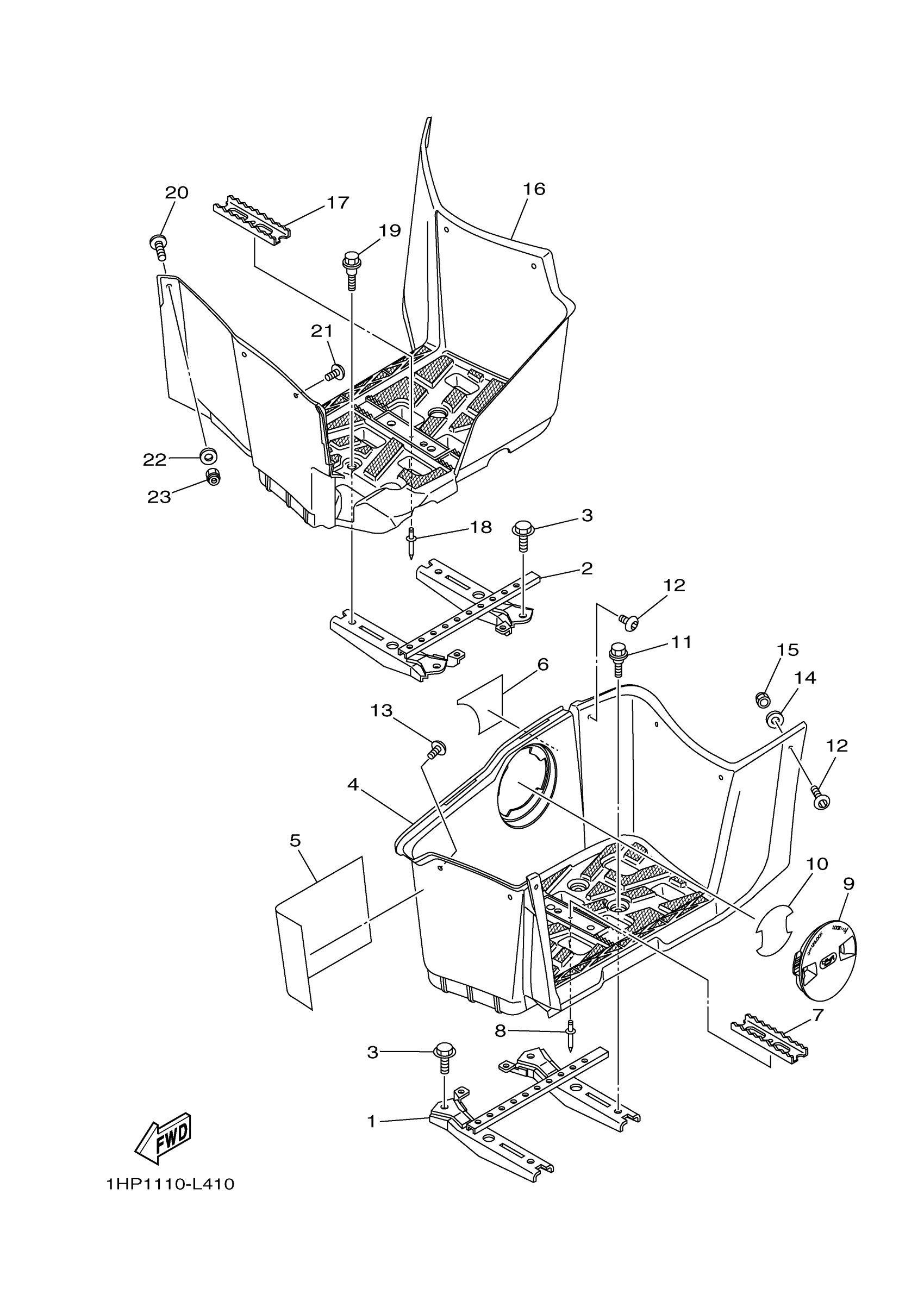

Yamaha YFM5FGPHB (GRIZZLY 550 EPS 4WD HUNTER) 1HS5 2012 STAND FOOTREST Diagram

BRACKET, FOOTREST

BRACKET, FOOTREST

BOLT, FLANGE

COVER 1

SEAL 1

SEAL 3

ARM 1

RIVET, BLIND(EU0,USA)

COVER 3

SEAL 2

BOLT

BOLT,HEX SKT HEAD

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

NUT, NYLON

COVER 2

ARM 1

RIVET, BLIND(EU0,USA)

BOLT

BOLT,HEX SKT HEAD

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

NUT, NYLON
