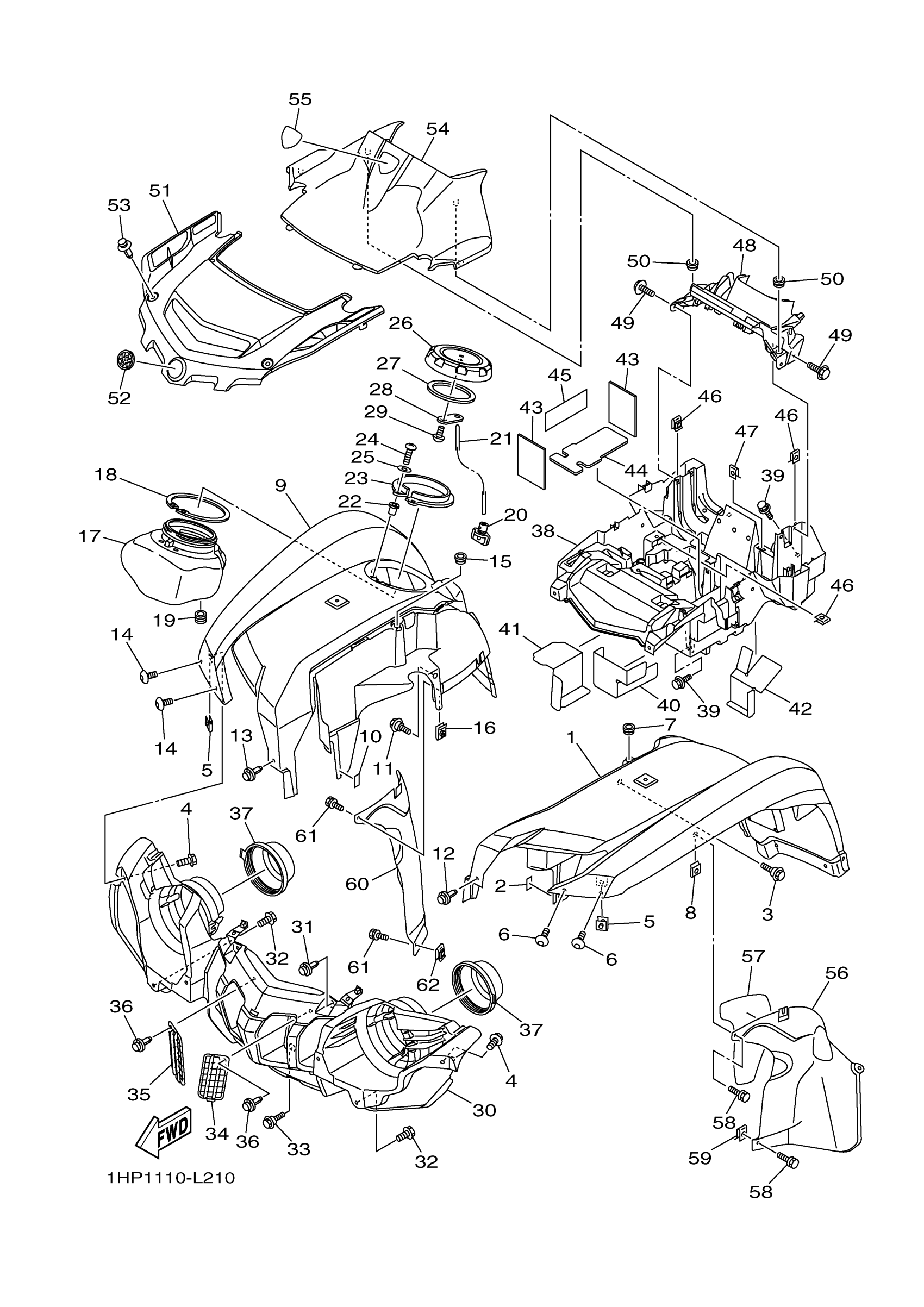

Yamaha YFM5FGPHB (GRIZZLY 550 EPS 4WD HUNTER) 1HS5 2012 FRONT FENDER Diagram
#
1
FRONT FENDER ASSY
1HP-F1500-50-00
Unavailable
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
9
FRONT FENDER COMP.
1HP-F1501-00-00
Unavailable
16
NUT, SPRING(4ES)
90183-06069-00
Unavailable
17
BOX 1
1HP-F838K-00-00
Unavailable
18
SEAL, BOX 1
3B4-2838M-00-00
Unavailable
19
GROMMET
90480-13004-00
Unavailable
20
PLUG, DRAIN
3B4-215A1-00-00
Unavailable
21
STOPPER, OPEN
3B4-2845L-00-00
Unavailable
22
NUT(1KT)
90179-05523-00
Unavailable
23
HOLDER
3B4-2839N-01-00
Unavailable
24
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
25
WASHER, PLAIN (646)
92990-05600-00
Unavailable
26
CAP
1HP-F151B-00-00
Unavailable
27
SEAL
3B4-28307-00-00
Unavailable
28
PLATE 2
3B4-28487-00-00
Unavailable
29
SCREW, TAPPING (GLOVE BOX)
90164-05800-00
Unavailable
30
GRILLE, FRONT
1HP-F8309-00-00
Unavailable
31
RIVET
90269-07010-00
Unavailable
34
GRILL, AIR INTAKE 1
3B4-2837N-00-00
Unavailable
35
GRILL, AIR INTAKE 2
3B4-2837R-00-00
Unavailable
36
RIVET(4PH)
90269-07077-00
Unavailable
37
CAP
3B4-28349-00-00
Unavailable
38
BOX, BATTERY 1
1HP-H212B-02-00
Unavailable
39
BOLT, WITH WASHER
90119-06152-00
Unavailable
40
INSULATOR 1
1HP-H253E-01-00
Unavailable
41
INSULATOR 2
1HP-H253F-00-00
Unavailable
42
INSULATOR
1HP-H254E-01-00
Unavailable
43
INSU.
3B4-8233W-10-00
Unavailable
44
SEAT, BATTERY
3B4-82122-00-00
Unavailable
45
DAMPER
1HP-H2176-01-00
Unavailable
46
NUT, SPRING(4ES)
90183-06069-00
Unavailable
47
NUT, SPRING
90183-05008-00
Unavailable
48
PANEL, CONSOLE 1
1HP-F837L-00-00
Unavailable
49
BOLT, WITH WASHER
90119-06152-00
Unavailable
50
GROMMET(4FU)
90480-13567-00
Unavailable
51
PANEL, FRONT
1HP-F3391-00-00
Unavailable
52
TUNING FORK MARK
5FU-F175B-01-00
Unavailable
53
RIVET
90269-07010-00
Unavailable
54
LID
1HP-F8313-00-00
Unavailable
55
EMBLEM 3D
3B4-26232-01-00
Unavailable
56
FENDER, INNER
1HP-F1552-00-00
Unavailable
57
SEAL 1
1HP-F1575-01-00
Unavailable
58
BOLT, WITH WASHER
90119-06152-00
Unavailable
59
NUT, SPRING(4ES)
90183-06069-00
Unavailable
60
FENDER, INNER 2
1HP-F1553-00-00
Unavailable
61
BOLT, WITH WASHER
90119-06152-00
Unavailable
62
NUT, SPRING(4ES)
90183-06069-00
Unavailable
