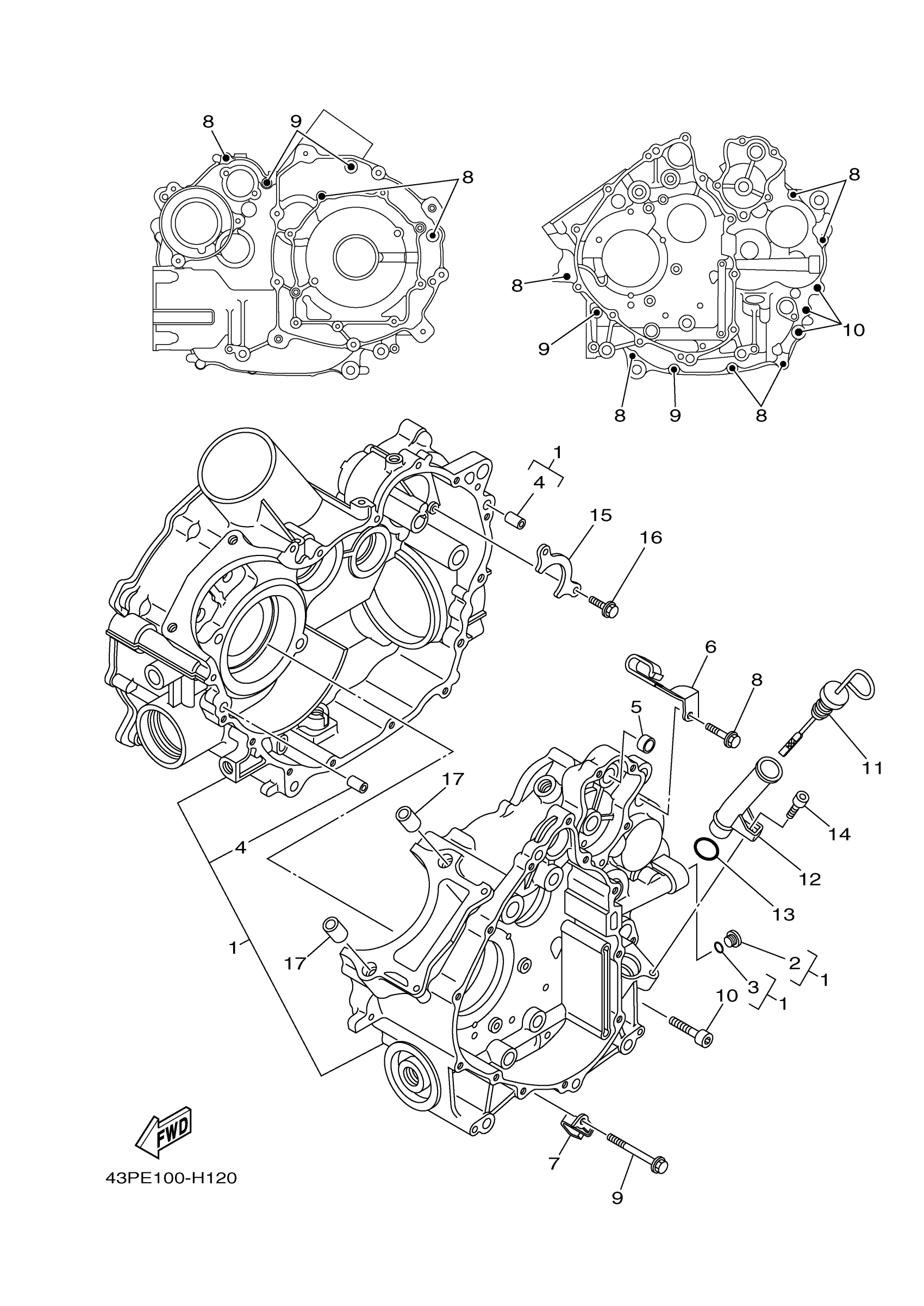

Yamaha YFM5FGPHA (GRIZZLY 550 EPS 4WD HUNTER) 34DP 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3B4-15100-27-00

$1,573.99

2

PLUG

36Y-15189-01-00

Unavailable

3

O-RING(1L9)

93210-16325-00

$7.49

4

PIN, DOWEL(2VG)

99530-10116-00

$4.25

5

SPACER, CAM SHAFT

3B4-18581-00-00

$39.99

6

CLAMP

90462-16003-00

Unavailable

7

CLAMP

90462-08049-00

$3.28

8

BOLT, FLANGE

95022-06030-00

$3.72

9

BOLT, FLANGE

95022-06060-00

$8.49

10

BOLT,SOCKET

91314-08040-00

$8.49

11

PLUG, OIL LEVEL

3B4-15362-01-00

$25.99

12

PIPE, OIL

3B4-15112-02-00

$56.99

13

O-RING (26H)

93210-21631-00

$7.49

14

BOLT,SOCKET

91317-06012-00

$8.49

15

PLATE, BEARING COVER

3B4-15388-00-00

$6.99

16

BOLT, FLANGE

95022-06020-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable
