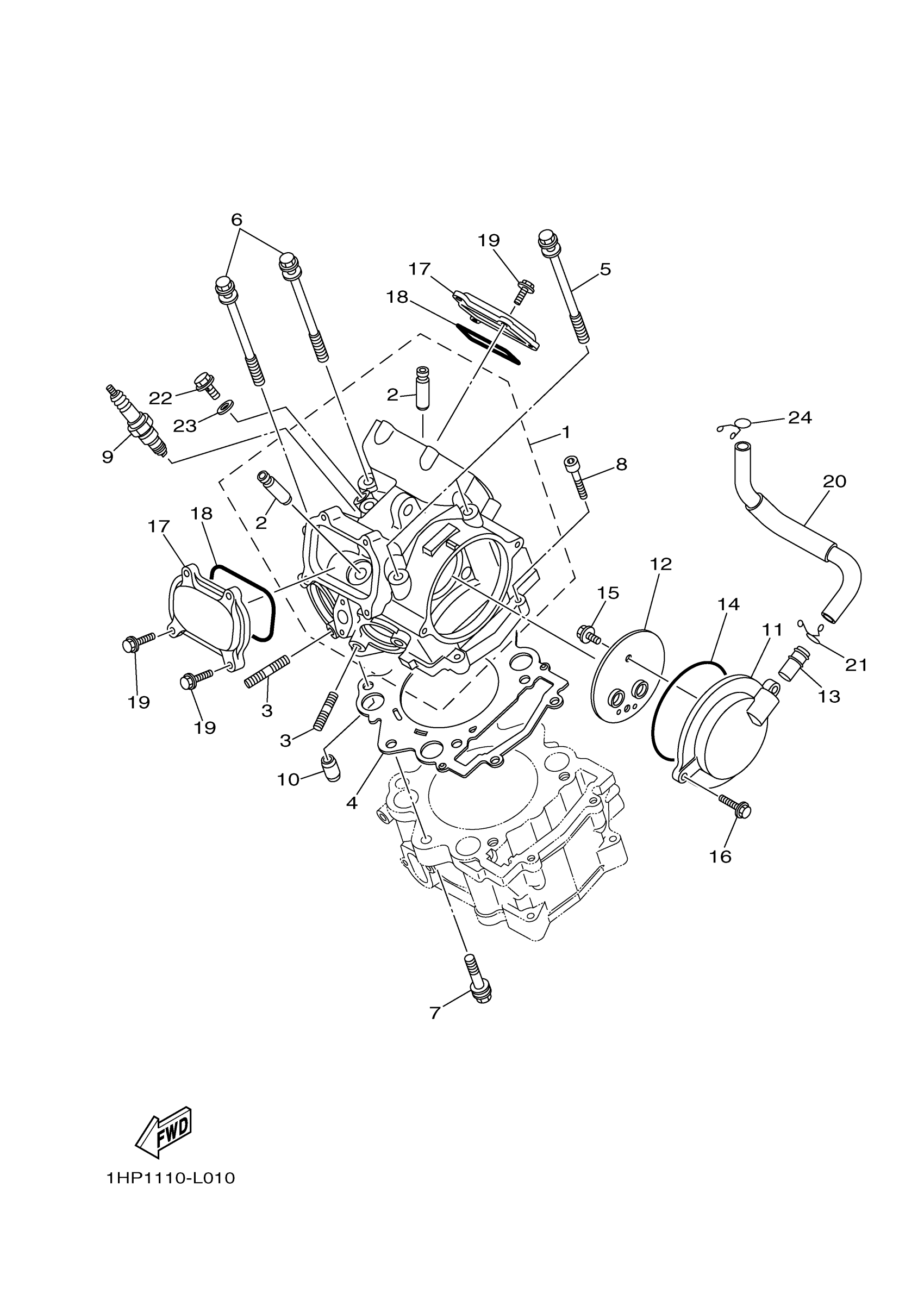

Yamaha YFM5FGPDL (GRIZZLY 550 EPS 4WD) 1HSG 2013 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

28P-11102-00-00

$900.64

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$41.54

3

BOLT, STUD

95612-08625-00

$4.37

4

GASKET, CYLINDER HEAD 1

28P-11181-00-00

$35.56

5

BOLT

90109-09003-00

$8.51

6

BOLT

90109-09002-00

$8.51

7

BOLT

90109-09005-00

$6.90

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

9

LMAR6A9 NGK SPLUG 10PK

LMA-R6A90-00-00

$11.84

10

PIN, DOWEL(4XL)

93612-16254-00

$4.07

11

COVER, CYLINDER HEAD SIDE 1

3B4-11185-00-00

$27.47

12

PLATE, BREATHER

3B4-11165-10-00

$5.23

13

PIPE, BREATHER 2

371-11167-01-00

$9.67

14

O-RING (70R)

93210-96601-00

$9.99

15

BOLT, FLANGE

95022-06012-00

$2.80

16

BOLT, FLANGE

95022-06020-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

Unavailable

18

O-RING (14X)

93210-78544-00

Unavailable

19

BOLT, FLANGE

95022-06020-00

Unavailable

20

PIPE, BREATHER 1

3B4-11166-01-00

Unavailable

21

CLIP

90467-140A4-00

Unavailable

22

BOLT, UNION

90401-08004-00

Unavailable

23

GASKET

90430-08119-00

Unavailable

24

CLIP

90467-150A2-00

Unavailable
